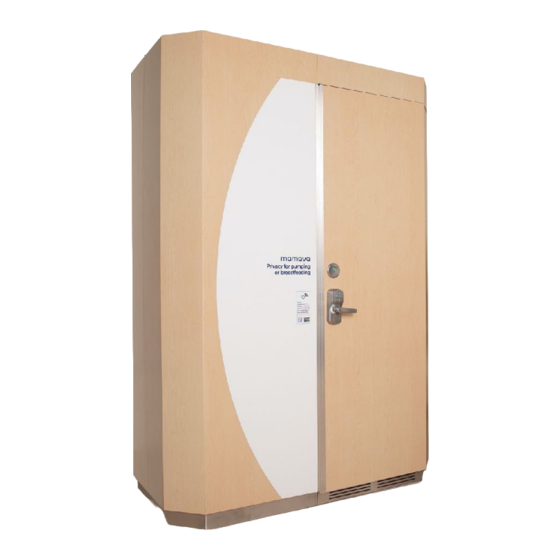

Solo Assembly Instructions
People required: 2
Average time required: 2 hours
For replacement parts,
questions or concerns, contact:
802.347.2111
customercare@mamava.com
Version: SOLO V1.1
01/07/2021
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Solo and is the answer not in the manual?

Questions and answers

Related Manuals for Mamava Solo

Summary of Contents for Mamava Solo

  • Page 1 Solo Assembly Instructions People required: 2 Average time required: 2 hours For replacement parts, questions or concerns, contact: 802.347.2111 customercare@mamava.com Version: SOLO V1.1 01/07/2021 Page 1...
  • Page 2 Page 2...
  • Page 3 Table of Contents Floor leveling and placement (Page 5) Wiring: Roof Pans (Page 10) Step 1..Step 22..Step 2..Step 23..Step 3..Step 24..Step 4..Wiring: Beauty Panel (Page 11) Seat and Seat Posts (Page 6) Step 25..Step 5..
  • Page 4 PARTS LIST PART NUMBER DESCRIPTION SOLO-A100 FLOOR PAN SOLO-A104 SEAT POST F209 SOLO-C100 BEAUTY PANEL SOLO-D100 FRONT LEFT WALL PANEL F209 SOLO-D200 BACK LEFT WALL PANEL SOLO-D300 BACK RIGHT WALL PANEL SOLO-D400 DOOR F302 SOLO-E100 SEAT D200 F302 SOLO-F209 PERF PAN...
  • Page 5 FLOOR LEVELING AND PLACEMENT 1. Place provided 4' level in desired location. Ensure that there are no gaps between the bottom of the level and the floor that are greater than 1/8", and that the site is level (the indicating bubble on the level should be between the center marks).
  • Page 6 SEAT AND SEAT POSTS 5. Slide Seat Posts into Seat Post Brackets, fasten as shown. (4) M8 X 1.25 X 25mm screws **Note: Seat Posts are universal and can go into either Seat Post Bracket. SEAT E100 6. Place Seat onto Seat Post Brackets by aligning Seat Flange Screws (Detail A) with the teardrop holes (Detail B) in the Seat Posts.
  • Page 7 LEFT WALL PANELS 8. Set Front Left Wall Panel onto notched flange BACK LEFT WALL PANEL in Floor Pan. Wall Panels should slide onto the D200 Floor Pan. If not, check alignment and try again. FRONT LEFT WALL PANEL 9. Set Back Left Wall Panel onto notched flange D100 in Floor Pan.
  • Page 8 BACK RIGHT WALL PANEL AND SHELF 14. Set Back Right Wall Panel onto notched flange in Floor Pan. BACK RIGHT WALL PANEL D300 15. Rotolock back panels together using provided allen key. 16. Place Rotolock Caps over upper three holes. (3 caps) 17.
  • Page 9 HEADER AND ROOF PANS MIDDLE ROOF PAN 19. Pop Header Brackets into Wall Panel Bracket Slots by pushing F301 downward on Header (Detail D). You may need to pull the Wall Panel and Header together. Rotolock Header to Front Left Wall Panel and Back Right Wall Panel with provided allen key.
  • Page 10 WIRING: ROOF PANS PCD POWER CORD 22. Connect Roof Pan Wire Harness to Front Left Wall Panel Wire. 23. Connect Roof Pan Wire Harness to Back Right Wall Panel Wire. 24. Plug PCD Power Cord into PCD BACK RIGHT and flip up antennas. WALL PANEL WIRE ROOF PAN WIRE HARNESS...
  • Page 11 WIRING: BEAUTY PANEL 25. Remove Wire Grommet Cover from back of unit and run GFCI Wire into unit through Back Left Wall Panel. 26. Connect GFCI wire to Beauty Panel Junction Box and replace Wire Grommet Cover. 27. Connect PCD Power Cord to Beauty Panel Junction Box.
  • Page 12 ROOF AND PERF PANS PERF PAN 32. Fasten Roof Pans to top of Wall Panels, as shown in Detail E. F209 (8) #8 X 3/4" Pan-head screws 33. Drop both Perf Pans into roof opening, carefully guiding the PCD antennas through the holes in the Perf Pans. PERF PAN F209 34.
  • Page 13 DOOR 35. Hang Door as shown, ensuring door is open enough to clear the Header. 36. Connect door closer arms. Ensure the door latches but doesn't slam. Adjust tension and speed screws if needed. 37. Attach both door handles to door by snapping them into the exposed handle holes.
  • Page 14 LEVELING **Loosen all screws highlighted in red. 39. Remove Beauty Panel by turning the rotolocks with provided allen key. 40. Loosen the screws that attach the Seat Posts to the Wall Panels. SEAT E100 (4) M8 X 1.25 X 25mm screws 41.
  • Page 15 By signing the below, certifies the understanding and satisfaction with the pod(s) installation. Any installation changes and/or requests submitted to Mamava post installation may be subject to service fees. Mamava Customer Experience...
