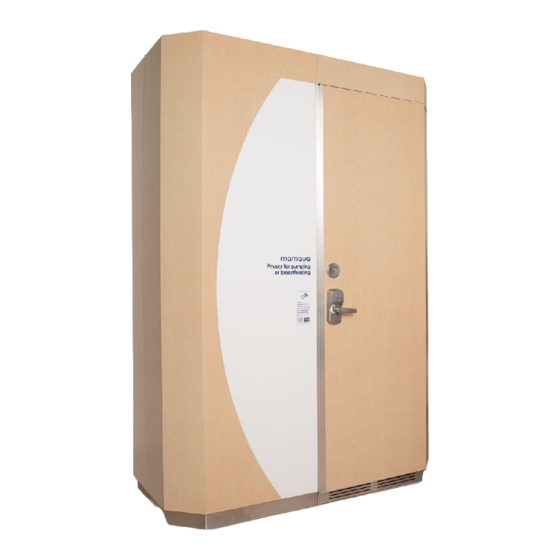

Mamava Solo Assembly Manual

Hide thumbs Also See for Solo:
Table of Contents

Advertisement

Quick Links

Download this manual
| Solo and Solo Base
Assembly
Assembly
Guide

Table of Contents

Tools + Hardware.......................................................................................................................................................................................................................... 2
Parts .................................................................................................................................................................................................................................................. 3
Warnings ......................................................................................................................................................................................................................................... 4
Shipping Crate ............................................................................................................................................................................................................................. 5
Base ................................................................................................................................................................................................................................................... 6
Wall Plug Wiring ........................................................................................................................................................................................................................... 8
Wall Panels + Door ...................................................................................................................................................................................................................... 9
Roof Frame ................................................................................................................................................................................................................................... 15
Wiring + Lighting ....................................................................................................................................................................................................................... 18
Roof Panel .................................................................................................................................................................................................................................... 20
Seat.................................................................................................................................................................................................................................................. 21
Shelf + Laptop Desk ................................................................................................................................................................................................................. 23
Notes .............................................................................................................................................................................................................................................. 28
service@mamava.com
(802) 347-2111
Mamava Solo
Mamava, the leading expert in lactation space design, provides dignifi ed lactation
accommodations and breastfeeding resources for employers and organizations
around the world. Our mission is to create a healthier society through
infrastructure and support for breastfeeding.
Certifi ed B Corporation, Women-Owned Small Business (WOSB), Assembled in U.S.A.
The curved lactation suite design is a TM/SM of Mamava, Inc. All rights reserved.
Mamava Solo Base
It should take 2 people approximately
1.5 hours to assemble this Mamava pod.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Solo and is the answer not in the manual?

Questions and answers

Related Manuals for Mamava Solo

Summary of Contents for Mamava Solo

  • Page 1: Table Of Contents

    Our mission is to create a healthier society through infrastructure and support for breastfeeding. Certifi ed B Corporation, Women-Owned Small Business (WOSB), Assembled in U.S.A. The curved lactation suite design is a TM/SM of Mamava, Inc. All rights reserved.

  • Page 2: Tools + Hardware

    5/32” hex key Phillips Pan Head Screw (16980) (11290) | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 180 Battery St, Suite 210, Burlington, VT 05401 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 3: Parts

    Caster Wheels (optional) 17180 (Solo) 16355 / 17180 14915 14955 14980 17160 16765 16595 16615 16710 16700 16770 16705 15450 16715 16350 15015 15065 /17175 | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 4: Warnings

    Electrical ratings for the pod: Branch Circuit: 120 vAC/ 15 A / 50-60 Hz Pod: 12 vDC / 7 A Outlet: 120 vAC / 13.3 A | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 5: Shipping Crate

    Set aside the end panels. 3. Remove the screws from the side panels of the crate. Set aside the side panels. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 6: Base

    Base Assemble the Mamava Solo pod as close to its fi nal location as possible. Once a location is selected, T I P : ensure the fl oor is level and there aren’t any gaps greater than 1” between the bottom of the level and the fl oor.
  • Page 7 Set the base back on the fl oor and ensure it is level and stable. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 8: Wall Plug Wiring

    2’ of cord inside. Leave the GFCI plug outside the pod. 2. Check that the GFCI plug can reach the nearby outlet, but don’t plug in yet. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 9: Wall Panels + Door

    (16370). If the bolt doesn’t tighten, you may need to adjust the alignment of the wall panel. Loosely tighten for now, you’ll secure later. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 10 M8 x 55 fl ange head bolts (16370). Start from the top left to ensure the pod wall is stable. Loosely tighten for now, you’ll secure later. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 11 Use a Phillips head screwdriver to attach in place with (2) #8 x .75” Phillips pan head screws (11290). | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 12 M8 x 55 fl ange head bolts (16370). Start from the upper right to stabilize the pod. Loosely tighten for now, you’ll secure later. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 13 | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 14 Keep the door propped open. It may be helpful to use the deadbolt to do so. Loosely tighten for now, you’ll secure later. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 15: Roof Frame

    Attach the two antennas to the top of the Pod Control Device (PCD), with the shorter antenna closest to the power cord. Once secured, keep the antennas upright. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 16 (6) M8 x 55 fl ange head bolts (16370). Loosely tighten for now, you’ll secure later. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 17 Then tuck them into the channel. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 180 Battery St, Suite 210, Burlington, VT 05401 220616 220616...

  • Page 18: Wiring + Lighting

    3. Snap the wire cover into the back left corner and slide it up until it touches the roof frame. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 19 6. Connect the two wires in the left corner of the light fi xture. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 20: Roof Panel

    (Make sure your hands are clean before handling the roof.) | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 21: Seat

    3. Snap the seat frame front into place with the blue edge facing down. 4. Tighten the (4) M8 x 35 button head cap screws (16840) on the seat base. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 22 6. Position the assembled seat over the base frame, align the corners and plastic connectors, and press down fi rmly to snap into place. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 23: Shelf + Laptop Desk

    (4) M8 x 35 button head cap screws (16840). Start with the outside holes fi rst, then fi nish with the center holes. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 24 GFCI cord. Insert the black male from the side of the outlet box into the power supply. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 25 Use a 5 mm hex key to attach the laptop desk to the right wall panel with (4) M8 x 20 button head cap screws (16835). | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 26 8. Insert the power plug on the exterior of the pod into the GFCI wall outlet and press the reset button on the plug. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...
  • Page 27 5/32” hex key in the top of the hinge, push down, and rotate clockwise. To increase the door closure speed, rotate counterclockwise. | Solo service@mamava.com • (802) 347-2111 • 180 Battery St, Suite 210, Burlington, VT 05401 220616...

  • Page 28: Notes

    D O N ’ T F O R G E T If this pod is being listed on the Mamava app—so breastfeeding parents can find the space using Mamava’s Smart Access—please send photos of your installed pod to customersuccess@mamava.com. Notes Need assistance? Visit help.mamava.com or contact service@mamava.com •...
  • Page 29 Stay in the pod for a minimum of one minute. Tell Mamava Your Pod is Ready Store your Mamava owner's manual guide, brass key, and small deadbolt key in a safe location. If you require assistance, please contact us at (802) 347-2111 or service@mamava.com...
