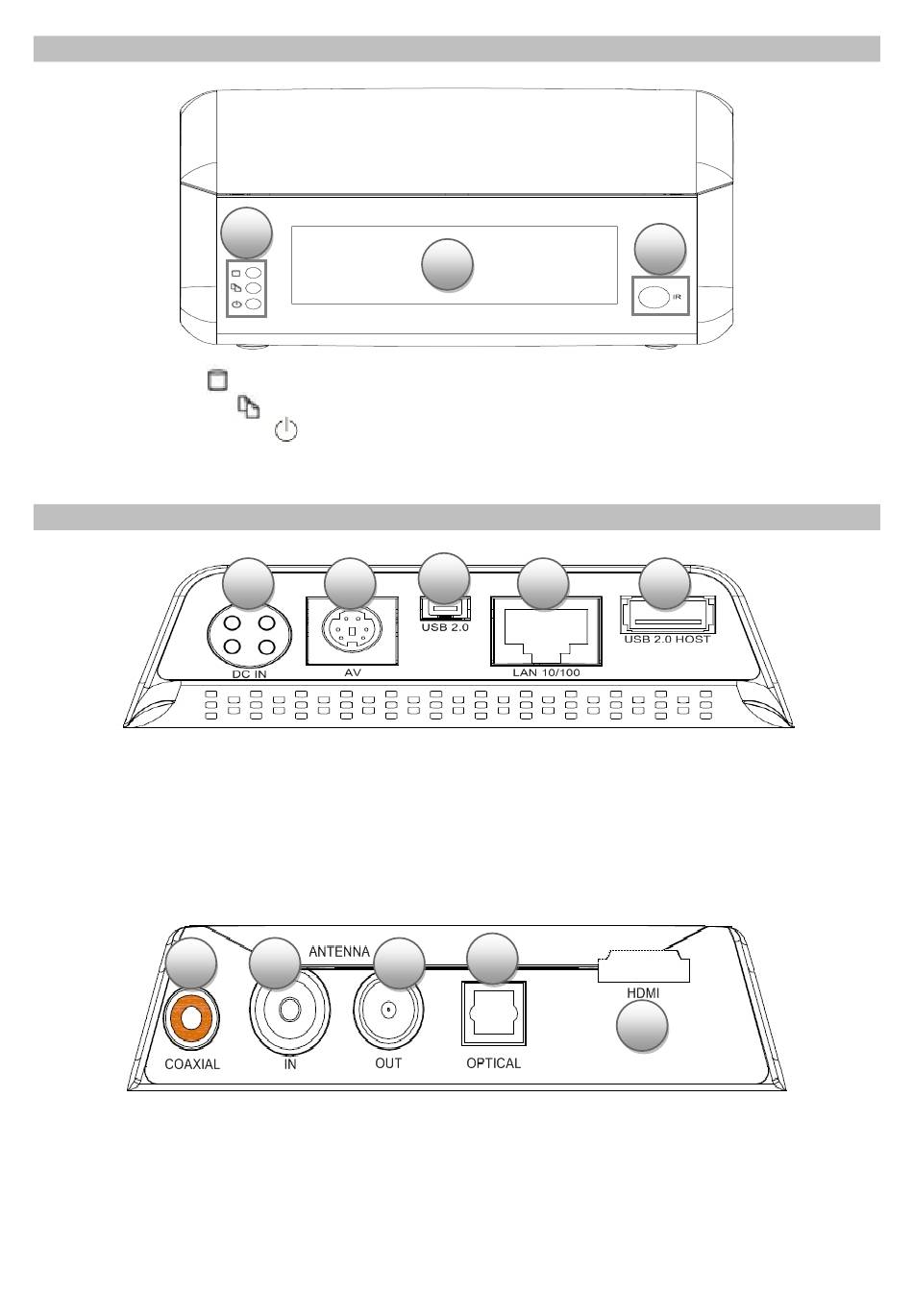

Front panel

1. LED "COPY" :
LED "HDD" :
LED "STANDBY" :
2. VFD DISPLAY : Shows some information (menu, time...)
3. IR : To receive the remote control signal

Rear panel

1. DC IN : To connect the power supply adapter
2. AV : To connect the AV cable (from the DivaBox to the TV)
3. USB : To connect your DivaBox to the PC or MAC
4. LAN 10/100 : To connect the DivaBox to the network
5. USB HOST : Allows to read all the contents stocked in the USB device
1
1. COAXIAL : To connect a S-PDIF cable (coaxial)
2. ANTENNA IN : To connect an antenna cable from the antenna wall socket to the DivaBox
3. ANTENNA OUT : To connect an antenna cable from the DivaBox to the TV
4. OPTICAL : To connect a S-PDIF cable (optical)
5. HDMI OUT : To connect he HDMI cable to your TV
Quick Installation Guide
1
Flicker to announce the copy of files
Flicker to announce an activity on a peripheral
Shows the unit state (Turn on/Turn off)
1 2
2 3
2
3
4
4
DivaBox
3
5
5
