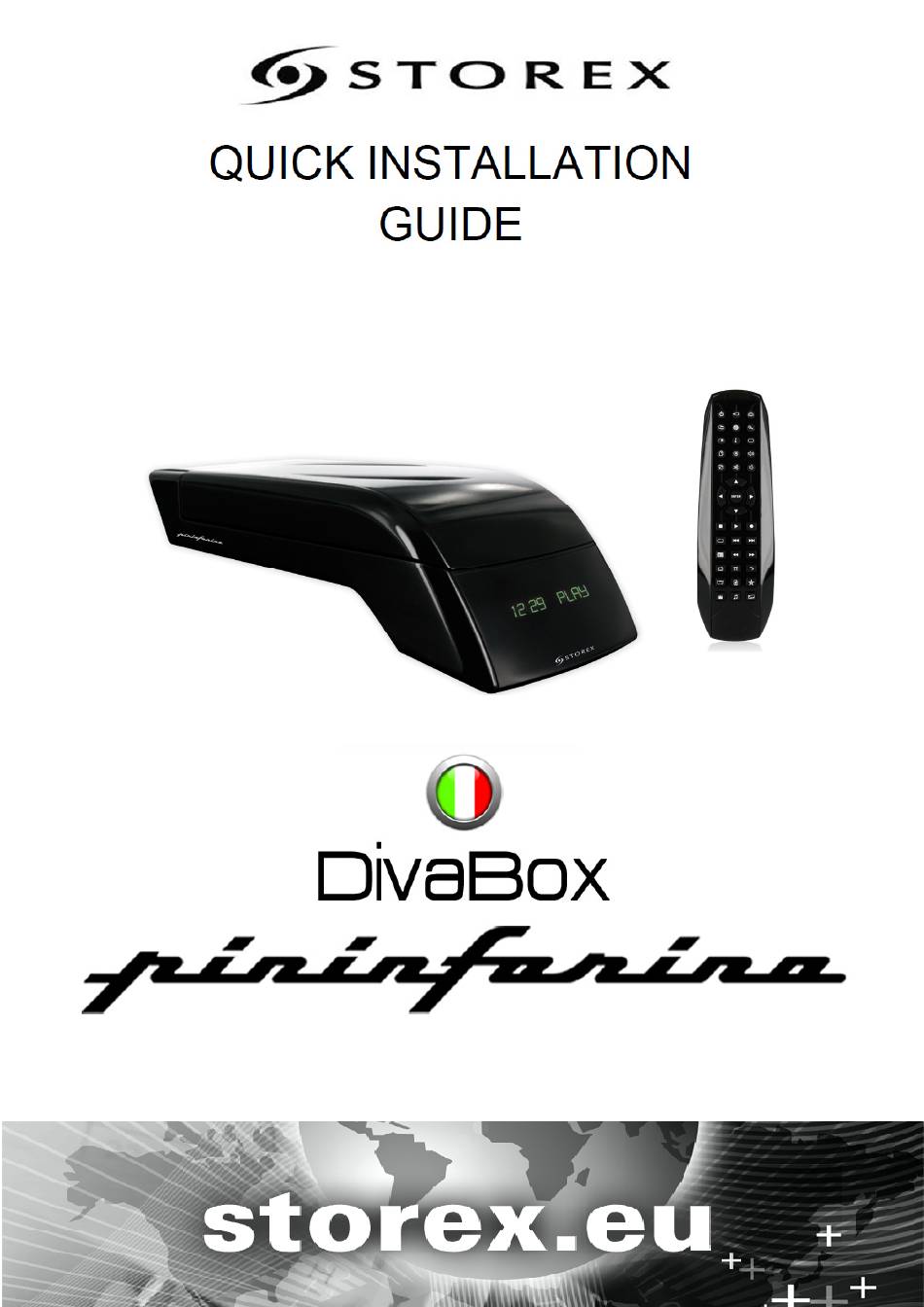

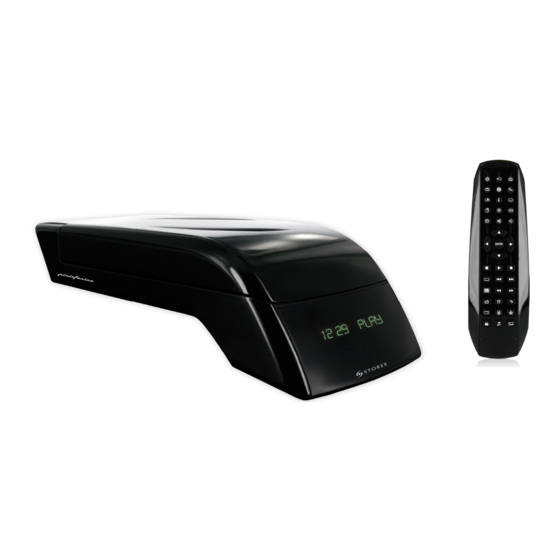

Quick Installation Guide
DivaBox
© Storex 2009
1


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pininfarina DivaBox and is the answer not in the manual?

Questions and answers

Related Manuals for Storex Pininfarina DivaBox

Summary of Contents for Storex Pininfarina DivaBox

  • Page 1                                                     Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 2                                                             Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 3: Table Of Contents

    USING THE NETWORK MODE  ...................... 19  TAKE ADVANTAGE FROM THE MULTI-MEDIA UNIVERSE ............ 20  HOW TO CONFIGURE THE DIVABOX  .................... 21  DISPLAY  .............................. 21  NETWORK .............................. 22  WEB SITE STOREX  .......................... 24  TECHNICAL SUPPORT ........................... 24  REGISTERING THE WARRANTY  ...................... 25  TERMS OF WARRANTY  .......................... 25  SAFETY AND ENVIRONMENT ...................... 26 ...
  • Page 4 Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 5: Operation

    - AC adapter: INPUT :100V - 240V~ 50-60Hz 1.0A OUTPUT : 12.0V 2000mA 5.0V 2000mA - Supported Formats - Video: Avi, Xvid HD, MPEG HD, MKV and WMV HD - Audio: MP3, WMA Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 6 Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 7: Installing The Divabox Multimedia Cartdidge

    Then push in (4) direction until you hear a light “click”. 5  To remove the cartridge, first turn off the main unit; repeat the same procedure: slide in direction (5) and move it up to eject and store away the HMS cartridge. Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 8 2  6  4  7  9  8  10  12  11  13  14  15  17  16  20  19  21  22  24  25  27  26  30  28  29  33  31  32          Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 9 Allow to lit on/off the VFD display MOVIE Gives a direct access to the MOVIE page MUSIC Gives a direct access to the MUSIC page PHOTO Gives a direct access to the PHOTO page   Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 10: Before Starting

    2. Connect the DivaBox to the television with the AV cable (depending on your configuration). 3. Connect the DivaBox to the television with the provided HDMI cable (depending on your configuration). 4. Connect the power supply adapter to the DC IN port of the DivaBox. Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 11: Front Panel

    3. ANTENNA OUT : To connect an antenna cable from the DivaBox to the TV 4. OPTICAL : To connect a S-PDIF cable (optical) 5. HDMI OUT : To connect he HDMI cable to your TV   Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 12: Installing The Dvb-T Channels

    5. Press the key “MENU” of your remote control, 4 icons will appear at the bottom of the page: 6. Select the third icon in order to reach the page that allows to scan automatically the DVB-T channels: Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 13 8. Select “Search” using the directional keys of your remote control then press “ENTER”. 9. The scanning of the DVB-T channels starts. Many channels are found during scanning Total progression of the scanning channels Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 14: Visualize And Record The Dvb-T Channels

    TNT. " "  Press to show strength of the signal. " "  Press to change subtitles. " "  Press to show the Electronic Program Guide. " " Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 15: Direct Recording

    “YES” to stop the recording. Note: All the records are stored directly in the DivaBox multimedia cartridge, in the folder “Record” placed at the root of the cartridge. Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 16: Scheduled Recording

    3. Press “ENTER” to post information corresponding to the selected program. Select “Add” then press “ENTER” to add the program to the list of the scheduled recordings. Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 17: Using A Divabox Multimedia Cartridge

    1. Select one of the icons according to the file type which you want to visualize (Video, Music or Photo). 2. Select “HDDPartition1” then press “ENTER”, select the file which you want to visualize and press on “ENTER”. Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 18: Using An External Storage Device

    1. Select one of the icons according to the type of file which you wish to visualize (Video, Music or Photo). 2. Select your USB storage device then press “ENTER”, select the file which you want to visualize and press “ENTER”. Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 19: Using The Network Mode

    2. Install software STOREX DIGITAL Media Server on your PC (available on www.storex.eu) 3. Once the installation is finish, you can lunch the STOREX DIGITAL Media Server 4. Set the files with contents to be share on DivaBox while pressing “add” to reach the Explorer and choose the files.

  • Page 20: Take Advantage From The Multi-Media Universe

      1. Select one of the icons (Video, Music and Photo) of the main page: 2. Select your STOREX Media Server, which is posted in the list, by pressing “ENTER” and select the file that you want to play. 3. Enjoy the multi-media universe...

  • Page 21: How To Configure The Divabox

      Display   1. Turn on the DivaBox 2. Once the DivaBox has boot up, select “SETUP” then press “ENTER” to configure your DivaBox 3. Choose the resolution 4. Choose the language Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 22: Network

    If you use a wireless connection, follow these steps. 1. Select “Wireless”. 2. Select “SCAN” function in order to search all the access points available detected by the DivaBox. Then select the access point that you want you to connect. Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 23 7. Select “Connect” then press “ENTER” to validate. Your DivaBox is ready to be used. Hint: The wireless connection is only available with a USB WiFi stick, you can find it in www.storex.eu Quick Installation Guide DivaBox © Storex 2009  ...

  • Page 24: Web Site Storex

    WEB SITE STOREX   You will find on the STOREX web site a heading SUPPORT associated with each STOREX product. Appointment with the http://www.storex.eu address, select “TNT Recorder” then DivaBox. You will be able to download the last complete version of the handbook, the software updates and to consult the frequently asked questions.

  • Page 25: Registering The Warranty

    Proof of purchase must be provided to our staff before STOREX will honour the warranty. The warranty does not cover breakdowns or faults due to failure to comply with the instructions in...

  • Page 26: Safety And Environment

    SAFETY AND ENVIRONMENT Your STOREX unit was tested and is in conformity with the CE standards at the time of its marketing. Your STOREX unit was tested and is in conformity with the environmental standards (RoHS) at the time of its marketing.
  • Page 27 Quick Installation Guide DivaBox © Storex 2009  ...
  • Page 28 DIVABOX Is a product line of www.storex.eu © STOREX –2009 All trademarks are the property of their respective owners.   Quick Installation Guide DivaBox © Storex 2009  ...
