INSTALLATION
Step 1 - Flip rear seat to full forward position. This will give you more room to work with.
Step 2 - You may also want to remove the top to make moving around the vehicle, during installation,
easier.

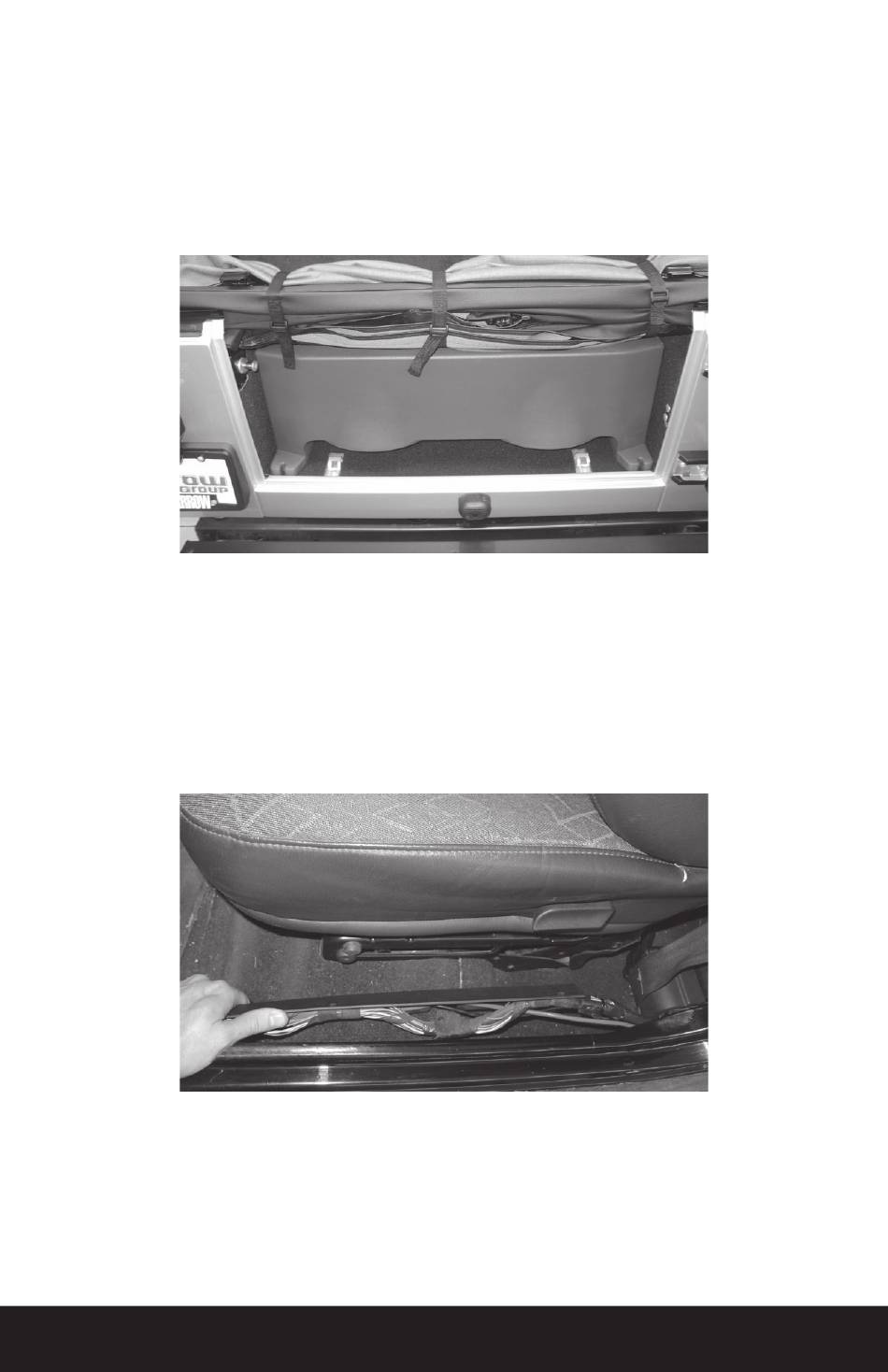

Step 3 - Place enclosure on the floor behind the rear seats with woofers firing down as shown below.
Step 4 - If externally amplified, make speaker connections to the enclosure from the amplifier.
Connect speaker wires from amplifier to enclosure, positive to red terminal and negative to black
terminal.
Amplified ThunderForm
Note: When routing power wire we recommend a connection directly to the battery.
Step 5 - Locate the factory wire harness running under the driver side threshold.
Step 6 - Use a Phillips screw driver to remove the three clips holding the factory wire harness under
the door threshold on the driver side.
Step 7 - Make a small cut in the carpet located just under the pre-amp location of the enclosure. This
will allow you to hide the wires under the floor mat.
4
M T X . C O M
