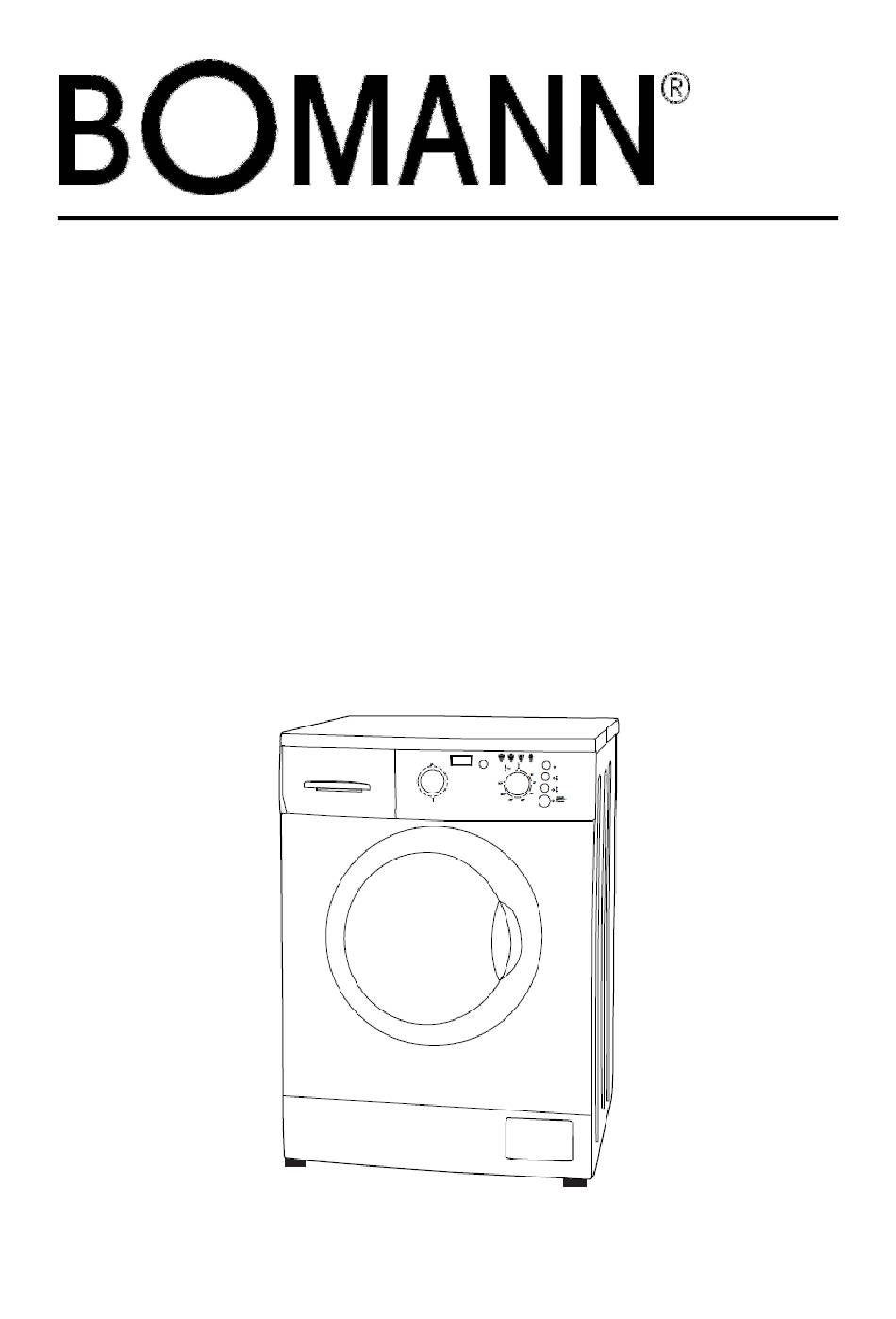

User Manual
HOUSEHOLD-
WASHING MACHINE
WA 5712
WA 5714
Please read this manual carefully and keep for future reference!
1
09/2013

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WA 5712 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for BOMANN WA 5712

  • Page 1 User Manual HOUSEHOLD- WASHING MACHINE WA 5712 WA 5714 Please read this manual carefully and keep for future reference! 09/2013...
  • Page 2: Table Of Contents

    ABLE ONTENT OVERVIEW IMPORTANT USE AND SAFETY INSTRUCTIONS DISPOSAL OF USED DEVICES PRODUT DESCRIPTION Delivery scope Specifications INSTALLATION Remove the Transit Bolts Place requirements Water Connection Power Connection STARTUP / OPERATION Prior to First Use Control Panel Table of Washing Cycles Start up the Washing Machine End of Washing TIPS FOR SAVING ENERGY...
  • Page 3 Fire Danger / Short Circuit or Electric Leakage may occur Do not install the appliance close to fire sources or heat sources. Do not rest any burning candles or cigarettes on the appliance. Do not install the appliances in places with high dampness or extreme wetness, lest igniting dam- ages or other accident occur easily due to gathered water drops on electrical components.
  • Page 4: Disposal Of Used Devices

    Unpacking Check the device for any possible transport damage. Do not install a damaged device. In case of damage, please contact your distributor. ISPOSAL EVICES This product is marked in accordance with the European waste regulation 2002 / 96 / EC - WEEE It regulates the proper disposal of the product.
  • Page 5: Produt Description

    Accessoires Name Qyt. Accessoires Name Qty. Water inlet hose Hose holder Transit bolts caps User manual Specifications Model WA 5712 WA 5714 Type Freestanding Freestanding Spin speed 1200 rpm 1400 rpm Capacity 6 kg 6 kg Energy Efficiency Class – Washing Efficiency Class –...
  • Page 6: Installation

    NSTALLATION Remove the transport bolts Before using this washing machine, the transport bolts must be removed from the backside of the machine. Loosen all bolts with spanner and then remove them and keep the transport bolts properly for future use/transport. Plug the holes with the transit bolts caps supplied. WARNING: Should the bolts aren’t removed;...
  • Page 7: Water Connection

    Feet Adjustment (level adjustment) Take care to a firm and horizontal position of the washing machine. If the machine moves, adjusts the feet. Loosen the locknuts with a spanner. Adjust the feet: Using the spanner, turn it locknut in a clockwise direction. Then turn locknuts togeth- er with adjust feet to unscrew.
  • Page 8: Power Connection

    2. It can drain the water up and down, the drain hose shall be installed at a height of min. 60 cm and max. 90 cm about the ground and its end shall not be immersed in water. Please use the supplied hose holder for flexible hoses to get a proper angle and secure it well to avoid a change in position.
  • Page 9: Startup / Operation

    TARTUP PERATION Prior to First Use Make sure the power voltage at your place is same to the rating label at the device. Remove the accessories and any material from the drum. Clean the drum (see ‘Cleaning and Care’) Before using your washing machine for the first time let it run one washing cycle without laundry: Connect the power and turn on the tap.
  • Page 10: Control Panel

    NOTE: The dispenser is suitable for the use of washing powder in pre- and main- wash cycle! To avoid overflowing dissolve your washing powder in a bit of water in case it is clotted. Follow the manufacturer’s dosage information. Clothing, which are not suitable for the washing machines: Ties, waistcoats, outerwear, etc.
  • Page 11 Note: ‘ ’ is for Standard Cotton programme. Standard Cotton at 60 ° C and 40 ° C are suitable to clean normally soiled cotton laundry and they are the most efficient programs in terms of combined energy and water consumptions for washing that type of cotton laundry;...
  • Page 12: Table Of Washing Cycles

    Delayed start To set the delayed start time the button is pressed repeatedly until the desired value shown on the digit display. The value can be chosen between 1 and 24 hours. Pressing the Start/Pause button the countdown starts on until the expiration of the time on the display. Safety child lock The appliance comes with a child lock function to avoid operating errors caused by playing chil- dren.
  • Page 13 The programme intensive 60 ° C and 40 ° C, used for the evaluation of the product performance, is the most effi- cient programme in terms of combined energy and water consumption for the washing of cotton laundries Residual Standby W Energy Water- Water supply Time WA 5712 humidity consumpt. consumpt. pressure Mpa Min. - 60° C at full load: 0.05-0.8 0.65...
  • Page 14: Start Up The Washing Machine

    Select the temperature by turning the ‘Temperature knob’ (2). Then press the spin button (3) to select the desired spin speed level. Select and set the spin speed level: WA 5712: 0spin stop-400-600-800-1.000-1.200 rpm WA 5714: 0spin stop-400-600-800-1.000-1.200-1.400 rpm In 0spin stop setting the machine does not spin.
  • Page 15: Tips For Saving Energy

    Turn Off the Washing Machine Turn off the device by positioning the program selector knob to position ‘0’. Close the water supply! When machine turned off, leave the door ajar for the better preservation of the seal and preventing musty odours. Remove the power plug when the machine is not used for long periods.
  • Page 16 Cleaning the Water Inlet Filter The inlet filter should be cleaned every 1 - 3 months. Close the tap. Unscrew the water inlet hose. Clean the filter with a small brush. Install the water inlet hose firmly again, open the tap and make sure that no water drips from the hose.
  • Page 17: Repairs

    Faulty motor. Contact an local authorized service centre Faulty Software. Contact an local authorized service centre Are you interested in other Bomann products? Please visit our website: www.bomann.de 09/2013...
  • Page 18 ECHNICAL Product fiche of household washing machines according to EU Directive 1061/2010: Brand Bomann Model WA 5712 Rated capacity 6 kg Energy efficiency class Consumption data Weighted annual energy consumption 174.0 Consumption data standard programme - cotton 60° C at full load 0.91...
  • Page 19 ECHNICAL Product fiche of household washing machines according to EU Directive 1061/2010: Brand Bomann Model WA 5714 Rated capacity 6 kg Energy efficiency class Consumption data Weighted annual energy consumption 174.0 Consumption data standard programme - cotton 60° C at full load 0.91...
  • Page 20 C. Bomann GmbH www.bomann.de 09/2013...
