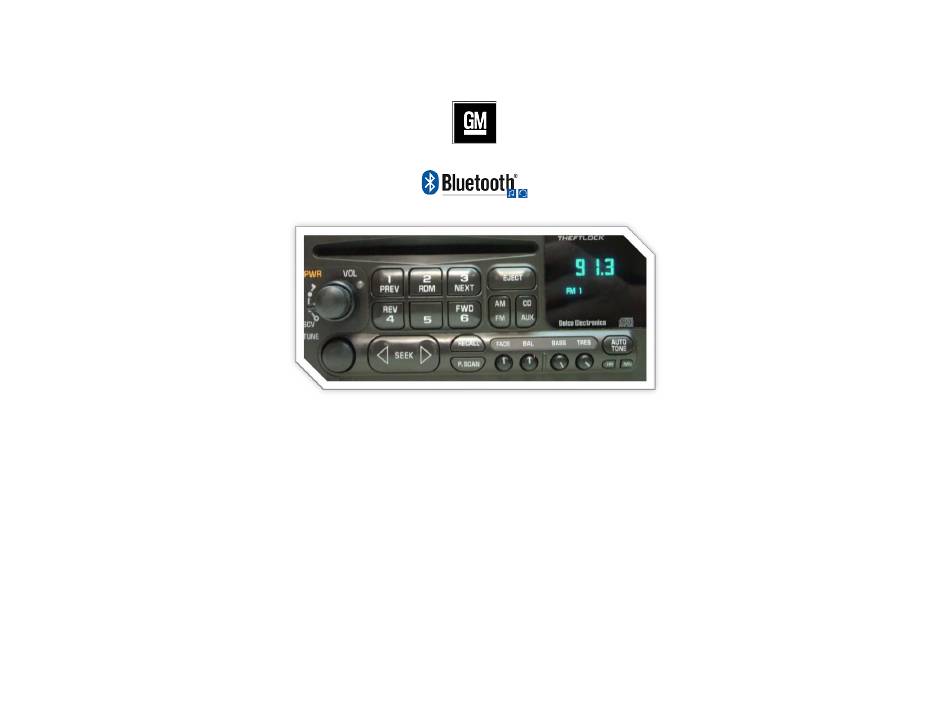

- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 A2DIY-GM1 QUICK START BLUETOOTH INSTALLATION GUIDE FOR SELECT 1995-05 GM Created March1, 2017 Revised: January 26, 2021...
-
Page 2: Installation
(See Fig. 1) Many GM owners looking to add Bluetooth without changing the original radio will be pleased to find the A2DIY-GM1. This new release features Bluetooth Hands- Free and music streaming from any smartphone or Tablet with A2DP and Hands-Free profile. - Page 3 Auxiliary input connection: Connect supplied 3.5mm audio cable (See Optional USB “Fast Charge” Kit (not for thumb drives etc.) Fig. 4) to module “AUX” jack (See Fig. 3). Route cable other end to front of dash or wherever Aux device will reside (within 3 ft.) Fig.
- Page 4 Insert USB male cable terminal (See Fig. 9) through ¾” hole created in Tuck and secure any extra wire from moving parts and test operation (See Enabling the AUX section below) step 1 and connect to module USB charging port (See Fig. 10) USB with Bracket Mount (No drilling) Locate flat surface at location of choice within 3.2 ft.
- Page 5 One connection 10 days. Use supplied USB cable to connect media button to charging source. The A2DIY-GM1 connects to one device at a time. First device must be Reaches full charge after 2 hours. disconnected in order to pair a second device or simply turn OFF Bluetooth on first device.
-
Page 6: Test Operation
6. To switch between AUX and Bluetooth, press media button pause/play f correct operation is confirmed go ahead and reinstall radio. Bluetooth Kit comparison chart Feature BLU-GM1 A2D-GM1 A2DIY-GM1 Slave unit required/retained ✓ 3.5mm AUX input ✓ USB charging port... -
Page 7: Frequent Asked Questions
3. Can I control smartphone from radio buttons? use smartphone built-in controls and display or included media button 4. Can I pair or save more than one device with the A2DIY-GM1? YES; however only one connection is possible at a time. To pair a second device, you must disconnect/unpair first device.
