GMC 19166682 Quick Start Manual

Wheel Liner Rear
Please read instruction thoroughly before starting.
Installation time: 30 minutes

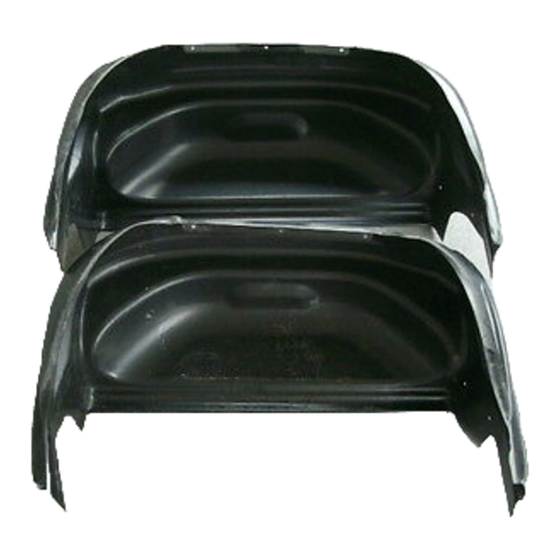

Package Contents:

Description
Left Hand Wheel Liner
Right Hand Wheel Liner
Plastic Retainer
Self-tapping Screw
Installation Instructions

Tools Required:

Clean Cloth/Rag
5/16" (7mm) Socket/Driver
Drill Motor

Installation Procedure:

1. For ease of installation, tires can be removed.
2. Clean the underbody panel where the wheel liners are to be
located.

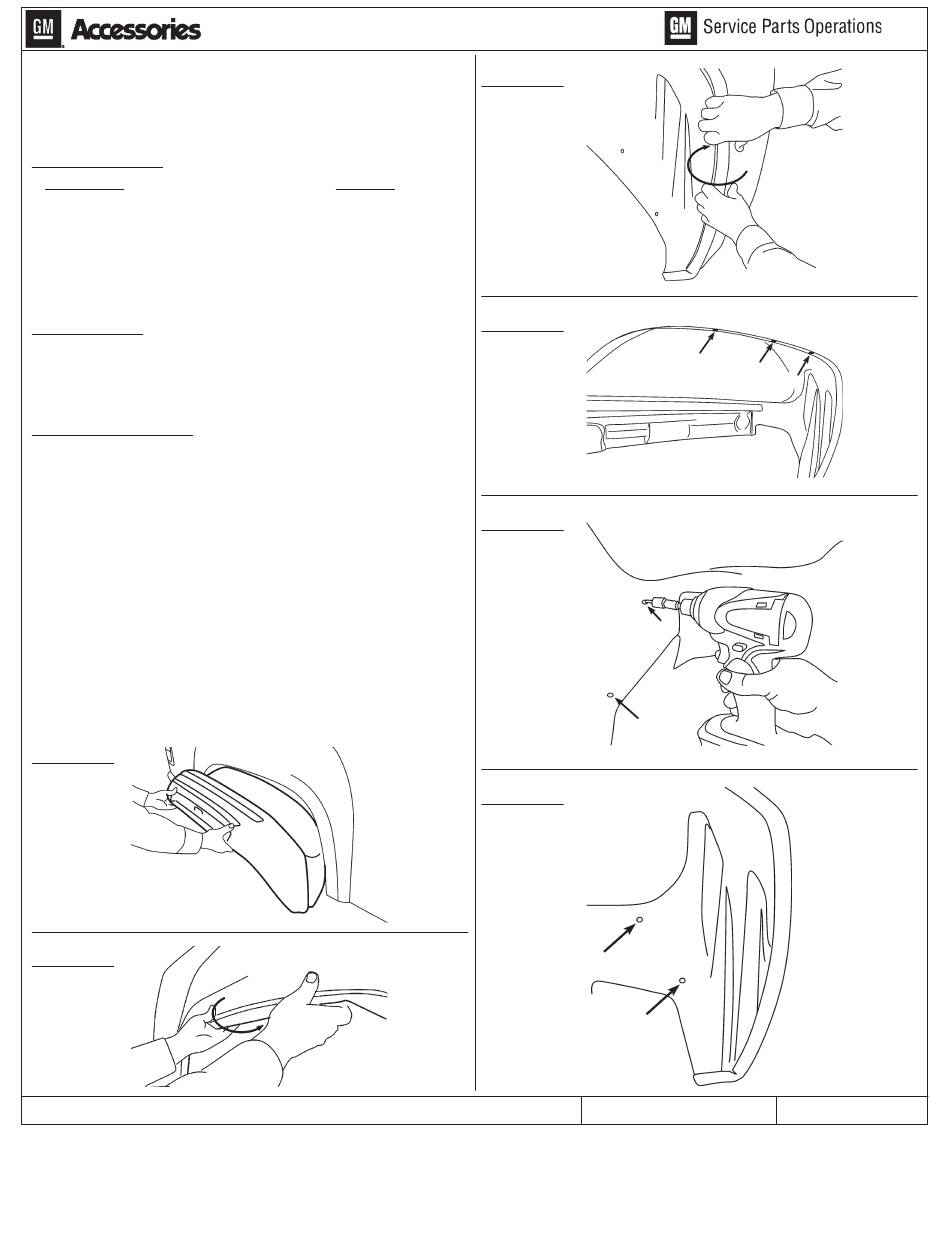

3. Mount the wheel liner on under body panel. Be sure that the
upper portion of the wheel liner is mounted behind flange and
around the wheel house opening as shown in Figures 1, 2 and 3.
4. Install plastic retainer in locations 1, 2, and 3 as shown in
Figure 4.
5. Install self-tapping screws in locations 4, 5, 6 and 7 as shown
in Figure 5.
6. Repeat procedure for other side as shown in Figure 6.
7. Wheel liners can be cleaned with any commercially available
cleaner.
FIGURE 1
FIGURE 2
Wheel Liner Rear
ALL INFORMATION WITHIN
DATE
ABOVE BORDER TO BE PRINTED
EXACTLY AS SHOWN ON 8.5 x 11 01JN07 In
WHITE 16 POUND NON-BOND
RECYCLABLE PAPER.
PRINT ON BOTH SIDES, EXCLUD-
ING TEMPLATES.
TO BE UNITIZED IN ACCOR-
DANCE WITH GMSPO SPECIFI-
CATIONS.
Quantity
1
1
6
8
1
REVISION AUTH
FIGURE 3
FIGURE 4
FIGURE 5
FIGURE 6
6
7
PART NO.
IR 01JN07
INSTALLATION INSTRUCTIONS
DR
TITLE
Wheel Liner Rear
PART NO.
19166682
6200 Grand Pointe Dr., Grand Blanc, MI 48439
1
2
3
5
4
19166682
SHEET
1
SHEET
1 3
OF
3
OF
