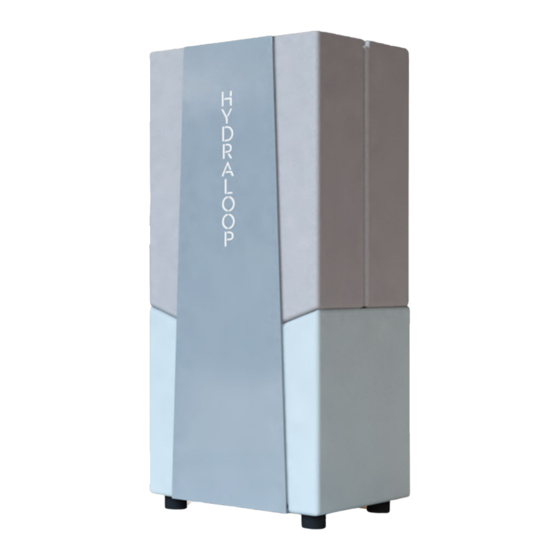

- Page 1 Hydraloop H350, H300 & H600 OWNER MANUAL...
- Page 2 Dear customer, Thank you for purchasing this Hydraloop device. Read this manual before using the product and keep it in a safe place for future reference. To ensure safe and proper operation, we recommend regular maintenance of the product. Our Service and customer service organization can help with this.
-
Page 3: Table Of Contents
Contents Safety ....................................4 General safety instructions ........................... 4 Recommendations ..............................4 Responsibility and Liability ........................... 5 1.3.1 Manufacturer ..............................5 1.3.2 Installer ................................5 1.3.3 User .................................. 5 Introduction ..................................6 Product definition ................................6 Design, construction & components ..........................6 Installation principle ................................ -
Page 4: Safety
1. Safety 1.1 General safety instructions WARNING Read this manual before installing and/or using the Hydraloop. This Hydraloop creates NON-POTABLE water. DO NOT use the output water as drinking water. The Hydraloop devices should only be opened or serviced by authorized persons/installers. -
Page 5: Responsibility And Liability
1.3 Responsibility and Liability 1.3.1 Manufacturer Hydraloop warrants the proper working of the system according to its general sales conditions. As a manufacturer, Hydraloop is not liable in the following cases: Failure to follow the instructions for installation and maintenance of the Hydraloop. Failure to follow the instructions for use of the device. -
Page 6: Introduction
(such as sinks, kitchen and toilets). The toilet fixtures and the laundry machine have separate supply pipes for the water recycled by the Hydraloop system (separated from potable water). Hydraloop residential water recycling products are certified to NSF/ANSI standard 350. -
Page 7: Installation Principle
5. Installation principle The installation and commissioning of the Hydraloop unit can only be carried out by approved installers who have been trained by Hydraloop Systems B.V. The image below shows an overview of the installation principle. (use this image for reference). IMPORTANT: Use shower &... -
Page 8: Startup Time
6. Startup time The Hydraloop unit needs 21 days to develop the biological treatment process and to become fully operational. The greywater treatment will start from the very first day, however this recycled water will be purged into the sewer and backup water will be supplied instead of recycled water. After this start up period of 21 days, the Hydraloop unit will automatically switch over to offer recycled water to the toilets, laundry machine and/or garden. -
Page 9: Power Cut
8. Power cut In case the electric power to the unit is cutoff, the Hydraloop unit will not supply water to the toilets and laundry machine until power is restored. However, the Hydraloop Electronic Control Unit (ECU) will continue to work on its back-up batteries. -
Page 10: Maintenance
E. coli (MPN/100mL) < 14 PH (SU) 6.0 - 9.0 Hydraloop residential water recycling products are certified to NSF/ANSI standard 350. What is greywater? Greywater is lightly contaminated wastewater from the bath, shower and washing machine. It does not include wastewater from the kitchen sinks, dishwashers or toilets. - Page 11 Does the Hydraloop unit make a noise? The Hydraloop unit makes some noise, approximately 44 dB. The sound comes from the air pump and air bubbles that is part of the dissolved air floatation treatment that is used in the cleaning process. Also, the distribution pump that pumps water to toilets, laundry machine and optionally garden makes a slight noise, but is only active when it is used to pump water.
-
Page 12: Limitations
The Hydraloop water treatment process takes about 5 hours and starts from the last time water has entered the Hydraloop unit. So, every time a little bit of water from the hand basin would enter the Hydraloop unit, the treatment process would restart. This would delay the availability of recycled water. However, if two or more Hydraloop units are installed in a Hydraloop Cascade set-up, hand basins can be connected because the treatment process is divided and spread out over several Hydraloop units. -
Page 13: Warranty
Power supply: 100/240V, 20W (24V internal) Expected power consumption: ±200 kWh/year Average recycled water quality: Hydraloop Residential water recycling products are certified to NSF/ANSI standard 350 CBDO5 (mg/L) < 10 TSS (mg/L) < 10 Turbidity (NTU) < 5 E. coli (MPN/100mL) < 14 PH (SU) 6.0 - 9.0... - Page 14 This document and its contents are the sole property of Hydraloop Systems B.V. and must not be copied to a third party either in part or whole without prior written consent of Hydraloop Systems B.V. Hydraloop reserves the right to change the specifications stated in this document. Hydraloop products are protected by patents and patents pending.
