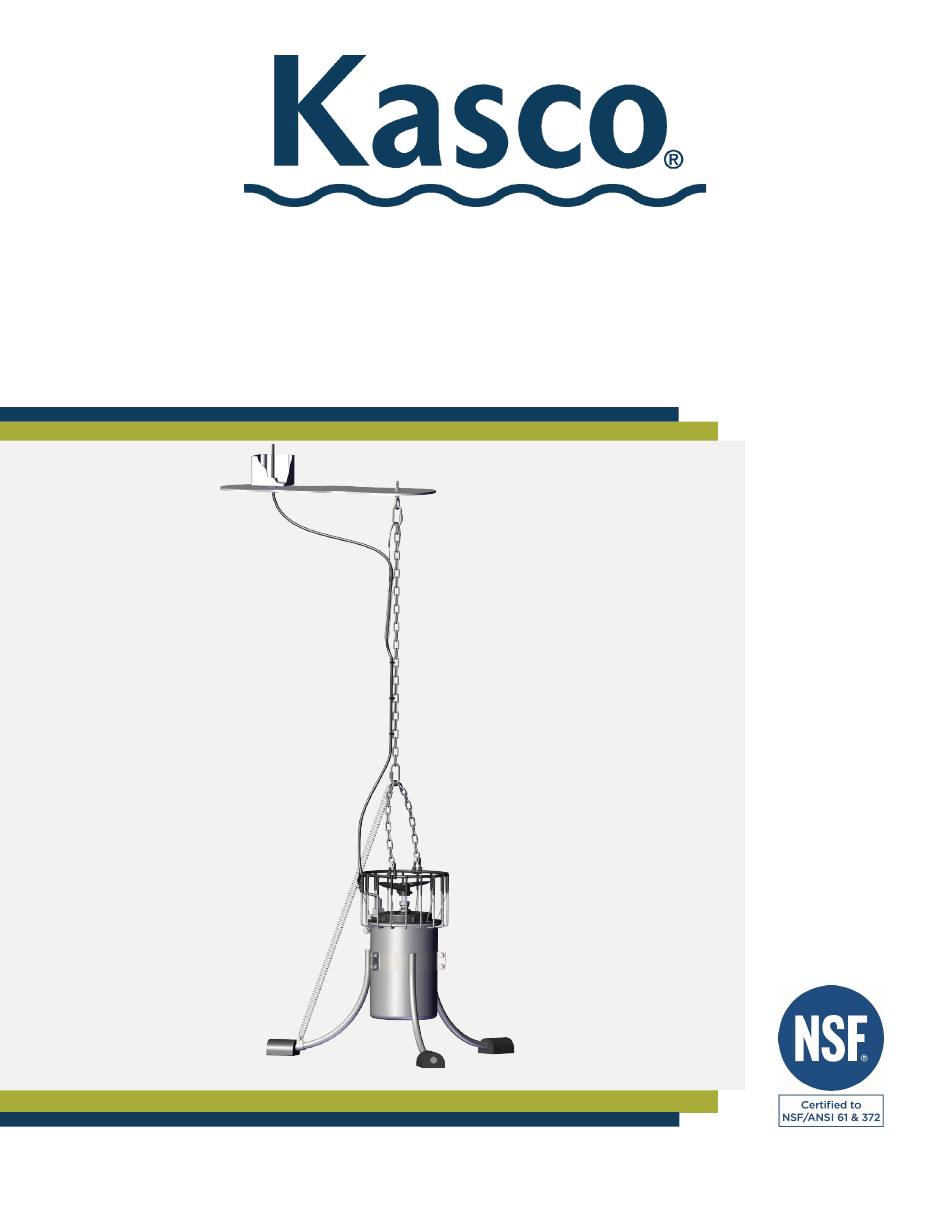

- Page 1 CertiSafe Floor Mount ™ Assembly & Installation Manual 800 Deere Rd. Prescott, WI 54021 • 715-262-4488 • sales@kascomarine.com • www.kascomarine.com Document number 852111...
-
Page 2: Table Of Contents
RM-100 CERTISAFE™ FLOOR MOUNT MANUAL Contents Safety First .......................3 Product and Installation Overview ..............4 Suggested Tools and Supplies .................4 Parts Included ....................5 Base Assembly ....................7 Retrieval Chain Attachment – Mixer Side ............8 Cord Attachment – Mixer Side ................9 Tank Penetration for Cable Support and Cord Grip ........10 CertiSafe™... -
Page 3: Safety First
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL IMPORTANT: PLEASE READ THIS MANUAL AND SAVE FOR FUTURE REFERENCE SAFETY FIRST • Under NO circumstances should anyone enter the water with the mixer connected or in operation. • Running the unit out of water will create a dangerous situation and damage the seals. •... -
Page 4: Product And Installation Overview
• To prevent galling, we recommend a moisture-cured, polyurethane compound sealant suitable for contact with potable water and certified to meet the shrinkage for interior and exterior use. Refer to NSF/ANSI Standard 61 for indirect additives. • Be aware of clearance between the mixer assembly and any fixed objects within the tank, including ladders, ensuring that there is enough room for the CertiSafe™... -
Page 5: Parts Included
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL PARTS INCLUDED Assembly Item Description Quantity Part number Base CertiSafe™ mixer base leg 997200 5/16” serrated flange screw 566206 5/16” nylon locknut 566202 1/4” shoulder screw 451110 1/4” flat washer 566208 1/4” nylon locknut 566212 Retrieval Chain and Long retrieval chain - 50 ft. - Page 6 Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL 5/16” nylon locknut (R) Cord grip (U) 5/16” flat washer (S) Steel tank roof Cord grip nut (V) 5/16” sealing washer (T) 5/16” flat washer (S) 5/16” eye bolt (Q) Top connecting link (H) Cable support (W) Long retrieval chain - 50 ft.
-
Page 7: Base Assembly
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL BASE ASSEMBLY 1. Assemble the three mixer base legs loosely to each other using six 5/16” flanged screws (B) and 5/16” nylon locknuts (C). Fig. 2 2. Place the mixing unit upside down on the foam packing from the mixer unit box, if available. -
Page 8: Retrieval Chain Attachment - Mixer Side
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL RETRIEVAL CHAIN ATTACHMENT – MIXER SIDE 1. Place the unit upright on the legs of the base assembly. 2. Insert each end link of the short retrieval chain (J) into a tab slot on the cage top ring. -
Page 9: Cord Attachment - Mixer Side
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL CORD ATTACHMENT – MIXER SIDE 1. Use zip ties (P) to attach the power cable first to the cage and then to the long retrieval chain. Ensure there is enough gathered slack in the cable so that when the assembled unit is lowered into the tank, its weight is on the chain and not the cable. Slack in cable before installation No tension on power cable while lowering... -
Page 10: Tank Penetration For Cable Support And Cord Grip
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL TANK PENETRATION FOR CABLE SUPPORT AND CORD GRIP Note: • The maximum tank roof thickness accommodated by the tank penetration parts included is 1/8”. • Suggested measurements are based on a 24” square access hatch. Tank hatch center point Ø... - Page 11 Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL 8. Fit a flat washer (S) and then the sealing washer (T) onto 10. From the tank exterior, fit a second flat washer (S) onto the eye the eye bolt (Q). bolt. 9.
- Page 12 Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL ASSEMBLED UNIT INSTALLATION With the mount, retrieval chain, and cord affixed to the mixer and the tank roof penetration complete, the entire assembled unit is ready for installation. 1. As a precaution against dropping the chain, attach the last link of the long retrieval chain (G) to the top connecting link (H) prior to lowering the CertiSafe™...
- Page 13 Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL 6. Feed power cable through the cable support (W). Fig. 21 7. Continue to feed power cable through the cord grip (U) and out of the tank until all excess cord length has been taken up, leaving only enough so that there is no strain on the cable.
-
Page 14: Certisafe™ Tank Mixer Maintenance Recommendations
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL CERTISAFE™ TANK MIXER MAINTENANCE RECOMMENDATIONS CERTISAFE™ TANK MIXER MAINTENANCE RECOMMENDATIONS IMPORTANT: Disconnect electrical power prior to any maintenance or servicing! GFCI • If you note a deficiency in performance, remove the equip- •... -
Page 15: Certisafe™ Tank Mixer Warranty
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL CERTISAFE™ TANK MIXER WARRANTY THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTIES, EXPRESSED OR IMPLIED. IN NO EVENT WILL KASCO Kasco offers a standard 3-year warranty with the following MARINE, INC. BE LIABLE FOR ANY CONSEQUENTIAL models: DAMAGES. -
Page 16: Non-Warranty Repairs
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL NON-WARRANTY REPAIRS Kasco will recycle any unit we receive for estimate but which You can often repair failed equipment at a lower cost than re- placement. Kasco Marine estimates repairs at the request of the the customer declines to repair, unless the customer specifies otherwise. -
Page 17: Repair Contact Form
Back to Contents RM-100 CERTISAFE™ FLOOR MOUNT MANUAL REPAIR CONTACT FORM • Kasco requires that all equipment sent for repair MUST be accompanied by this form and marked to Repairs attention. • Kasco is NOT responsible for shipping damage accrued in return shipment. •...
