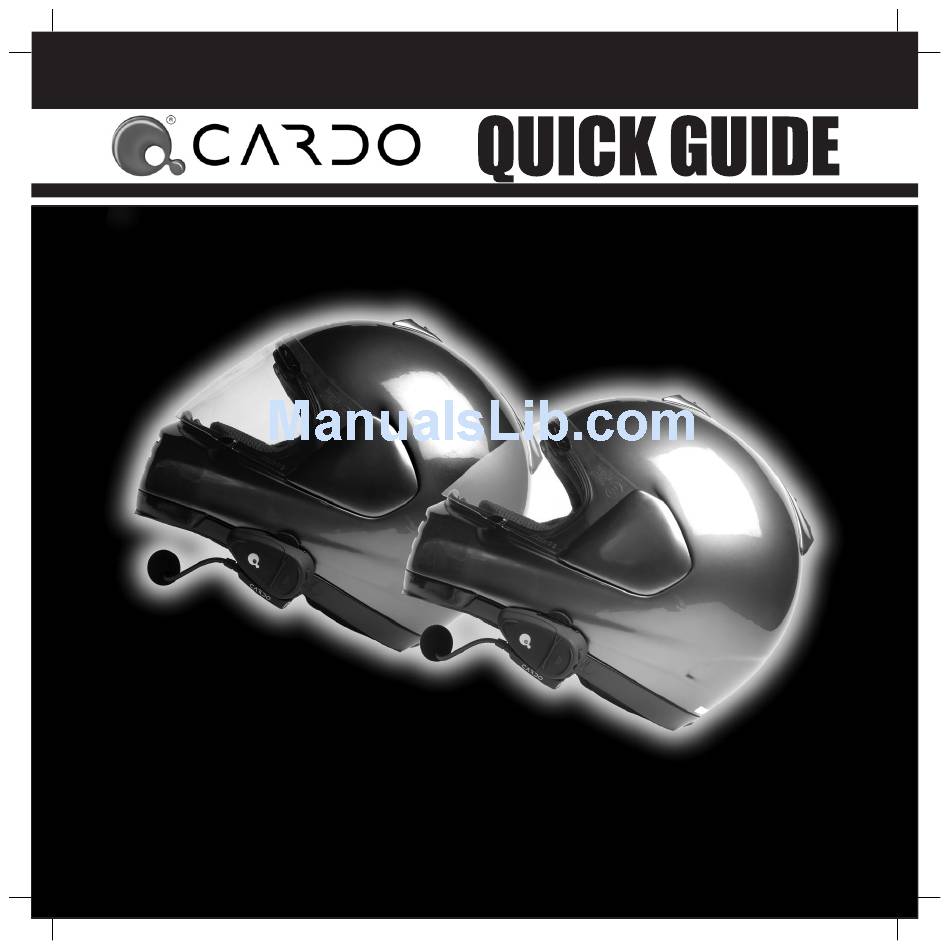

  • Page 1 TeamSet C A R D O S Y S T E M S I N C .
  • Page 2 Before using the scala-rider TeamSet, please familiarize yourself with the Bluetooth functionality of your cellular phone. The retail box of the scala-rider TeamSet contains two headset units: One device for the driver and a second device for the passenger.
  • Page 3 Status Light Sliding Panel Microphone Sliding Plate One headset for the driver and one headset for the passenger. NOTE: The use of two speakers may be illegal in certain jurisdictions. Please check the local regulations and act accordingly. Intercom Button...
  • Page 4 IMPORTANT The scala-rider TeamSet is a water-resistant device, designed for use under moderate rain or snow conditions. However, the headset is not waterproof and should not be used under severe weather conditions. The cover tongue protecting the Charging Jack should be kept tightly closed at all times to prevent moisture from entering the device.
  • Page 5 3. Search for Bluetooth devices on your phone by following the phone’s instructions. 4. After a few seconds the phone will list the scala-rider TeamSet as a discovered device. Select it and follow your phone’s instructions to accept the pairing.
  • Page 6 SYNCHRONIZING INTERCOM BETWEEN THE PASSENGER AND DRIVER HEADSETS The two headset units (Driver and Passenger units) are supplied factory synchronized for Intercom communication with each other. Therefore, you do not need to perform the synchronization between these devices.
  • Page 7 ATTACHING THE SCALA-RIDER UNITS TO YOUR HELMETS Perform this procedure for both the driver and passenger helmets. 1. Use the enclosed Allen Wrench to loosen the two screws on the Back Plate. 2. Slide the Back Plate between the internal padding and the external shell of the helmet.
  • Page 8 REMOVING THE HEADSET FROM THE HELMET Your headset can be removed for charging and storage by pressing your finger gently against the tab and sliding the headset up with the other hand. We recommend that you store your headset in the enclosed carrying pouch when not in use.
  • Page 9 DRIVER’S UNIT FUNCTIONS DESIRED RESULT: REQUIRED ACTION: Turn on the headset Press the Control Button steadily for at least 6 seconds Turn off the headset Press the Control Button steadily for at least 3 seconds Increase the volume Short press the Volume Up Button.
  • Page 10 End Conference Call (release passenger from a conference call) Enable/Disable Voice Command feature PASSENGER’S UNIT FUNCTIONS DESIRED RESULT: Turn on the headset Turn off the headset Start using the intercom Terminate operation of intercom Enable/disable Always On Intercom Increase intercom volume Short press Volume Up Button...
  • Page 11 DRIVER’S UNIT STATUS LIGHTS The Driver Headset uses the following Status Lights to display its current state: Status Light None Alternating Red/blue flashes 1 blue flash every 3 seconds 2 blue flashes every 3 seconds Call being initiated or in progress...

  • Page 12: Audio Tones

    AUDIO TONES With the exception of the actions below, all other actions are followed by a single tone to confirm that the headset has accepted the command. Action Enable/Disable Always On intercom Intercom on other side is not enabled or off and you...
  • Page 13 Can’t answer phone calls using the Voice Command (VC) feature. I cannot perform redial 3. Verify that the scala-rider headset is the paired headset to your phone. 4. Reconnect the phone and headset by short pressing the Control Button on the headset, or connecting them manually by using your phone’s menu.
  • Page 14 5 seconds 2. Disconnect the Charging Jack wait a few seconds and plug it back in. 3. When the headset is fully charged the red light turns off. 1. Possibly caused by nearby interference. If you have a GSM phone and your headset is too close to phone, noises may be heard.
  • Page 15 When I receive an incoming call, the intercom disconnects pocket or at least to a front pocket on the same side you wear your headset. 1. Close helmet cover under high speed conditions. 2. Make sure the microphone is in front of your mouth.
  • Page 16 PLEASE NOTE: THE USE OF THIS PRODUCT IS AT YOUR SOLE RISK AND MAY BE ILLEGAL IN CERTAIN JURISDICTIONS. ALL WAIVER PROVISIONS CONTAINED IN THE COMPREHENSIVE USER MANUAL APPLY. IF YOU ARE UNWILLING TO ACCEPT ANY OF THE SAID WAIVER CONDITIONS YOU MAY RETURN THE PRODUCT FOR A FULL REFUND ACCORDING TO COMPANY POLICY TERMS.
