HOW IT WORKS

The Piezo Ring system is based on the principle of a flow nozzle. The inlet funnel of the fan is used
as the flow nozzle, and the flow can be calculated by measuring the static pressure drop through the
inlet funnel. The pressure drop is measured from the tap located on the face of the inlet funnel to the
piezometer ring in the throat. The inlet tap is connected to the high-pressure side of the transducer

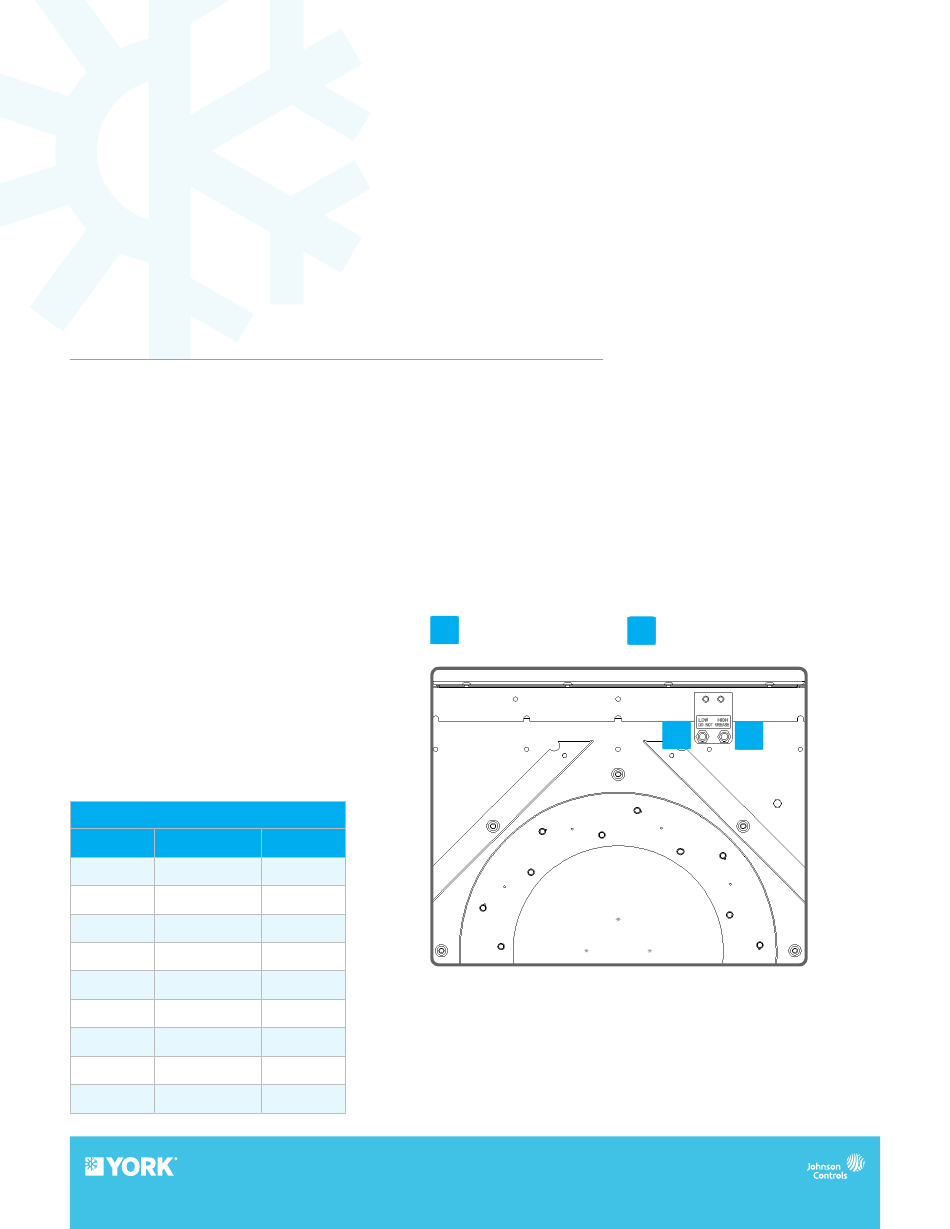

and the piezometer ring is connected to the low-pressure side (see diagram below).
MEASUREMENT OF AIRFLOW
Several factors affect the accuracy of
this method of determining flow. The
equations below assume the following:
• There are no vanes or other
obstructions in or near the inlet
• Impeller to inlet funnel overlap
• Flow entering the funnel (no pre-
swirl) contains no pressure.
• Accurate determination of air density
at the inlet
K Factor
iCorus & Corus
Fan Size
DDP
105 592
122 842
135 963
150 1147
165 1450
182 1671
200 2087
222 2458
245 2941
A
Efficient
Silent Array
592
842
963
1147
1450
1671
2087
2458
2941
Front Pressure Tap
B
HIGH PRESSURE
YORK ® STACK FAN
Piezometer Ring
LOW PRESSURE
B A
