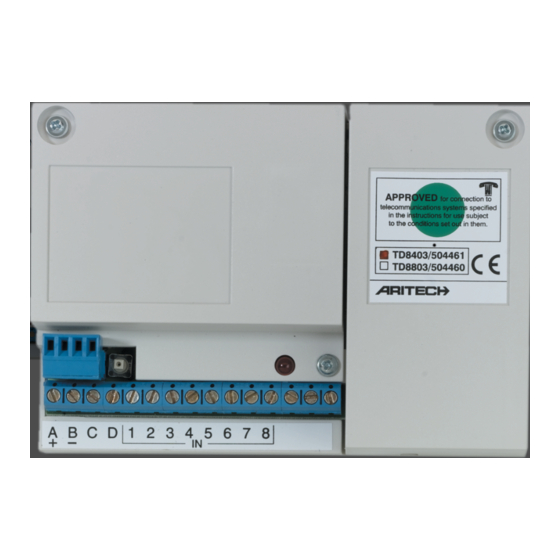

TD8403 / TD8803
TD8412 / TD8812
DIALLER
PROGRAMMING MANUAL
LK8803/LK8812
- 1 -

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TD8403 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aritech TD8403

Summary of Contents for Aritech TD8403

  • Page 1 TD8403 / TD8803 TD8412 / TD8812 DIALLER PROGRAMMING MANUAL LK8803/LK8812 - 1 -...
  • Page 2 - 2 -...
  • Page 3 Aritech. This restriction also applies to the corresponding drawings and diagrams. Aritech reserves the right to change parts of the product at any time without prior notice. The contents of this publication are subject to change without notice.

  • Page 4: Table Of Contents

    1.7.3 RD3000AGC Audio listen-in microphone (TD8803/TD8812 only) ......8 2. INSTALLATION ............................9 2.1 How to install ..........................9 2.1.1 With Aritech CS350 control panel ................9 2.1.2 With other equipment ....................10 3. DIALLER ENGINEER MENU ........................11 3.1 Telephone / Account numbers ....................11 3.1.1 Central station 1 to 6 ....................
  • Page 5 3.7 Miscellaneous ..........................20 3.7.1 Open collector 1 function ................... 20 3.7.2 Open collector 2 function ................... 20 3.7.3 Latch output ........................ 20 3.7.4 Dialler engineer code ....................20 3.7.5 Dialler default ......................20 3.8 Remote programming ......................... 21 3.8.1 Answering ........................21 3.8.2 Engineer Access no.
  • Page 6 - 6 -...

  • Page 7: Introduction

    If a control panel, other than the CD Advisor ® range or CS350 is used, the keypad can be removed after programming. The latest series of TD800 diallers is based on Aritech’s successful RD62 series. The RD-diallers receive alarm messages from the control panel in SIA format. For example: BA01 for an burglar alarm in zone 1 or FA02 for a fire alarm in zone 2.

  • Page 8: Technical Features

    1.6 Technical features • Voltage: 10 - 15 V DC (low voltage alarm at 10.7 V) • Power consumption: Quiescent: 33 mA / active: 84 mA • Operating temperature: 10 °C to +50 °C • Dimensions: 126(W) x 32(H) x 87(D) mm •...

  • Page 9: Installation

    2.1 How to install Completely disconnect the control panel from all power before installing dialler. Attention 2.1.1 Aritech CS350 control panel • Place the TD dialler behind the circuit board of the CS350, with the terminals in line with the terminals of •...

  • Page 10: With Other Equipment

    2.1.2 With other equipment Microphone Input KEYPAD 1 (RD3000AGC) CD3008 RC815 Telephone RD5045 OUTPUT 2 network (option) OUTPUT 1 Reset red wire 12V dc ® KEYPAD 2 - 4 With Advisor CD34/72 panels CD3008 Connecting inputs Using Relays Direct connection to a panel output DIP - switch Keypad1: Figure 2...

  • Page 11: Dialler Engineer Menu

    Conforms to the SIA protocol level 1(300Bd / FSK) in accordance with the American SIA standard. - Fast Format: Aritech 8 or 16 channel DTMF protocol: the handshake frequency can be set up using the "Protocol Options" menu (1400 or 1600 Hz). - CID: The contact ID protocol.

  • Page 12: Dual / Alternate Reporting

    Pulse (dial) or DTMF (touch tone) dialling must be selected in accordance with the parameters of the telephone line to be used. Remark for TD8803/TD8403. Although this equipment can use either loop disconnect or DTMF signalling, only the performance of the DTMF signalling is subject to regulatory requirements for correct operation.

  • Page 13: No Of Attempt Nn

    3.2.5 No of attempt nn Enter the number of dialling attempts at connection per telephone number. The number of attempts can be set to between 1 and 12. 3.2.6 FTC nn Enter the number of dialling attempts at connection per telephone number, before the dialler sends the signal for [No forwarding] to the collector output (TD8803/TD8812 only).

  • Page 14: Restore (Restore Message)

    3.3.2 Restore (restore message) The input numbers are displayed on the keypad which will send a restore. RP and YS do not send a restore [signal], even if the input is set to restore. £ ¢ 1. Press until the cursor is placed below the input to be altered. [12345678] 2.

  • Page 15: Destination Telephone Number For Reporting

    3.4 Report options 3.4.1 Destination telephone number for reporting Each event can be reported to any combination of the six central station telephone numbers. If no tel- ephone number is programmed for a certain event, the event is not reported. 3.5 Protocol options There are a number of parameters that may be set for each central station protocol, these settings are configured in this menu.

  • Page 16: Cid Area

    3.5.3 CID Area Assign an area number to input 1 to 8 SIA EVENT. NAME CID EVENT CID EVENT CID GROUP ZONE OR OF INPUT QUALIFIER CODE NUMBER SENSOR NR. PROGRAMMABLE RP *1 YS *1 OR *1 Internally generated events RP *1 RX *1 *1: No restore event for RP,RX ,YS and OR.

  • Page 17: Paging (Semadigit)

    As for message 1. 3.5.5 Voice / Audio listen-in function Voice or listen-in Select here whether the module operates as a voice/listen-in or listen--in/sound memory module. > TD8403/TD8412: only voice option > TD8803/TD8812: voice/listen-in • Select Message At this prompt select a message number for the event..

  • Page 18: Test Call

    Examples of messages: message 1: “Burglar alarm” message 2: “Fire alarm” message 3: “Medical assistance requested” message 4: “Panic alarm” message 5: “Care of Jones, 5 The High Street in Wolverhampton” Figure 3 Start playback All recorded messages can be played back through the connected telephone device. For the user.

  • Page 19: Manual Test

    3.6.4 Manual test This option is used to send a test call manually to one of the programmed Central Station telephone numbers station. Scroll down to the desired number and press to start the transmission. Call progress messages are displayed on the keypad during the test. Voice always sends message 5 during a manual- test call.

  • Page 20: Answering

    If it is accepted, the engineer’s keypad takes control of the site's alarm system. If the account has a TD8403/TD8412, all the telephone numbers can be changed. If the site has a TD8803/TD8812 all the programmable options of the dialler, and the Aritech control panel, if attached, can be altered. The engineer log of the control panel can also be read.

  • Page 21: User Menu

    4. USER MENU This menu is automatically displayed when the user enters his user code (Standard 4321). 4.1 Follow me number Here the user can change telephone number 1. This number must, however, be programmed with Voice protocol. 4.2 Service telephone number The user may enter the Remote telephone number of the engineer and press Accept.
  • Page 22 5. APPENDIX A Pogramming Map ® ® ® ® ® Country Ierland ® ® ® ® ® ® ® ® ® ® Tel / Account. Nbrs Central Station 1 CS1 Teleph Nbr. CS1 Acc Nbr. ® ® ® ® ® Protocol CS1 Previous Menu Fast format...
  • Page 23 Programming Map ® ® ® ® ® ® ® ® ® ® Dial Options Dialling Pulse / DTMF ® ® ® ® ® Wait Dial Tone Yes / No ® ® ® ® ® 60 sec / 5 sec Call Interval ®...
  • Page 24 Programming Map ............... . .

  • Page 25: Appendix A. Programming Map

    Programming Map ® ® ® ® ® ® ® ® ® ® Remote Programme Answer Enter Key Stop! Service Acc Nbr Stop Previous Menu ® ® ® ® ® Line Monitor Line Mon On / Off ® ® ® ® ® Options Accept off-hook Always Linefault...

  • Page 26: Appendix Bprogramming Map (With Default Settings)

    6. APPENDIX B PROGRAMMING MAP (with default settings) 6.1 TELEPHONE / ACCOUNT NUMBERS Telephone no. (Centr. station) Account code Receiver Protocol Fast Format Pager Voice Forward to all numbers [Dual / Alternate Rep.] One number All numbers Dialling attempts to telephone no. 1 (1-5) Number: _1 PABX nr.
  • Page 27 Type of alarm per input [Event selection] TD8403 / TD8803 Input Type BA: Burglar Alarm BB: Burglar Inhibit TA: Tamper Alarm HA: Hold-up Alarm PA: Panic Alarm FA: Fire Alarm MA: Medical Alarm ZA: Technical Alarm CG: Partguard CL: Full Alarm...

  • Page 28: Protocol Options

    SIA: one Ackn. per message [1 ackn./ message] Fast Format Channel Options TD8412 / TD8812 Type Handshake Fast Format [Handshake type] 1400 1600 Fast Format Channel Options TD8403 / TD88 Type Handshake Fast Format [Handshake type] 1400 1600 - 28 -...

  • Page 29: Test Calls

    Event type for Pager and Voice Semadigit [Paging] Voice Message number Message number SIA type Paging message 6.6 TEST CALL Test call wait - Delay before first test call (Test delay: 00 - 24 hours) Test cal repeat - Test call repeats every (000 - 254 hours) Test cal Exclusive - Always test 6.7 MISCELLANEOUS Output 1 function (only TD8803/TD8812)
  • Page 30 - 30 -...
  • Page 31 - 31 -...
  • Page 32 Aritech is an ISO9001 certified manufacturer. Aritech reserves the right to change specifications without notice. 14 2406 999-1 - 32 -...
