Mastercare MB-80 Operation Manual
Integrity bath
Hide thumbs
Also See for MB-80:
- Operating instructions manual (26 pages) ,
- Installation manual (5 pages) ,
- Maintenance manual (16 pages)
Related Manuals for Mastercare MB-80
Summary of Contents for Mastercare MB-80

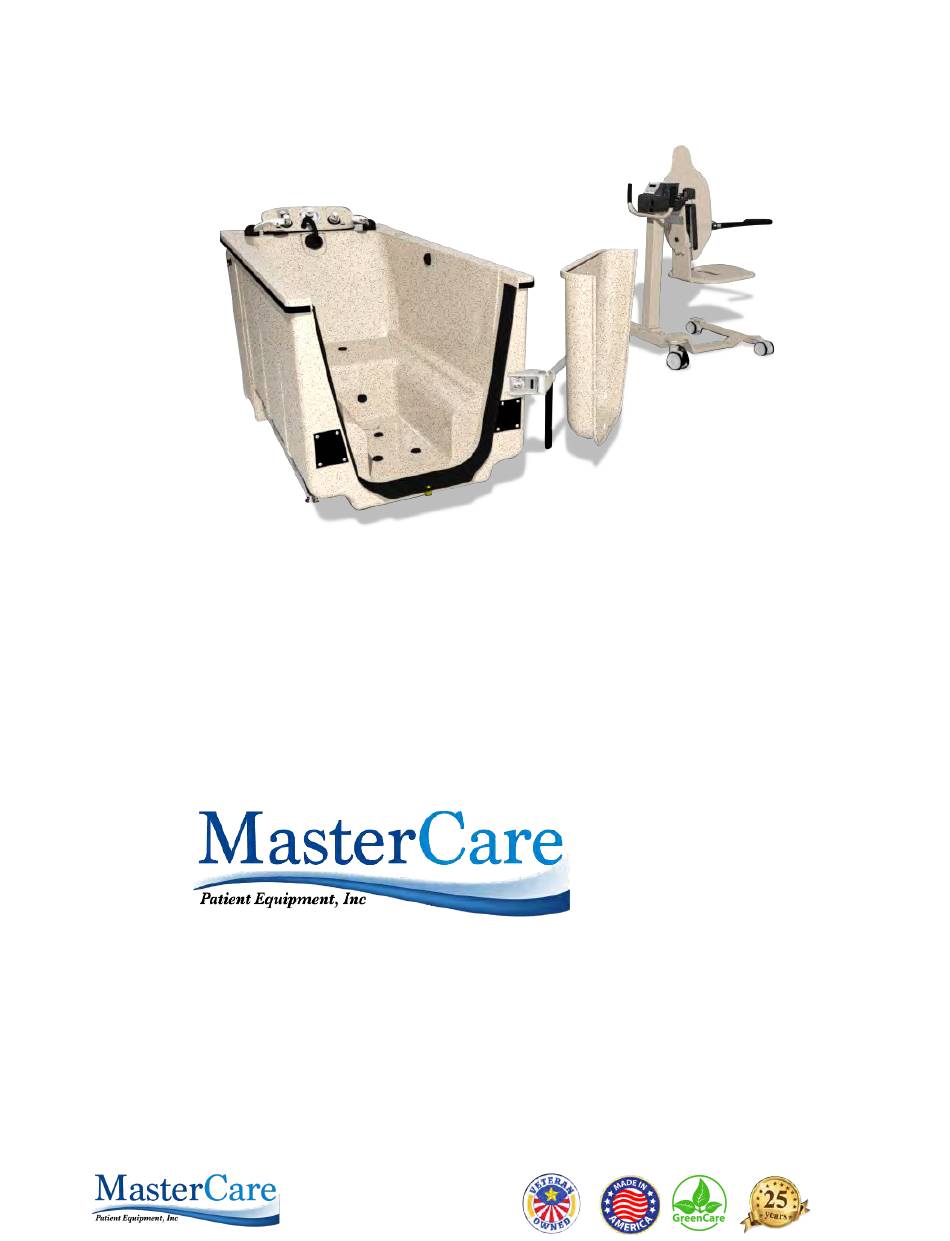

- Page 1 Integrity Bath Model MB-80 Operation Manual Important Safety Instructions Read & Follow All Instructions Thoroughly...
- Page 2 Integrity Bath – Model MB-80 Operation Manual 450 East 32nd Street, Fremont NE 68025 07-06-18 800-798-5867 FAX: 402-563-9102 Page 2 of 14 www.mastercarebath.com...
- Page 3 Integrity Bath – Model MB-80 Operation Manual CAUTION: The caution heading identifies IMPORTANT SAFETY INSTRUCTIONS READ AND important maintenance and operation FOLLOW ALL INSTRUCTIONS THROUGHLY information. Failure to obey a caution warning may result in damage to the Integrity Tub or Transporter and may void the warranty Before using the system to bathe individuals the operator must be trained by a qualified trainer or ARM REST completed the online video training.
- Page 4 Integrity Bath – Model MB-80 Operation Manual 3. Weigh The Individual: If you have a scale on your Tranporter, now is the time to take and record the weight of the individual. Key steps to Get Accurate and Consistent Weights: a. Before you transfer the resident on to the chair push ZERO button below the scale display window to zero out the weight of the chair. b. The seat must not be touching the tub or anything else, the front casters must be in the locked position, all four casters must be on a consistent level floor surface. c. Transfer the resident onto the chair and position them in an upright stable position. If the resident is...
- Page 5 Integrity Bath – Model MB-80 Operation Manual (SM) 5. Turn On The BathAire (SM) Turn on the BathAire by pushing in on the (SM) BathAire ON/OFF Touch Pad located on the upper right side deck of the tub. This will warm up the environment inside the tub. You can increase or decrease the air flow by pushing down on the plus (+) or minus (-) section of the touch pad.
- Page 6 Integrity Bath – Model MB-80 Operation Manual Transfer into the Tub: To transfer the individual into the tub, back the Transporter chair into the tub using the and Transporter Guide Handle. 7. Close The Tub Door: Rotate door to closed position. With both hands on the top of the door, align it so that it is parallel with the BLACK SEAL and SEAL RETAINER. Push gently and evenly with both hands until the door is all the way down and locks into position. You will hear a definite click sound when this happens. Rotate the CAM ARM up to lock the door in place. • 450 East 32nd Street, Fremont NE 68025 07-06-18 800-798-5867 FAX: 402-563-9102 Page 6 of 14 www.mastercarebath.com...
- Page 7 Failure to heed this warning could result in a scalding injury to the individual. 9. Shampoo & Body Wash: During the normal bath cycle you can shampoo the individual’s hair and wash their body with MasterCare’s specially formulated Shampoo and Body Wash. Simply push the touch pad as you are filling the bath to add the Bath Oil directly into the bath water. Hold your hand...
- Page 8 After all areas are thoroughly scrubbed, follow rinsing procedures below. 14. Rinsing Procedures: Open the drain. Allow contact time as detailed on disinfectant/cleaner. MasterCare Disinfectant/cleaner requires 10 minutes which is a common Industry Standard. Use the SHOWER WAND to thoroughly rinse all areas that were in contact with the disinfectant cleaner. If it is the end of the day and you will not be...
- Page 9 Integrity Bath – Model MB-80 Operation Manual Other Considerations When not being used, storage areas should be locked; 4 keys are provided with the system. STORAGE AREAS IN BOTH SIDES OF THE TUB It is recommended that the operations wall chart be posted on the wall next to the control end of the tub for quick reference by the operator of the Integrity Bath System. 450 East 32nd Street, Fremont NE 68025 07-06-18 800-798-5867 FAX: 402-563-9102 Page 9 of 14 www.mastercarebath.com...

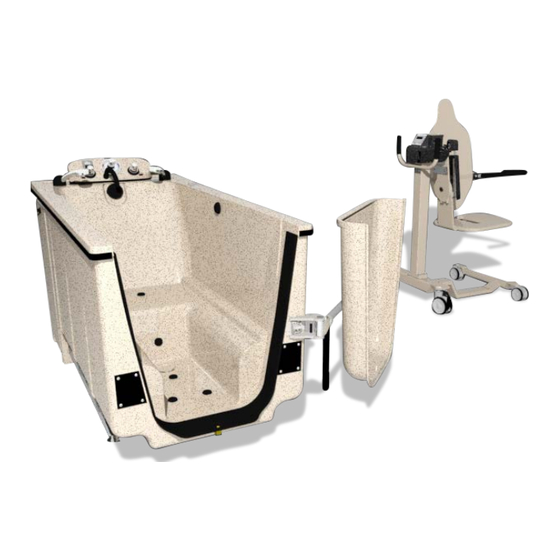

- Page 10 Integrity Bath – Model MB-80 Operation Manual - Key Features and Operating Controls DIGITAL THERMOMETER THERMOSTATIC MIXING VALVE DISINFECTANT WAND TUB FILL ON/OFF VALVE SHOWER WAND BATHAIRE CONTROL PANEL FILL SPIGOT DRAIN HANDLE/OVERFLOW SHOWER ON/OFF VALVE OIL / SHAMPOO DISPENSING HEAD TUB DOOR (CLOSED) KEY LATCH SERVICE ACCESS DOOR OIL / SHAMPOO TUB DOOR DISPENSING CONTROL PANEL (OPEN) DOOR SEAL OPEN/CLOSE ARM DOOR LATCH RELEASE BUTTON 2071 14 Ave – Columbus, NE 68601 07-06-18 800-798-5867 FAX: 402-563-9102 Page 10 of 14 www.mastercarebath.com...
- Page 11 Integrity Bath – Model MB-80 (SM) Operation Manual - BathAire Variable System Control SERVICE (SM) Before activating the BathAire ACCESS DOOR AROMATHERAPY (REMOVED) CAP Remove the SERVICE ACCESS DOOR Remove the AROMATHERAPY ACCESS CAP Insert the selected AROMATHERAPY CARTRIDGE in the AROMATHERAPY CARTRIDGE HOLDER Securely close the cap prior to turning on the BathAire(SM). DO NOT OPEN THE CARTRIDGE, DO NOT place loose beads or liquids in the AROMATHERAPY CARTRIDGE HOLDER Running the BathAire(SM) without the AROMATHERAPY CAP securely in place will cause the system to lose too much air and the aerators (hydromassage action) will not function properly.
- Page 12 However, some products may not be compatible with the system SHAMPOO and may damage components in the system, thereby voiding the BATH OIL BOTTLE warranty. MasterCare offers an extended warranty with your use BOTTLE of MasterCare bathing and Cleaning/disinfection products. Please contact MasterCare customer service @ 800-798-5867 before using non-MasterCare products in your system.
- Page 13 Integrity Bath – Model MB-80 Operation Manual - Disinfectant Dispensing System Operating Instructions: DISINFECTANT WAND How to Connect the Dispensing System to the MasterCare Cleaner/Disinfectant Bottle: 1. Remove the cap and seal under the cap on the one liter jug of cleaner disinfectant. 2. Insert the foot strainer attached to the cap with dispensing hose into the two liter bottle so that the strainer foot is on the bottom of the jug. If replacing an empty one liter container check the strainer at the bottom of the foot strainer. Remove any accumulated...
- Page 14 Integrity Bath – Model MB-80 Operation Manual - Transfer Chair Pads and Belting Instructions Transfer Chair Pads COMFORT PADS MasterCare offers comfort pads as a solution to improve user comfort, especially those with lacerations skin injuries. To place the comfort pads on the seat of the Transporter, only align them on each side of the...
