Commissioning
The LCM is commissioned using a dedicated programme running
on a Windows-based computer. Commissioning settings may then
be directly uploaded from the computer to the LCM or transferred
to an D HP2000 hand-held programmer for easy upload on site.
Communication from the PC can be by means of a USB infrared
transceiver which can signal directly to the LCM's on-board infra-
red port over a short range or via any attached presence detector
from beneath (range: 1-3m).
The main parameters for configuration are tabulated below. These
parameters may be re-programmed any number of times and all
settings will be retained in the event of a power loss.

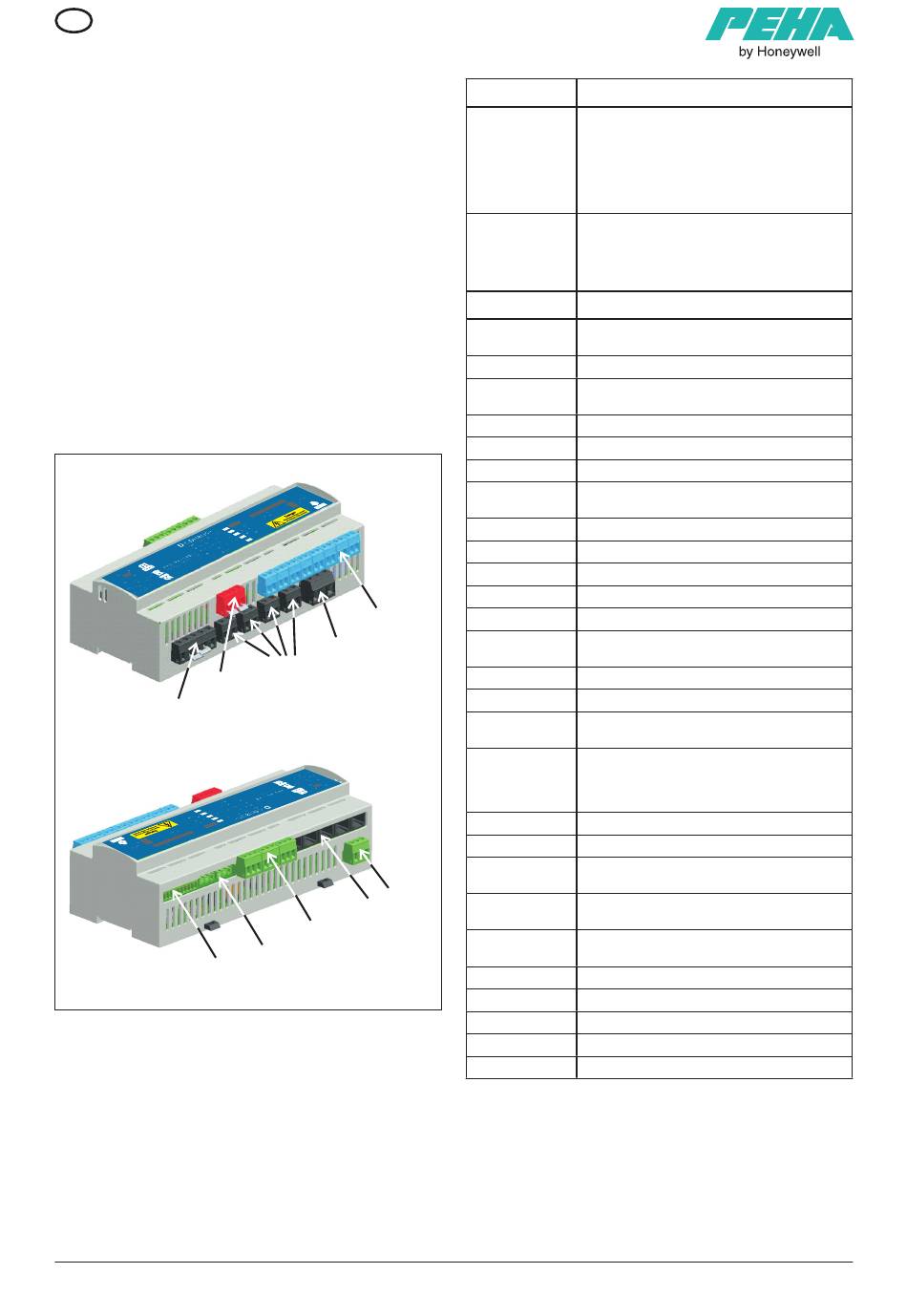

Product Applications

The D CDH8U5 may be used in various different applications, e.g.
warehouse, school, hospital, hotel.
Connections
Comms
Bus (MLS)
Volt-free
Channels
High Density
Additional
Switches
PEHA Lichtsteuerung – PEHA Elektro GmbH & Co. KG a Honeywell Company · Gartenstraße 49 · 58511 Lüdenscheid · Deutschland · www.peha.de · peha@peha.de
Dimming
Channels
Mains
Input
Switched
Live Outputs
Aux 1
Detectors
Switches
1-3
Additional
Switches
Parameter per Box Options
Switch A: 1-5 User may choose any option for Switch A or Switch B from
Switch B: 1-5, following:
Switch 6A*, 6B*, 7A*, 7B* Sustain / Brighten / Dim / Off / Scene 01..06 / On / Partition /
Switch A: 8-12, OneSwitch / On-Dim / Off-Brighten / On-Brighten / Off-Dim /
Switch B: 8-12 Emergency Test / Emergency End (See separate table for detailed
description of Switch Input options)
*
Planned
Detector 1-5: Range Max 100%, Max 75%, Max 50%
High 100%, High 75%, High 50%
Med 100%, Med 75%, Med 50%
Low 100%, Low 75%, Low 50%
Min 100%, Min 75%
Parameter per Channel Options
Ballast Type Non-Dimming, 1 % DSI, 3 % DSI, 10 % DSI, 1 % DALI,
3 % DALI, 10 % DALI
Assigned Detectors Detectors 1-5: Assigned or not assigned to this channel
Assigned Photocell Photocell 1-5 (in Detectors 1-5): Assigned or not assigned to
this channel
Assigned Switches Switch A & B: Assigned or not assigned to this channel
Power Up On / Off
Response Auto, Manual/Bus, Manual Only
Main Time Delay 10 seconds to 96 hours, 20 minutes
(Off Delay)
Bus Connect Yes / No
Zones 1-4 Zone Number 1-100
Corridor 1-2: Begin Zone Number 1-100
Corridor 1-2: End Zone Number 1-100
Global 1-2 Rx Yes / N0
Manual I/P (Local/ Obey locally only / Obey locally and transmit command on
Share for Each Switch) MLS bus
Start Lamps Max / Min
Entry Scene Scene 1-6
Lamp Max 100%, 90%, 80%, 70%, 50%, 45%, 40%, 35%, 30%, 25%,
20%, 15%, 10% Note: Not required for VF or SELV Outputs
When Vacant Off until next occupancy detection
(Turn-Off Options) Minimum, 25% or Scene 6 until next occupancy detection
Minimum, 25% or Scene 6 for 3 x Off Delay
Minimum, 25% or Scene 6 until the building is empty
Fade to Off Yes / N0 Note: Not required for VF or SELV Outputs
Bright Out Yes / N0
Photocell Regulate (100%, 90%, 80%, 70%, 60%, 50%) / Passive /
Active / Disabled Note: Not required for VF or SELV Outputs
Photocell Lower 0-1024 (Used in Regulating Scene 1),
Threshold Note: Not required for VF or SELV Outputs
Photocell Upper 0-1024 (Used in Regulating Scene 1),
Threshold Note: Not required for VF or SELV Outputs
Scene 2 Output 0-100 %
Scene 3 Output 0-100 %
Scene 4 Output 0-100 %
Scene 5 Output 0-100 %
Scene 6 Output 0-100 %
