Install Wireless Adapter; Pci Adapter; Usb Adapter - Pentagram horNET Wi-Fi PCI 11g Installation And Operation Manual

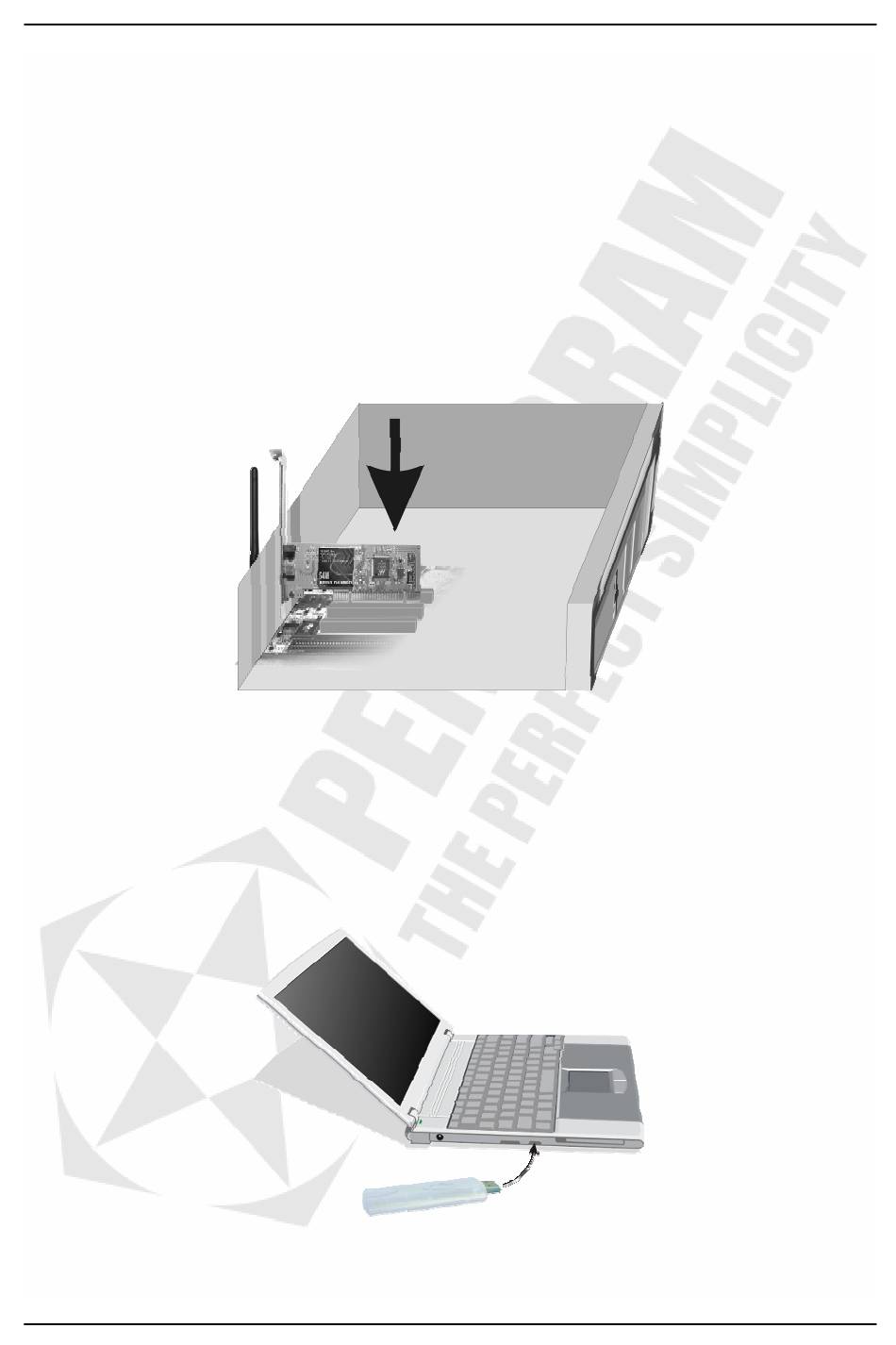

Install Wireless Adapter

PCI Adapter

1.
Open your PC case and locate an available PCI on the motherboard.
2.
Slide the PCI Adapter into the PCI slot. Make sure that all of its pins are touching the
slot's contacts. You may have to apply a bit of pressure to slide the adapter all the way in.
after the adapter is firmly in place, secure its fastening Tab to your PC's chassis with a
mounting screw. Then close your PC.
3.
Attach the external antenna to the adapter's antenna port.
4.
Power on the PC.
5. If the Found New Hardware Wizard displays, click Cancel button and follow instructions
in next section.

USB Adapter

1.
Power on your PC, let the operating system boot up completely, and log in as needed.
2.
Hold the adapter and insert it into a USB slot.
3. If the Found New Hardware Wizard displays, click Cancel button and follow instructions
in next section.
horNET P6121-L4 / P6122-12
7
