Pentagram horNET Wi-Fi PCI 11g Installation And Operation Manual page 12

Profile configuration – Auth. \ Encry. Tab
This Tab contains all Authentication and Encryption settings
Authentication:
•
Open – With the Open method, every wireless station can request authentication.
•
Shared – With Shared authentication, the station requesting authentication must provide
a secret key (which can be obtained from the network administrator) using a secure
channel (independent of the 802.11 wireless communications channel).
•
LEAP – (Light Extensible Authentication Protocol) is an EAP authentication method used
primarily on Cisco Aironet wireless networks. This protocol encrypts transmitted data
using dynamically generated WEP keys, and supports two-way authentication.
•
WPA and WPA2 – IEEE 802.1x protocol is used for authentication and AES or TKIP for
encryption.
•
WPA PSK and WPA2 PSK – Station requesting authentication must provide a WPA
Preshared Key. AES or TKIP are used for encryption.
•

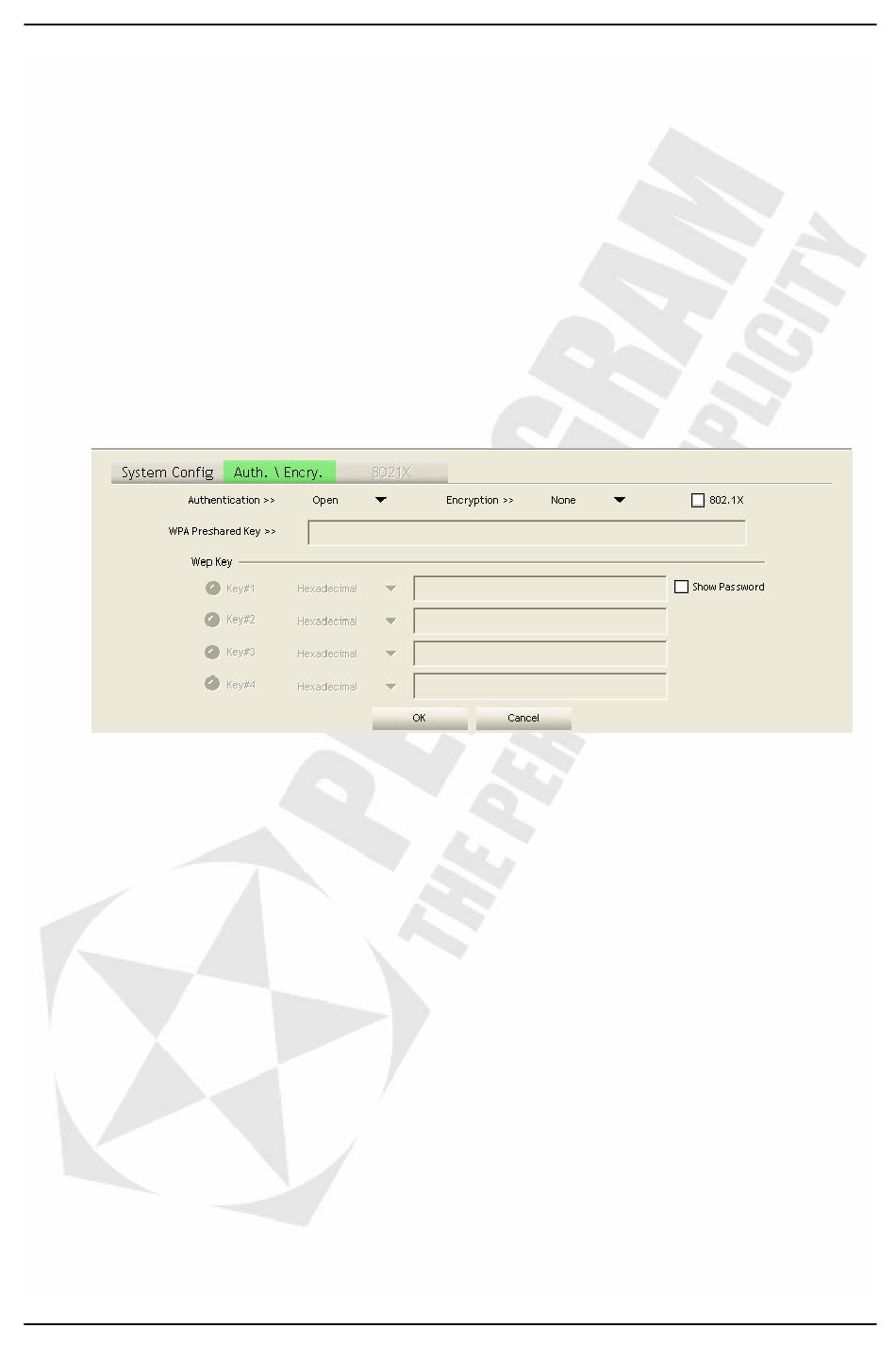

Authentication: Open and Shared
Authentication – Change authentication method.
Encryption – Select None or WEP.
802.1X – Check this option to use IEEE 802.1x for authentication. IEEE 802.1x supports
full user authentication and control. This will also enable 8021X Tab, where 802.1x can
be configured.
WEP Key / Key#1 ... 4 – When you select WEP encryption or Shared authentication
without 802.1x, you need to enter a correct WEP key.
•
If a 64-bit WEP key is used, enter 10 Hexadecimal characters or 5 ASCII
characters.
•
If a 128-bit WEP key is used, enter 26 Hexadecimal characters or 13 ASCII
characters.
Show Password – Select this box if you do not want key characters to be replaced with
asterisks.
OK – Closes profile configuration and saves settings.
Cancel – Closes profile configuration without saving settings.
horNET P6121-L4 / P6122-12
12
