Profile Tab - Pentagram horNET Wi-Fi PCI 11g Installation And Operation Manual

•
Disconnected – Wireless connection not esTablished.
•
[SSID] <--> [BSSID] – Connection esTablished to network with displayed ID's.
Extra Info – Additional information about connection.
Channel – Channel (frequency) used by wireless network.
Authentication – Authentication method used by wireless network.
Encryption – Encryption method used by wireless network.
Network Type:
•
Ad hoc – Connection point-point (peer-to-peer) with other wireless adapter.
•
Infrastructure – Connection with wireless network via AP (Access Point) or wireless
router.
Status – Wireless connection status.
IP Address – IP Address configured or obtained from DHCP server.
Sub Mask – Subnet Mask configured or obtained from DHCP server.
Default Gateway – Gateway IP address configured or obtained from DHCP server.
Link Quality: Shows link quality as a percentage bar (0-100%).
Signal Strength: Shows signal strength as a percentage bar (0-100%).
Noise Level: Shows noise level as a percentage bar (0-100%).
Transmit / Receive – Transmit / receive parameters for active network.

Profile Tab

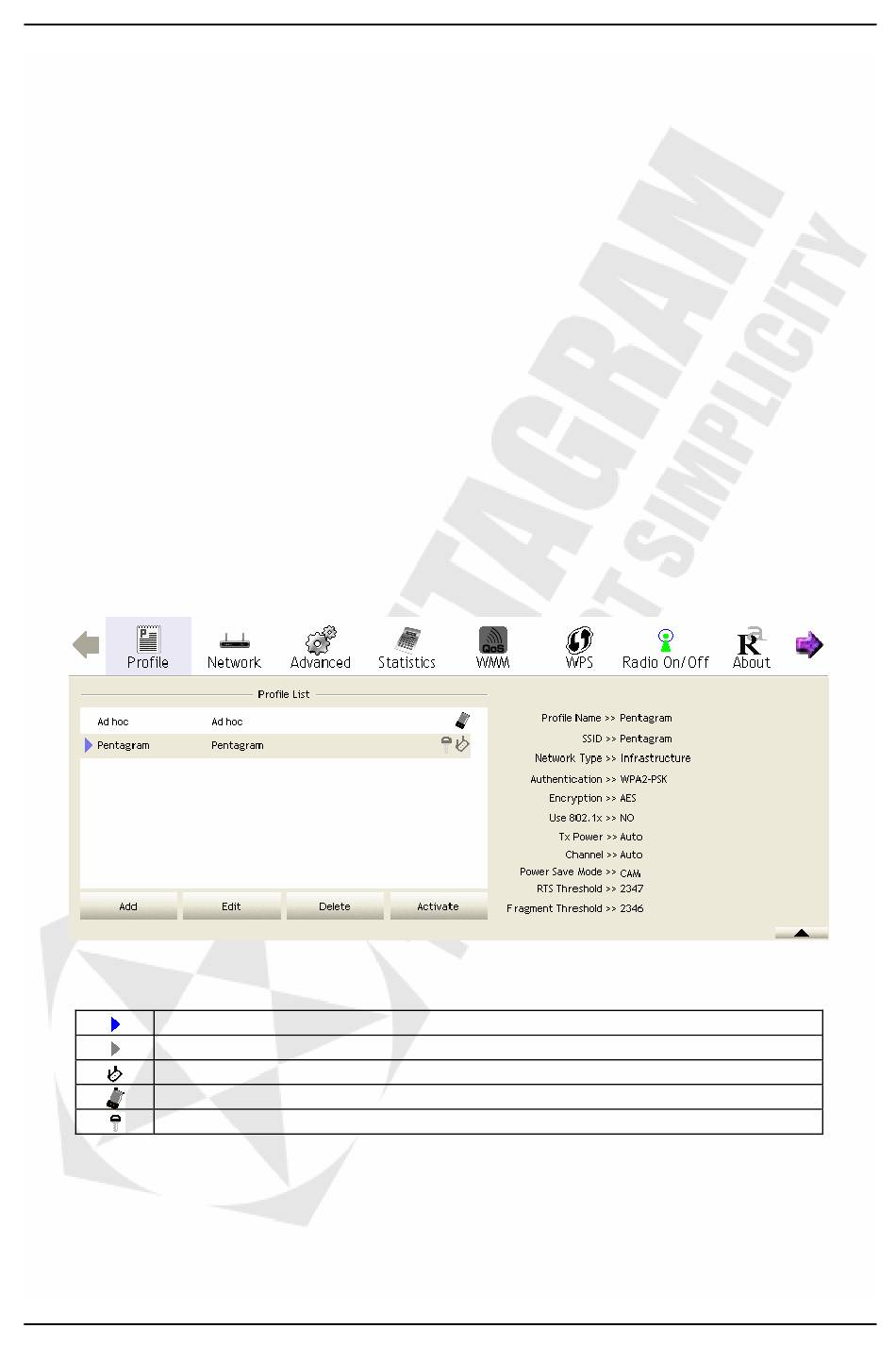

This Tab allows you to create profiles for the most frequently used wireless networks, i.e.
home network, company network or public hotspots. The profiles can be activated as required.
Profile List – This list contains configured profiles. First column contains profile name, second
– network SSID and third – additional network information. Icons on the list means:
Connection with activated profile esTablished successfully
Connection with activated profile not esTablished
Infrastructure Type network
Ad hoc Type network
Secured network
Selected profile information is displayed on the right side of the list.
Add: Click Add to create a new profile. Profile configuration is opened in secondary pane.
Edit: Click Edit to change settings for the selected profile. Profile configuration is opened in
secondary pane.
Delete: Click Delete to delete the selected profile.
Activate: Click Activate to activate the selected profile.
