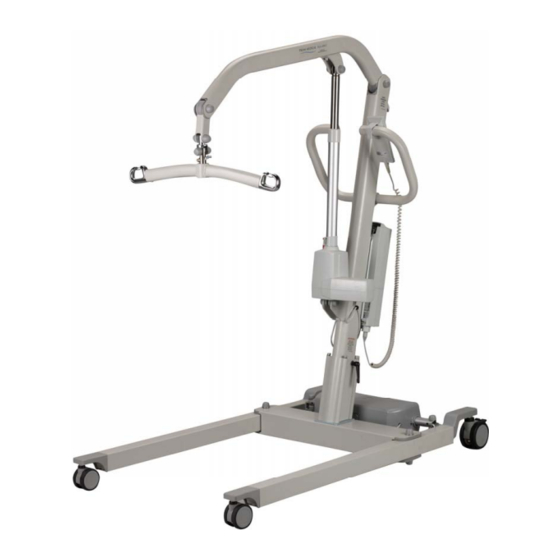

Aluminium mobile hoist

Advertisement

Quick Links

Prism A-205
Aluminium Mobile Hoist
Owner's Manual
Use and Care
Trouble Shooting
Warranty Information
Introduction ...................................................................... 2
Overview .......................................................................... 2
Components of the Mobile hoist ..................................... 3
Component List ............................................................... 4
Specifications .................................................................. 5
Cautions .......................................................................... 6
Assembly Instruction ...................................................... 7
Charging.........................................................13
Start...............................................................13
Forward movement...........................................14
Turning...........................................................14
Leg Adjustment................................................15
Raising and Lowering Boom...............................15
Castors and Braking..........................................15
Basics in transferring an individual............................16
Emergency Stop & Lowering...................................18
Control Box-Usage Information.................................19
Control Box-Service Information................................20
Technical Specifications .........................................21
Do's and Don'ts ....................................................22
Fault finding.........................................................23
General inspection and maintenance.........................24
Points of Attachment - Checklist ..............................25
Service record history.............................................26
Notes..................................................................31
Warranty..............................................................32
Prism Medical UK
Unit 4 Jubilee Business Park
Jubilee Way
Grange Moor
Wakefield
WF4 4TD
Tel:
0845 409 2000
Fax:
0844 980 2261
Website:
www.prismmedical.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A-205 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Prism Medical UK A-205

  • Page 1: Table Of Contents

    Prism A-205 Aluminium Mobile Hoist Introduction ..............2 Overview ................2 Components of the Mobile hoist ........3 Component List ............... 4 Specifications ..............5 Cautions ................6 Assembly Instruction ............7 Operation Charging...……………………………………………...13 Start……...……………………………………………...13 Forward movement….………………………………...14 Turning..………………………………………………...14 Leg Adjustment………………………………………...15 Raising and Lowering Boom………………………….15...
  • Page 2: Introduction

    ”. The is designed to be used in conjunction with Prism Medical UK accessories and slings. Please refer to any user guides supplied with these components and refer to them while reviewing this manual. Should any questions arise from reviewing this manual contact your local authorised Prism Medical UK Representative.
  • Page 3: Components Of The Mobile Hoist

    Components of the Prism A-205 Aluminium Mobile Hoist Boom Mast Up & Down Push Handle Actuator Hand Control Battery Control Box Spreading Actuator Rear Castor with Brake Front Castor QRS Locking Carry Bar A‐205 ‐ Owner’s Manual                                      Rev: 04.2014   ...
  • Page 4: Component List

    Component List Prism A-205 Aluminium Mobile Hoist The following components are included with your new system: • Prism A-205 Aluminium Mobile Hoist • Hand Control • Mobile hoist Integrated Charger • Charger Cable • Owner’s Manual • Multi Function Spanner •...
  • Page 5 24 VDC (2 x 12 VDC) 2.9 Ah, Sealed Lead Acid Batteries: Electric , IPX4 Hand Control: 420mm to 1700mm (for Lowest Mast Setting– A-205 Standard Base) Lifting Range: 41Kgs Hoist Weight: Maximum load of the installed mobile hoist is determined Standard maximum load 205 Kg.
  • Page 6: Specifications

    ● and associated sling (s) are intended only for lifting and transferring of a person. Prism Medical UK will not be responsible for any damage caused by the misuse, neglect or purposeful destruction of the hoist, and/or its associated components.
  • Page 7: Assembly Instruction

    Assembly Instructions: 1. Place the carton/packaging box in a clear working area, open carefully, and remove following items and place on the floor, taking care to protect the finish from damage.  Mast with Boom assembly  Base Assembly with Legs attached ...
  • Page 8 Assembly Instructions: 4. The lifting height can be set at three different levels as shown in Figure 3. In most cases, lifting height at middle hole is recommended. For extra lifting height, the lower most setting (lower hole on the mast) is recommended.
  • Page 9 Assembly Instructions: 6. Remove the screws from the mounting position of push handle on mast assembly. Insert the screws through the push handle bracket, and mount on the Mast assembly as shown in Figure 6, and 7. Figure 7 Figure 6 Attaching QRS Locking Carry Bar to Hoist: To attach QRS locking carry bar to the hoist, tilt the carry bar to almost 90°, and push the latch to the swivel mount holder bolt as shown in Figure 8, and 9.
  • Page 10 Assembly Instructions: Attaching 2 Point QRS Carry Bar to the hoist: Optional Feature 8. To attach 2 Point Quick Release Carry Bar to the Quick Release Hook, tilt the carry bar, and push the dowel pin of carry bar to the latch of QRS hook so that latch will open and dowel pin will be inserted into the QRS hook as shown in Figure 11.
  • Page 11 10. Remove the middle screw from the mounting bracket using 3 mm Allen Key as shown in Figure 15. 11. Press the A-205 CBJ Care Control Box against the mounting bracket and slide it down. The control box should be seated securely on top of the edge of bracket as shown in Figure 16.
  • Page 12 Assembly Instructions: 13. Connect all the cables to the control box as shown in the picture below. A. Connect the Hand Control connector to the large circle on the left side of the control box as shown in the Figure 20. B.
  • Page 13: Operation

    Operation: Caution: Visually inspect the mobile hoist before using for any unusual wear and tear. Should anything look unusual then contact your local representative prior to use. Failure to comply with this caution could result in serious injury to the operator, the individual being lifted and/or damage to the hoist.
  • Page 14: Forward Movement

    Operation: Forward Movement: To move the hoist forward, hold onto the handle bar and push forward. HANDLE DO NOT STAND ON COVER OR DO NOT PUSH ON COVER Turning: When turning the hoist, stand on along one side. With one hand pull gently on the handle bar, and with the other hand push gently away on the lifting arm.
  • Page 15: Leg Adjustment

    Operation: Leg Adjustment: The legs of the A-205 hoist are electrically adjustable for opening, and closing base width. The legs can be opened to enable access around arm chairs or wheel chairs. For transferring through narrow doorways, and passages the hoist legs should be in closed position.
  • Page 16: Basics In Transferring An Individual

    The manual for the sling that was purchased with the hoist should be reviewed in detail prior to at- tempting these steps, as the sling illustrated here may not be the same as the one that was purchased Contact your local authorised Prism Medical UK Representatives if you have any questions or con- cerns.
  • Page 17 Basics in transferring an individual … continued Step 5) The individual may now be raised using the UP button on the hand control. While lifting is in progress the height required in order for the transfer to be completed safely should be closely observed. Ensure that the individual being lifted will not be injured by any obstructions during the initial lifting.
  • Page 18: Emergency Stop & Lowering

    Mechanical emergency lowering: In case of power failure, it is possible to mechanically lower a patient placed in A-205 hoist. In order to lower the boom in an emergency situation, pull up the red lever located directly on the hoist’s actuator.
  • Page 19: Control Box-Usage Information

    Control Box: Usage information The control box of A-205 hoist has an LCD display to give some basic usage information on the display. The following information will be visible on the LCD display of control box. When it is time for service the service symbol will appear on the display will light up and give notice to users about the need for service.
  • Page 20: Control Box-Service Information

    Control Box: Service information The control box of the A-205 hoist has an LCD display to show some basic service data on the display. To get this information, press the “lifting arm up” button on hand control for half a second.
  • Page 21: Technical Specifications

    Technical Specifications– A-205 Standard Base Specifications for the Prism A-205 Aluminium Mobile Hoist A‐205 ‐ Owner’s Manual                                      Rev: 04.2014                                   Page:  21...
  • Page 22: Do's And Don'ts

    DO’S & DON’TS Do charge the battery whenever possible. This will extend the battery life. A large number of cycles can be obtained from operating on the batteries, but battery lifetime is reduced with frequent discharging. Do inspect all cables particularly the mains power cable on the charger for any damage; replace where necessary.
  • Page 23: Fault Finding

    Should problems arise with the use of the hoist, review the following chart. Find the fault and complete the recommended solution. If the fault is not found and/or the solution does not correct the problem contact your local Prism Medical UK authorised Service Provider for service immediately. PROBLEM SOLUTION ...
  • Page 24: General Inspection And Maintenance

     B) Semi-Annually - To be completed at least every 6 months. Should any of these items fail the inspection do not use the hoist. Contact Prism Medical UK or your local qualified service technician for service. Complete the inspection as noted in the “Each Use” section above.
  • Page 25: Points Of Attachment - Checklist

    Mobile hoist - Points of Attachment Inspect the bolts on a monthly basis in the areas shown. Actuator mounting Push Handle Carry bar mount Mounting Bracket Mounting Control Box Actuator mounting Locking Handle A‐205 ‐ Owner’s Manual                                      Rev: 04.2014     ...
  • Page 26: Service Record History

    General Inspection and Maintenance Section. PURCHASE INFORMATION: A-205 Aluminium mobile hoist Product Name: Model #: ________________________ Serial #:________________________ Date of Purchase: _____________________ Purchased From: ___________________________________________________________ (local authorised Prism Medical UK Representative) _______________________________________ Address: __________________________ Postal Code: ________________ City: __________________________ Telephone No: Comments:...
  • Page 27 Service Record History Complete this section after each service, repair inspection and/ or maintenance. Photocopy additional pages as required. Date: _______________________ Time: ________________________ □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ Service Type: _____________________________ _________________________...
  • Page 28 Service Record History Complete this section after each service, repair inspection and/ or maintenance. Photocopy additional pages as required. Date: _______________________ Time: ________________________ □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ Service Type: _____________________________ _________________________...
  • Page 29 Service Record History Complete this section after each service, repair inspection and/ or maintenance. Photocopy additional pages as required. Date: _______________________ Time: ________________________ □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ Service Type: _____________________________ _________________________...
  • Page 30 Service Record History Complete this section after each service, repair inspection and/ or maintenance. Photocopy additional pages as required. Date: _______________________ Time: ________________________ □ Periodic Inspection □ Monthly Inspection □ 6 Month Inspection □ Repair □ Yearly Inspection □ Other:_________ Service Type: _____________________________ _________________________...
  • Page 31: Notes

    NOTES A‐205 ‐ Owner’s Manual                                      Rev: 04.2014                                   Page:  31...
  • Page 32: Warranty

    4) The liability of Prism Medical UK under the terms of this guarantee shall be limited to the replacement of defective part (s) to the sales distributor, dealer, agent, person or entity which purchased the equipment from Prism Medical UK.
