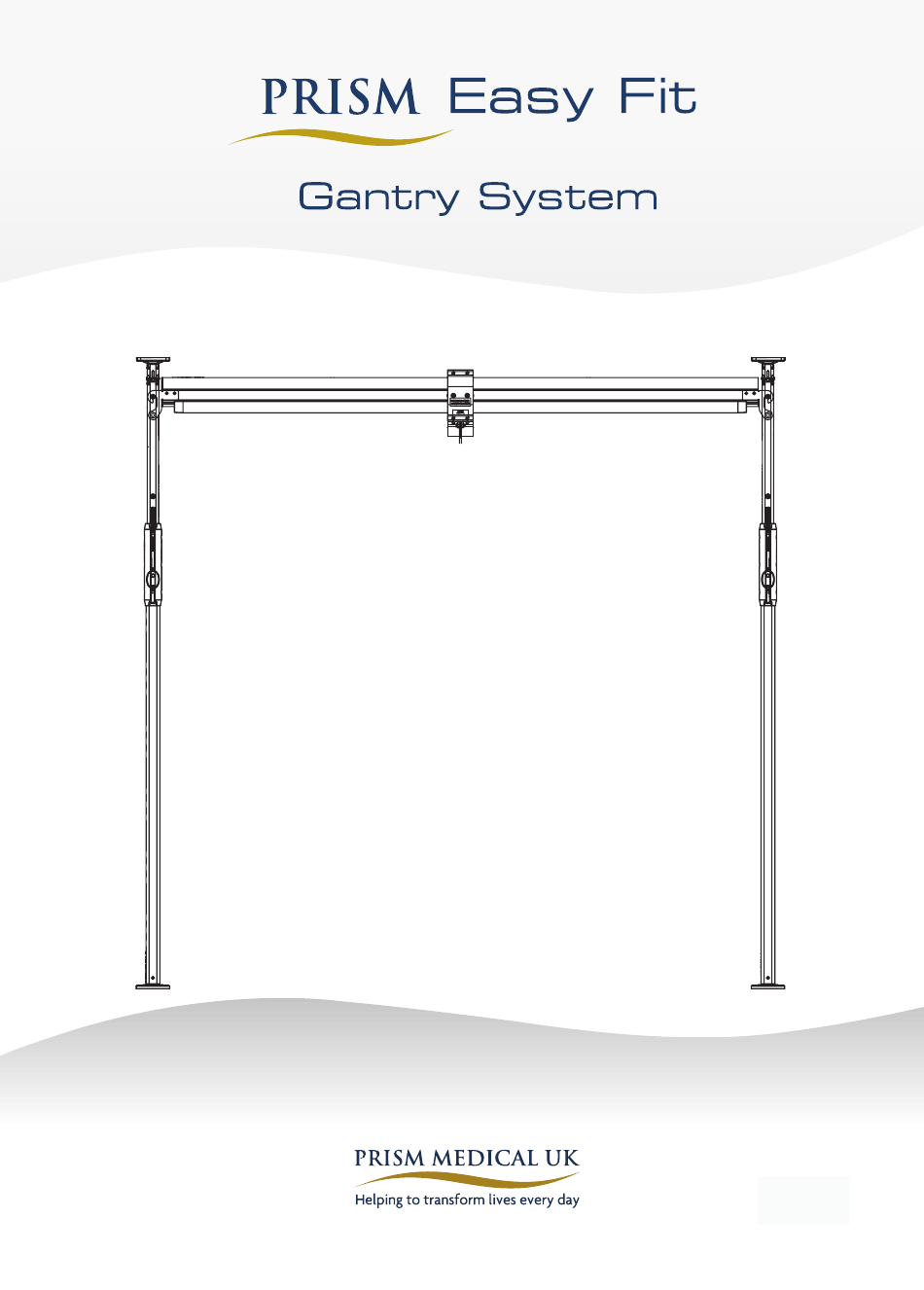

- Page 1 User Manual...
-
Page 2: Table Of Contents
Intended Use/ Overview of the Easy Fit System . . . . . . . . . . . . . . . . -
Page 3: Safety Instructions And Warnings
WITHOUT FIRST UNDERSTANDING THE CONTENTS OF THIS MANUAL Before using this equipment, and to ensure the safe operation of your Easy Fit System, carefully read this entire manual, especially the section on “Cautions” . Failure to comply with warnings in this manual may result in injury to the operator, or the individual being lifted/transferred . -
Page 4: Contraindications
Easy Fit System can be used to lift and transfer individuals from a bed, chair or similar fixture . The length is adjustable and thus can be assembled to suit a wide range of applications . The Easy Fit System is easy to assemble and can be completed by just one person in a short period of time . -
Page 5: Caution
. • Never expose the Easy Fit directly to water . Warranty does not cover any misuse or abuse of the Easy Fit system . Easy Fit should be inspected and maintained on a regular basis . -
Page 6: Components Of The Easy Fit System
2. Components Easy Fit Components Component List Description Quantity Bottom Plate Top Plate Support Post Adjustable Track Post Pins Pin ‘R’ Clips (for post pins) Owner’s manual... -
Page 7: Features And Specifications
514 mm (Upper Track Position) Foot Length 1856 -2726mm Horizontal Travel Ceiling to Trolley Clearance (Lower Track Position) 2046 -2750mm Overall Height 1950 -2820mm Internal Clearance 109 mm Foot Dia Model table for Easy Fit Code Description 1102PH80PEF Easy Fit System... - Page 8 4. Assembly Caution: Before assembling Easy Fit System, the Top Plate, Bottom Plate, Support Posts and Adjustable Track must be visually checked to ensure that there are no missing parts or unusual wear and tear . Top Plate and Bottom Plate should be cleaned with wet cloth and dried before installation .
- Page 9 Assembly continued ..6 . Push the top part of the Support Post upwards 5 . Depress the Ratchet Button to release the Lever, until the Top Plate compresses against the ceiling . then push the Lever up until it meets the Magnet Symbol .
-
Page 10: Assembly Instructions
Assembly (continued)..11 . Repeat the procedure to built the second 12 . Lift the Track (N .B . You may need assistance Support Post and set it perpendicular to the first . from another person and steps to reach) and hook one end on to the Support Post Pins . -
Page 11: Placement Of Easy Fit System
3 . Never place the feet on wet surfaces . 4 . Assemble the Easy Fit so that the Track is directly over the location where the transfer will occur . For beds this is generally between 900mm - 1100mm from the head of the bed . For wheelchairs, living room chairs, recliner chairs and similar furniture this is directly above the middle (centre) of the seat . -
Page 12: Troubleshooting
6. T roubleshooting Should problems arise with the use of the Easy Fit System review the following chart . Find the fault and complete the recommended solution . If the fault is not found and/or the solution does not correct the problem, contact your local authorised dealer for service immediately . - Page 13 Fault Reason Recommended Solution Trolley does not move smoothly 1. Physical damage to track or trolley 1. Visually make sure tracks and wheels are fine along the adjustable track. wheels. and are free of obstacles. 2. Track slots or trolley wheels are not 2.
-
Page 14: Pre-Use Inspection And Maintenance
. Refer to the hoist, accessory and sling user guides for specific details regarding their inspection . Should any of these items below fail the inspection do not use the Easy Fit system - Contact your local authorised dealer for service Visually check for the following: •... -
Page 15: Cleaning Instructions
Recommended Cleaning Instructions The exterior of the Easy Fit System can be cleaned using a damp soapy cloth for general cleaning duties . Please ensure the cloth is damp and not wet . Ensure the exterior of the device is dry after cleaning, dry using a clean dry cloth . -
Page 16: Dilution Chart
Dilution chart Product used Device Concentration Dilution Tablets Contact condition (ppm) qty * per litre time Bactericidal Clean 5 litre 1 minute Dirty 1000 1 litre 5 minutes Yeasticidal Clean 5 litre 1 minute Dirty 1000 1 litre 5 minutes Fungicidal Clean 2000... -
Page 17: Safety Precautions
Safety precautions when using this cleaning agent Handling and Storage: Advice on Safe Handling Avoid contact with skin and eyes . Do not breathe dust / fumes / gas / mist / vapours / spray . Use only with adequate ventilation . Wash hands thoroughly after handling . Mixing this product with acid or ammonia releases chlorine gas Hygiene Measures Handle in accordance with good industrial hygiene and safety practice . -
Page 18: Service Record History
Ensure that the service record is signed and dated each time it is used . • Be sure to have this piece of equipment serviced on a regular basis (6 monthly where LOLER applies) Purchase Information Product name: Easy Fit System Date of purchase: ……………………………………….. Serial No.: ………………………..Purchased from: ……………………………………………………………………………………... -
Page 19: Warranty
……………………………………………… Time: ……………………………………... Date: Periodic inspection Monthly inspection 6 inspection Repair Yearly inspection Other Service Type: ………………………......(printed name)............(signature) Completed by: Company:....................................... Remarks & Action Taken: Device left in a safe usable condition: YES if ‘NO’ explain in remarks the action) taken ………………………………………………... - Page 20 PRISM MEDICAL UK Email: info@prismmedical .co .uk Unit 1 Tel: +44 (0)0844 980 2296 Tir Llwyd Industrial Estate Website: www .prismmedical .co .uk Saint Asaph Avenue Kinmel Bay Rhyl For service please contact: LL18 5JZ +44 (0) 844 980 2296...
