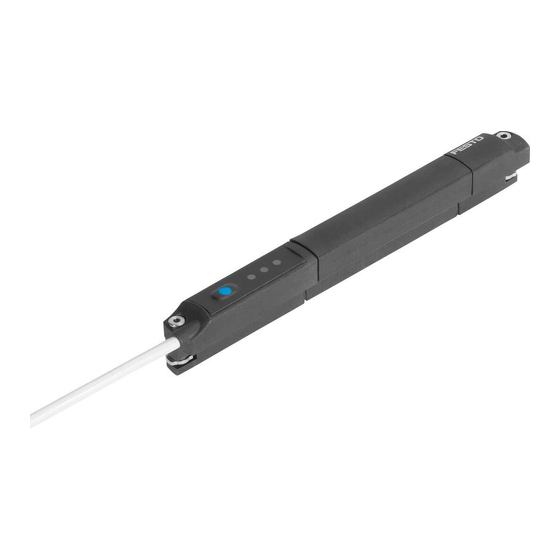

SDAT-MHS-...-SV
Position transmitter
Operating instruc-
tions
8155512
2021-09
[8155514]

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SDAT-MHS-SV Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Festo SDAT-MHS-SV Series

Summary of Contents for Festo SDAT-MHS-SV Series

  • Page 1 SDAT-MHS-...-SV Position transmitter Operating instruc- tions 8155512 2021-09 [8155514]...
  • Page 2 Translation of the original instructions...

  • Page 3: Table Of Contents

    10.4 Technical data for UL/CSA certification ........30 Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 4: About This Document

    The position transmitter is intended for contactless detection of the piston position of magnetic proximity sensing drives and grippers. – Use the position transmitter only for suitable Festo drives and grippers. – Do not place magnetic objects in the immediate vicinity of the position transmitter.

  • Page 5: Additional Information

    – The device shall be supplied from an isolating transformer having a secondary listed fuse rated 1 A. Additional information – Contact the regional Festo contact if you have technical problems è www.festo.com. – Accessories and spare parts è www.festo.com/catalogue.

  • Page 6: Analogue Output

    X = maximum length of the sensing range Signal Description Range – IO-Link operation – – Error, e.g. cable break, parameter error – Piston is outside the sensing range after switching on 0.5 V A, C the operating voltage Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 7 0 mm 60 mm 120 mm 160 mm Analogue signal scaled Analogue signal not scaled Fig. 3: Scaling of the analogue signal using the SDAT-MHS-M160 as an example 1 Teach-in point 1 2 Teach-in point 2 Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 8: Switching Functions And Switching Logic

    1 Teach-in point 1 2 Teach-in point 2 Teach-in points 1 and 2 are linked to the window comparator function. – The position of the teach points determines the window width. – Hysteresis is not selectable or preset. Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 9 – The teach-in value is the centre of the switching path. – The switching path and the hysteresis are not adjustable. Values for the switching path and the hysteresis are stored that correspond to a typical electronic proximity switch on a typical drive. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 10: Switching Output Operating Mode (Sio)

    Even if the analogue output has been scaled, the switching output can still be programmed over the entire sensing range. 4.2.4 IO-Link operating mode Programmed switching signals and the continuous position values (digitally coded analogue values) are transferred in the IO-Link operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 11: Mounting

    – Process data: 12 bit for position data and 4 bit for binary channels è 10 Technical data. – Unshielded standard cables up to 20 m in length can be used. – The device description file IODD for every device length è www.festo.com/sp. – Parameters and function in accordance with Smart-Sensor profile.

  • Page 12: Mechanical Installation

    3. Push the position transmitter in the direction of the piston until the red LED goes out. Hand-tighten the retaining screw. – Max. tightening torque: 0.5 Nm – Tool: internal hexagon socket key (size 1.5 mm). Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 13: Commissioning

    Ä Set-up mode active: the green LED and the yellow LED flash simultaneously. If, after entering the Set-up mode, programming is not completed within 60 s, the position transmitter automatically switches to the operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 14: Scaling Analogue Signal

    Ä The position transmitter switches to the operating mode. To invert the direction of increase of the analogue signal: set teach point 2 (10 V) on the cylinder axis before teach point 1 (0 V). Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 15: Program Switching Output

    Ä The green LED continues flashing, the yellow LED flashes at 1 Hz. 5. Move the piston to the second switching point (teach point 2). 6. Press the operating key once. Ä Switching point 2 is set. Ä The position transmitter switches to the operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 16: Adjusting Proximity Switch

    Ä The green LED flashes 2 times quickly within 2 s. 3. Move the piston to the first switching point (teach point 1). 4. Press the operating key once. Ä Switching point 1 is set. Ä The position transmitter switches to the operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 17: Set Hysteresis Comparator

    Ä The yellow LED lights: the currently set switching logic is N/C. The yellow LED is off: the currently set switching logic is N/O. 3. Press the operating key once. Ä The switching logic is inverted. The position transmitter switches to the operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 18: Block/Unblock Operating Key

    – The position transmitter was rotated 180° in the slot after the magnetic direction was detected as stable. Brief error signals may be detected at the sensor output if automatic correction of the magnetic direction detection is required è 8.2 General malfunctions. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 19: Led Displays In Normal Operation

    Ä The position transmitter switches to the operating mode. If the operating key is not pressed, the device automatically switches to the operating mode after 60 s. LED display Description Green Function No display Deactivated flashes once Window comparator Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 20: Reset Position Transmitter To Factory Setting

    Ä The yellow, green and red LEDs flash at 1 Hz. 3. Press the operating key. Ä The position transmitter is reset to the factory settings. Ä The position transmitter switches to the operating mode. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 21: Analogue Output And Switching Function Operation

    Operation Analogue output and switching function operation Fig. 13: Settings using the operating key (menu structure) Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 22: Malfunctions

    Device is faulty. Replace device. the IO-Link process data. No power supply or impermis- Maintain operating voltage sible operating voltage. range. Short circuit or overload at the Eliminate short circuit or over- switching output. load. Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 23: Disassembly

    4. Remove the position transmitter from the T-slot of the drive. Technical data 10.1 General SDAT-MHS-... Conformity è www.festo.com/sp Note on materials halogen-free Input signal/measuring element Sensing range [mm] Signal processing Sampling interval typ. [ms] Max. traverse velocity [m/s] Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 24 [°C] -25 … +70 Ambient temperature with flexible cable [°C] -20 … +70 installation Degree of protection (to EN 60529) IP65/IP68 Condition with IP68: test duration 24 h 1) Type-dependent Tab. 9: Technical data SDAT-MHS Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 25: Io-Link

    Power range [mm] sensing range sensing range 0 … 50 1044 1064 4095 0 … 80 1659 1679 4095 M100 0 … 100 2068 2088 4095 Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 26 Integer 0x000C Device Access 0 = unlocked 2 byte Record Locks 1 = locked 0x0010 Vendor Name Festo SE & Co. KG 64 byte String 0x0011 Vendor Text http:// 64 byte String www.festo.com 0x0012 Product Name SDAT-MHSM50-1L- 64 byte String SA-E-0.3-M8...
  • Page 27 — Reset Warnings — Teach SP1 BDC1 — Teach SP2 BDC1 — Teach SP1 BDC2 — Teach SP2 BDC2 — Teach SP1 BDC3 — Teach SP2 BDC3 — Teach SP1 BDC4 — Teach SP2 BDC4 Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 28 Analogue current output 0x3000 Scale Start R/W R/W 2 byte Unsigned Integer Scale End 1063 2 byte PDV 0: normal, 1: inverted, not for analogue current output 0x3010 PDV Invertierung R/W R/W 1 byte Unsigned Integer BDC3 Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 29 1) Value range è Tab. Value range of the process data variables (PDV) for the device lengths Tab. 17: Coding switch point parameter Error code Mode Type Comments 0x4000 (Dis)appear Error Temperature fault 0x5000 (Dis)appear Error Hardware defective 0x5111 (Dis)appear Warning Voltage too low 0x6320 (Dis)appear Error Parameter error Festo — SDAT-MHS-...-SV — 2021-09...

  • Page 30: I-Port

    Technical data for UL/CSA certification Electrical and environmental ratings UL/CSA Input Voltage Max. 30 V DC, Class 2 Input current 160 mA/max. 4.8 W Analog output 0 … 10 V Transistor output Max. 30 V DC, 100 mA G.P. Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 31 Technical data Electrical and environmental ratings UL/CSA Maximum Ambient Temperature 70 °C/158 °F NEMA enclosure type number Type 1 (Enclosure Type Rating) Tab. 21: Electrical data and ambient conditions UL/CSA Festo — SDAT-MHS-...-SV — 2021-09...
  • Page 32 Copyright: Festo SE & Co. KG 73734 Esslingen Ruiter Straße 82 Deutschland Phone: +49 711 347-0 Internet: © 2021 all rights reserved to Festo SE & Co. KG www.festo.com...
