Canon PIXMA iP1700 Easy Setup Instructions

1
Unpack the Printer
1 Carefully remove all items from the box.

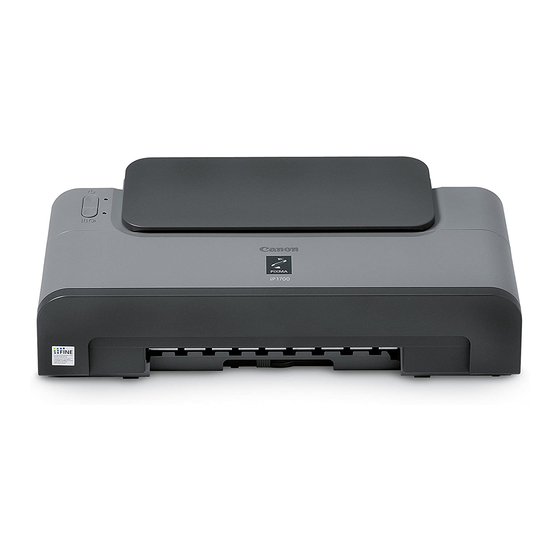

PIXMA iP1700 Photo Printer
Power Cord
FINE Cartridges
PG-40
CL-41
Documentation and Software Kit

Start Here

Easy Setup Instructions
2
Prepare the Printer
1 Open the Paper Support and the Front Cover, then remove
the Protective Material on the right side.
Protective Material
2 Plug the Power Cord into the back of the printer and connect
the other end to a power outlet.
Power Cord
NOTE: Do NOT connect the USB cable at this stage.
3 TURN THE PRINTER ON. The printer will initialize. Wait until
the POWER lamp remains fully lit.
3
Install the FINE Cartridges
1 Open the Front Cover. The FINE Cartridge Holder automatical-
ly moves to the left.
Serial Number
2 Write down the serial number. You will need this to register
the product.
Remove the Color FINE Cartridge (CL-41) from its box.
3
4 Remove the Protective Tape gently.
Electrical Contacts
To the FINE Cartridge Holder
Protective Tape
Print Head Nozzles
NOTE:
·Do not touch the electrical contacts or Print Head Nozzles on
a FINE Cartridge. The printer may not print out properly if you
touch it.
·Do not reattach the Protective Tape once you have removed it.
·Handle the removed Protective Tape carefully to avoid getting
your hands dirty or staining surrounding work area.
Insert the Color FINE Cartridge slightly slanted into the right
5
slot (C).
Photo Printer
Push up the FINE Cartridge until it clicks into place.
6
IMPORTANT: For correct printer operation, make sure the FINE
Cartridge is secure in slots.
7 Repeat the procedure for the Black FINE Cartridge (PG-40),
inserting it into the left slot (B).
8 Close the Front Cover.
NOTE: The printer will perform a Print Head Cleaning after the
cover is closed. Wait until the process is complete before pro-
ceeding.
IMPORTANT: Wait until the preparatory operation is complete;
this takes about one to two minutes.
Continue with Step 4
on side two.
