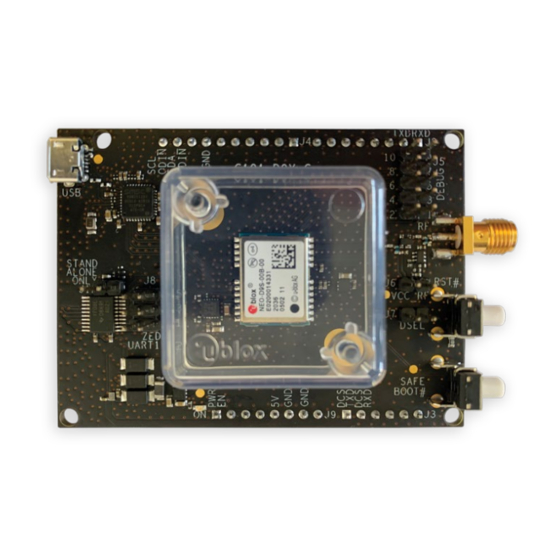

C101-D9S
Application board (rev. C)
User guide
Abstract
This document explains the use of C101-D9S application board. The C101-D9S board enables
customers to evaluate L-band GNSS correction services with the NEO-D9S correction data receiver.
UBX-20031865 - R01
C1-Public
www.u-blox.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C101-D9S and is the answer not in the manual?

Questions and answers

Related Manuals for u-blox C101-D9S

Summary of Contents for u-blox C101-D9S

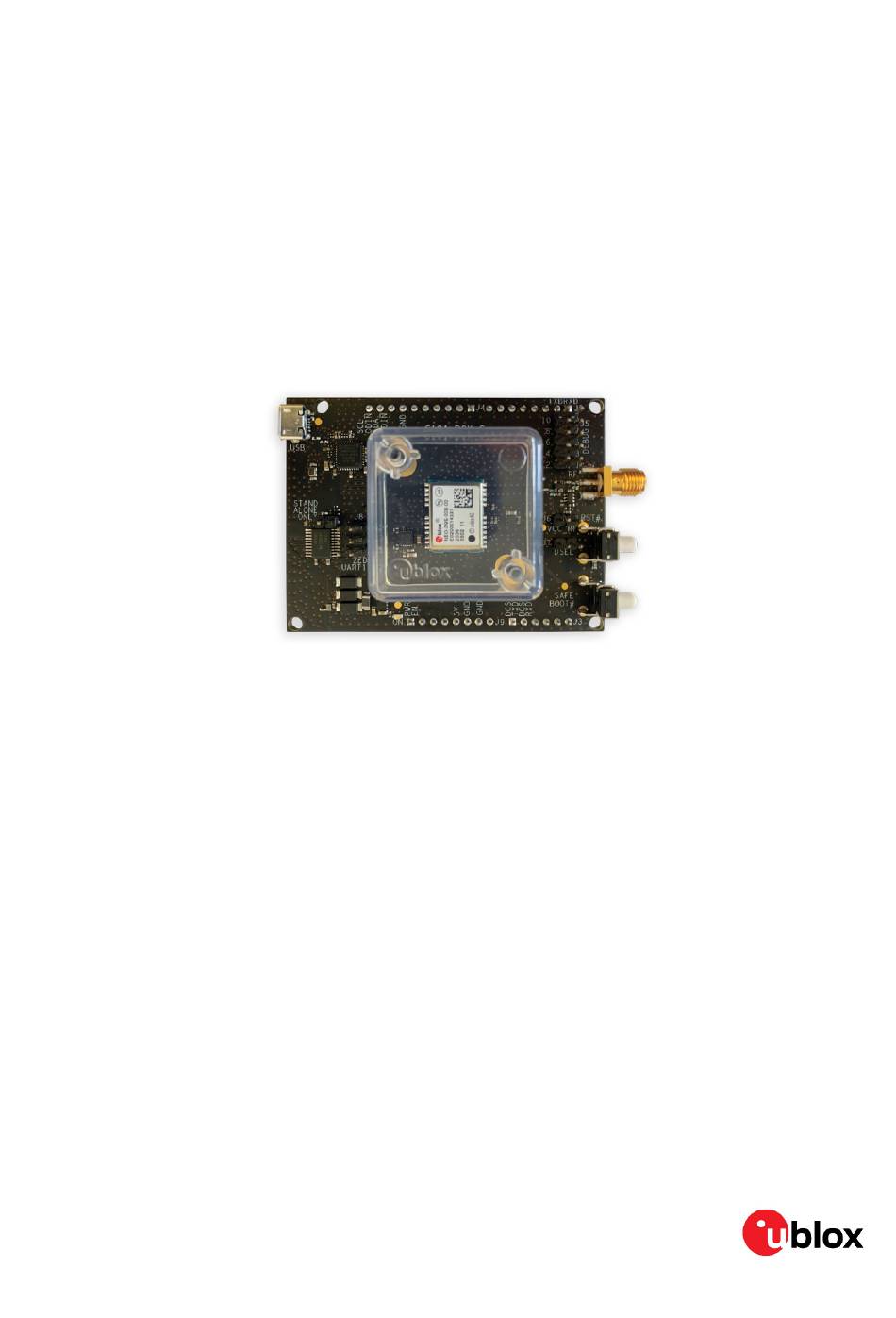

  • Page 1  C101-D9S Application board (rev. C) User guide Abstract This document explains the use of C101-D9S application board. The C101-D9S board enables customers to evaluate L-band GNSS correction services with the NEO-D9S correction data receiver. UBX-20031865 - R01 www.u-blox.com C1-Public...

  • Page 2: Document Information

    The information contained herein is provided “as is” and u-blox assumes no liability for its use. No warranty, either express or implied, is given, including but not limited to, with respect to the accuracy, correctness, reliability and fitness for a particular purpose of the information.

  • Page 3: Table Of Contents

    Contents Document information ..........................2 Contents ................................3 Introduction ............................. 4 1.1 Package contents ............................4 C101-D9S product overview ......................5 2.1 Components ..............................5 2.2 Jumpers ................................ 6 C101-D9S standalone operation ...................... 7 Appendix ................................9 Glossary ..............................9 NEO-D9S L-band configurations ......................

  • Page 4: Introduction

    C101-D9S - User guide 1 Introduction The C101-D9S board is a convenient tool that allows customers to become familiar with the u-blox NEO-D9S L-band correction data receiver. The board provides facilities for evaluating the product and demonstrating its key features.

  • Page 5: C101-D9S Product Overview

    2 C101-D9S product overview 2.1 Components C101-D9S houses the NEO-D9S L-band correction data receiver. The board is powered from the USB cable connection or via Arduino shield. The main components of the board are listed below and shown in Figure 1 and Figure 2: •...

  • Page 6: Jumpers

    • J8: This jumper switches the communication from the UART2 of the NEO-D9S to the J2 or J3 connector of the Arduino shield (refer to Appendix D for further details). Figure 3: C101-D9S jumpers overview For further details, see the C101-D9S schematic in Appendix E. UBX-20031865 - R01 C101-D9S product overview...

  • Page 7: C101-D9S Standalone Operation

    C101-D9S - User guide C101-D9S standalone operation This section provides some quicksteps to enable NEO-D9S standalone operation, and connecting via u-center (see u-center user guide [3]). • Connect the supplied L-band antenna to the RF SMA connector. Ensure good visibility of the GEO communication satellites.
  • Page 8 C101-D9S - User guide Figure 6: UBX-MON-VER message NEO-D9S needs to be properly configured to receive the L-band signal correction data. See Appendix B for the default NEO-D9S L-band configuration, which can be adapted for other services. The messages UBX-MON-PMP and UBX-RXM-PMP (see Figure 7 and Figure 8) can be polled or enabled to check respectively the reception of the signal and the decoded correction data.

  • Page 9: Appendix

    • CFG-PMP-USE_PRESCRAMBLING = 0 (false) • CFG-PMP-UNIQUE_WORD = 16238547128276412563 The NEO-D9S correction data receiver is fully compliant with the u-blox configuration concept. The messages UBX-CFG-VALSET, UBX-CFG-VALGET and UBX-CFG-VALDEL are used to configure the above keys. See the NEO-D9S Integration manual [1] for further details.

  • Page 10: Dneo-D9S Uart2 To Arduino Pins

    See the NEO-D9S Integration manual [1] for further details. D NEO-D9S UART2 to Arduino pins Depending on the position of the jumper J8 on the C101-D9S board, communication with the UART2 port of the NEO-D9S is enabled on the Arduino connector pins as shown below:...

  • Page 11: E C101-D9S Schematics

    Arduino connectors on the C101-D9S board. Figure 9 Figure 9: C101-D9S Arduino connectors E C101-D9S schematics The following pages show the complete schematics for the C101-D9S evaluation board. UBX-20031865 - R01 Appendix Page 11 of 15...
  • Page 12 C101-D9S - User guide UBX-20031865 - R01 Appendix Page 12 of 15 C1-Public...
  • Page 13 C101-D9S - User guide UBX-20031865 - R01 Appendix Page 13 of 15 C1-Public...

  • Page 14: Related Documentation

    C101-D9S - User guide Related documentation NEO-D9S Integration manual, UBX-19026111 ZED-F9P Integration manual, UBX-18010802 u-center User guide, UBX-13005250 ☞ For product change notifications and regular updates of u-blox documentation, register on our website, www.u-blox.com. Revision history Revision Date Name Comments 30-Jul-2020 dama...

  • Page 15: Contact

    C101-D9S - User guide Contact For complete contact information, visit us at www.u-blox.com. u-blox Offices North, Central and South America Headquarters Asia, Australia, Pacific Europe, Middle East, Africa u-blox America, Inc. u-blox Singapore Pte. Ltd. u-blox AG Phone: +1 703 483 3180...
