Nuvoton NuMaker-M471KI User Manual

Numicro m471 series arm cortex-m 32-bit microcontroller
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

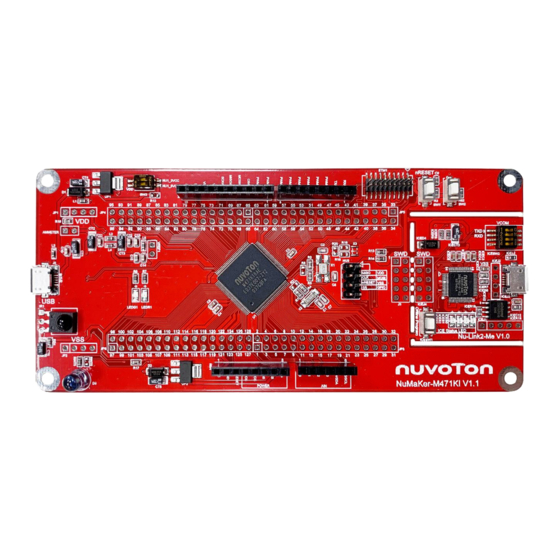

NuMaker-M471KI
®
®
ARM
Cortex
-M
32-bit Microcontroller
NuMaker-M471KI
User Manual
®
NuMicro
M471 Series
The information described in this document is the exclusive intellectual property of
Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton.
Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system
design. Nuvoton assumes no responsibility for errors or omissions.
All data and specifications are subject to change without notice.
For additional information or questions, please contact: Nuvoton Technology Corporation.
www.nuvoton.com
Nov. 4, 2020
Page 1 of 47
Rev 1.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuMaker-M471KI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Nuvoton NuMaker-M471KI

Summary of Contents for Nuvoton NuMaker-M471KI

  • Page 1 The information described in this document is the exclusive intellectual property of Nuvoton Technology Corporation and shall not be reproduced without permission from Nuvoton. Nuvoton is providing this document only for reference purposes of NuMicro microcontroller based system design. Nuvoton assumes no responsibility for errors or omissions.

  • Page 2: Table Of Contents

    3.9.1 Status LEDs ..................25 3.9.2 Quick Start ................26 Toolchains Supporting ..............26 Nuvoton Nu-Link Driver Installation ............26 BSP Firmware Download ..............28 Hardware Setup ................28 Find the Example Project ..............30 Execute the Project under Toolchains ............30 Keil MDK ..................... 30 4.6.1...
  • Page 3 NuMaker-M471KI NuMaker-M471KI Schematics ............42 Nu-Link2-Me ..................42 M471 platform ................43 Extension Connector ................44 PCB Placement ................45 REVISION HISTORY ..............46 Nov. 4, 2020 Page 3 of 47 Rev 1.00...
  • Page 4 Figure 3-5 External Power Supply Sources on Nu-Link2-Me ............20 Figure 3-6 External Power Supply Sources on M471 platform ............21 Figure 3-7 Detach the Nu-Link2-Me from NuMaker-M471KI ............22 Figure 3-8 Wiring between Ammeter Connector and Ammeter ............. 24 Figure 4-1 Nu-Link USB Driver Installation Setup ................
  • Page 5 NuMaker-M471KI Figure 4-28 NuEclipse Debug Mode ....................41 Figure 4-29 Debug Message on Serial Port Terminal Windows ............ 41 Figure 5-1 Nu-Link2-Me Circuit ...................... 42 Figure 5-2 M471 platform Circuit....................43 Figure 5-3 Extension Connectors Circuit ..................44 Figure 5-4 Front Placement ......................45 Figure 5-5 Rear Placement ......................
  • Page 6 NuMaker-M471KI List of Tables Table 3-1 Extension Connectors ....................11 Table 3-2 M471KI8AE Full-pin Extension Connectors and GPIO Function List ......15 Table 3-3 Arduino UNO Extension Connectors and M471KI8AE Mapping GPIO List ....17 Table 3-4 Vin Power Source ......................18 Table 3-5 5 V Power Sources ......................

  • Page 7: Overview

    OVERVIEW The NuMaker-M471KI is a development board for Nuvoton NuMicro M471KI, M471VI, and M471VG microcontrollers. The NuMaker-M471KI consists of two parts: an M471 target board and an on-board Nu-Link2-Me debugger and programmer. The NuMaker-M471KI is designed for project evaluation, prototype development and validation with power consumption monitoring function.

  • Page 8: Features

    NuMaker-M471KI FEATURES  NuMicro ® M471KI8AE microcontroller with function compatible with:  M471VI8AE  M471VG7AE  M471KI8AE extension connectors  Arduino UNO compatible extension connectors  Ammeter connector for measuring the microcontroller’s power consumption  Flexible board power supply: ...

  • Page 9: Hardware Configuration

    Target Chip: M471KI8AE Target Chip Extension Connector Figure 3-1 Front View of NuMaker-M471KI Figure 3-1 shows the main components and connectors from the front side of NuMaker-M471KI. The following lists components and connectors from the front view:  Target chip: M471KI8AE (U1) ...

  • Page 10: Rear View

    NuMaker-M471KI Rear View Figure 3-2 shows the main components and connectors from the rear side of NuMaker-M471KI. The following lists components and connectors from the rear view:  Nu-Link2-Me  MCUVCC Power Switch (ICEJPR1)  ICEVCC Power Switch (ICEJPR2) ICEVCC Power Switch...

  • Page 11: Extension Connectors

    Arduino UNO compatible pins on the NuMaker-M471KI. Table 3-1 Extension Connectors 3.3.1 Pin Assignment for Extension Connectors The NuMaker-M471KI provides the M471KI8AE onboard and extension connectors (JP3, JP4, JP5 and JP6). The Figure 3-3 shows the M471KI8AE extension connectors. Pin33 ~ Pin64...
  • Page 12 NuMaker-M471KI M471KI8AE Header Pin No. Function PB.5/EADC0_CH5/ACMP1_N/SPI1_MISO/I2C0_SCL/UART5_TXD/EPWM0_CH0/UART2_TXD/TM JP3.1 0/INT0 PB.4/EADC0_CH4/ACMP1_P1/SPI1_MOSI/I2C0_SDA/UART5_RXD/EPWM0_CH1/UART2_RXD/T JP3.2 M1/INT1 PB.3/EADC0_CH3/ACMP0_N/SPI1_CLK/UART1_TXD/UART5_nRTS/EPWM0_CH2/I2C1_SCL/EP JP3.3 WM0_BRAKE0/TM2/INT2 PB.2/EADC0_CH2/ACMP0_P1/SPI1_SS/UART1_RXD/UART5_nCTS/EPWM0_CH3/I2C1_SDA/TM JP3.4 3/INT3 JP3.5 PC.12/UART0_TXD/I2C0_SCL/EPWM1_CH0/ACMP0_O JP3.6 PC.11/UART0_RXD/I2C0_SDA/EPWM1_CH1/ACMP1_O JP3.7 PC.10/UART3_TXD/EPWM1_CH2 JP3.8 PC.9/UART3_RXD/EPWM1_CH3 PB.1/EADC0_CH1/SPI1_I2SMCLK/UART2_TXD/I2C1_SCL/EPWM0_CH4/EPWM1_CH4/EPWM0_ JP3.9 BRAKE0 PB.0/EADC0_CH0/UART2_RXD/SPI0_I2SMCLK/I2C1_SDA/EPWM0_CH5/EPWM1_CH5/EPWM0_ JP3.10 BRAKE1 PI.0/UART0_TXD/I2C0_SCL/UART5_TXD/UART2_TXD/I2C1_SCL/EPWM0_CH4/EPWM1_CH0/A JP3.11 CMP0_O PI.1/UART0_RXD/I2C0_SDA/UART5_RXD/UART2_RXD/I2C1_SDA/EPWM0_CH5/EPWM1_CH1/A JP3.12 CMP1_O JP3.13 PA.11/EADC0_CH23/ACMP0_P0/BPWM0_CH0/EPWM0_SYNC_OUT/TM0_EXT JP3.14...
  • Page 13 NuMaker-M471KI M471KI8AE Header Pin No. Function JP5.1 PH.4/SPI1_MISO JP5.2 PH.5/SPI1_MOSI JP5.3 PH.6/SPI1_CLK JP5.4 PH.7/SPI1_SS JP5.5 PF.3/UART0_TXD/I2C0_SCL/XT1_IN/BPWM1_CH0 JP5.6 PF.2/UART0_RXD/I2C0_SDA/XT1_OUT/BPWM1_CH1 JP5.7 JP5.8 JP5.9 PE.8/UART2_TXD/EPWM0_CH0/EPWM0_BRAKE0/TRACE_DATA3 JP5.10 PE.9/UART2_RXD/EPWM0_CH1/EPWM0_BRAKE1/TRACE_DATA2 JP5.11 PE.10/UART3_TXD/EPWM0_CH2/EPWM1_BRAKE0/TRACE_DATA1 JP5.12 PE.11/UART3_RXD/UART1_nCTS/EPWM0_CH3/EPWM1_BRAKE1/TRACE_DATA0 JP5.13 PE.12/UART1_nRTS/EPWM0_CH4/TRACE_CLK JP5.14 PE.13/I2C0_SCL/UART4_nRTS/UART1_TXD/EPWM0_CH5/EPWM1_CH0/BPWM1_CH5 JP5.15 PC.8/I2C0_SDA/UART4_nCTS/UART1_RXD/EPWM1_CH1/BPWM1_CH4 PC.7/SPI1_MISO/UART4_TXD/UART0_nCTS/I2C1_SMBAL/EPWM1_CH2/BPWM1_CH0/TRACE_ JP5.16 DATA3/TM0/INT3 PC.6/SPI1_MOSI/UART4_RXD/UART0_nRTS/I2C1_SMBSUS/EPWM1_CH3/BPWM1_CH1/TRAC JP5.17 E_DATA2/TM1/INT2 JP5.18...
  • Page 14 NuMaker-M471KI M471KI8AE Header Pin No. Function JP4.2 PF.1/ICE_CLK JP4.3 PD.9/UART2_nCTS JP4.4 PD.8/UART2_nRTS JP4.5 PC.5/UART2_TXD/I2C1_SCL/UART4_TXD/EPWM1_CH0 JP4.6 PC.4/SPI1_I2SMCLK/UART2_RXD/I2C1_SDA/UART4_RXD/EPWM1_CH1 JP4.7 PC.3/SPI1_MISO/UART2_nRTS/I2C0_SMBAL/UART3_TXD/EPWM1_CH2 JP4.8 PC.2/SPI1_MOSI/UART2_nCTS/I2C0_SMBSUS/UART3_RXD/EPWM1_CH3 JP4.9 PC.1/SPI1_CLK/UART2_TXD/I2C0_SCL/EPWM1_CH4/ACMP0_O/EADC0_ST JP4.10 PC.0/SPI1_SS/UART2_RXD/I2C0_SDA/EPWM1_CH5/ACMP1_O JP4.11 PI.2/UART1_TXD/I2C0_SCL/UART5_TXD/I2C1_SCL/UART4_TXD/BPWM0_CH5/EADC0_ST JP4.12 PI.3/UART1_RXD/I2C0_SDA/UART5_RXD/I2C1_SDA/UART4_RXD/BPWM0_CH4 JP4.13 PG.9/BPWM0_CH5 JP4.14 PG.10/BPWM0_CH4 JP4.15 PG.11/BPWM0_CH3 JP4.16 PG.12/BPWM0_CH2 JP4.17 PG.13/BPWM0_CH1 JP4.18 PG.14/BPWM0_CH0 JP4.19...

  • Page 15: Table 3-2 M471Ki8Ae Full-Pin Extension Connectors And Gpio Function List

    NuMaker-M471KI M471KI8AE Header Pin No. Function JP6.5 PE.3/EPWM0_CH4/BPWM0_CH1 JP6.6 PE.2/EPWM0_CH5/BPWM0_CH0 JP6.7 PI.4/UART4_TXD/UART0_TXD/UART1_TXD/EPWM0_CH5/CIR0_RXD/ACMP0_O JP6.8 PI.5/UART4_RXD/UART0_RXD/UART1_RXD/EPWM0_CH4/ACMP1_O JP6.9 PE.1/SPI1_MISO/UART3_TXD/I2C1_SCL/UART4_nCTS JP6.10 PE.0/SPI1_MOSI/UART3_RXD/I2C1_SDA/UART4_nRTS JP6.11 PH.8/SPI1_CLK/UART3_nRTS/I2C1_SMBAL/UART1_TXD JP6.12 PH.9/SPI1_SS/UART3_nCTS/I2C1_SMBSUS/UART1_RXD JP6.13 PH.10/SPI1_I2SMCLK/UART4_TXD/UART0_TXD JP6.14 PH.11/UART4_RXD/UART0_RXD/EPWM0_CH5 JP6.15 PD.14/SPI0_I2SMCLK/EPWM0_CH4 JP6.16 JP6.17 LDO_CAP JP6.18 JP6.19 PC.14/SPI0_I2SMCLK/CIR0_RXD/EPWM0_SYNC_IN/TM1 PB.15/EADC0_CH15/SPI0_SS/UART0_nCTS/UART3_TXD/EPWM0_BRAKE1/EPWM1_CH0/TM0_ JP6.20 JP6.21 PB.14/EADC0_CH14/SPI0_CLK/UART0_nRTS/UART3_RXD/EPWM1_CH1/TM1_EXT/CLKO PB.13/EADC0_CH13/ACMP0_P3/ACMP1_P3/SPI0_MISO/UART0_TXD/UART3_nRTS/EPWM1_C JP6.22 H2/TM2_EXT PB.12/EADC0_CH12/DAC0_OUT/ACMP0_P2/ACMP1_P2/SPI0_MOSI/UART0_RXD/UART3_nCT...

  • Page 16: 3.3.2 Arduino Uno Compatible Extension Connectors

    NuMaker-M471KI 3.3.2 Arduino UNO Compatible Extension Connectors Figure 3-4 shows the Arduino UNO compatible extension connectors. MOSI PE.0 PH.10 MISO RESET PE.1 PH.8 nRESET PH.9 UART1_RXD EPWM0_CH3 PB.2 PB.1 EADC0_CH1 I2C1_SCL UART1_TXD EPWM0_CH2 PB.3 PB.0 EADC0_CH0 I2C1_SDA UART2_RXD EPWM1_CH1 PC.4 PB.4...

  • Page 17: Table 3-3 Arduino Uno Extension Connectors And M471Ki8Ae Mapping Gpio List

    NuMaker-M471KI NuMaker-M471KI NuMaker-M471KI Header Header Compatible to Compatible to GPIO Pin of M471 GPIO Pin of M471 Arduino UNO Arduino UNO NU3.1 PB.2 NU2.6 PB.1 NU3.2 PB.3 NU2.5 PB.0 NU3.3 PC.4 NU2.4 PB.4 NU3.4 PC.5 NU2.3 PB.5 NU3.5 PC.3 NU2.2 PB.6...

  • Page 18: Power Supply Configuration

    NuMaker-M471KI Power Supply Configuration The NuMaker-M471KI is able to adopt multiple power supply. External power sources include NU1 Vin (7 V to 12 V), V (depends on target chip operating voltage), and PC through USB connector. By using switches and voltage regulator, multiple power domains can be created on the NuMaker-M471KI.

  • Page 19: Power Sources

    3.4.4 Power Connectors Table 3-7 presents the power connectors. Connector Description connector on the NuMaker-M471KI. Note: M471 operating voltage range is from 2.5 V to 5.5 V. connector on the NuMaker-M471KI. Table 3-7 Power Connectors Nov. 4, 2020 Page 19 of 47...

  • Page 20: Usb Connectors

    Table 3-8 presents the USB connectors. Connector Description ICE USB connector on Nu-Link2-Me for power supply, debugging and ICEJ3 programming from PC. USB connector on NuMaker-M471KI for power supply. Table 3-8 USB Connectors 3.4.6 Power Switches Table 3-9 presents the power switches. Switch Description Configures the target chip operating voltage at 1.8 V / 3.3 V / 5 V.

  • Page 21: Figure 3-6 External Power Supply Sources On M471 Platform

    NuMaker-M471KI 1. Solder the resistor on ICEJPR1 (MCUVCC) depends on the target chip operating voltage. 2. Solder the resistor on ICEJPR2 (ICEVCC) depends on the ICE chip operating voltage. 3. Switch the SW3 to OFF. 4. Connect the external power supply to ICEJ3.

  • Page 22: Figure 3-7 Detach The Nu-Link2-Me From Numaker-M471Ki

    4. Connect ICEJ3 to PC. 5. Connect the external power supply to JP1. To use Vin or J2 as external power supply source with Nu-Link2-Me detached from NuMaker-M471KI, please follow the below steps: 1. Switch the SW3 depends on the target chip operating voltage.

  • Page 23: External Reference Voltage Connector

    NuMaker-M471KI Table 3-11 presents all power models when supplies external power through M471 platform. The M471 platform external power sources are highlighted in yellow. ICEJPR1 ICEJPR2 Target Chip ICE Chip Model ICEJ3 (MCUVCC) (ICEVCC) Voltage Selection Voltage Selection Selection 7 V ~ 12 V Remove 3.3 V...

  • Page 24: Push Buttons

    Table 3-14 Push-Buttons LEDs Table 3-15 presents the LEDs. Component Description Power LED The power LED indicates that the NuMaker-M471KI is powered. PB14 LED The LED is connected to the target chip PB.14. ICES0, ICES1, ICES2 Nu-Link2-Me status LED. and ICES3...

  • Page 25: Vcom Switches

    NuMaker-M471KI 3.9.1 VCOM Switches Table 3-16 presents how to set the VCOM function by ICESW2. ICESW2 Function Description On: Connect target chip PB.13 (UART0_TXD) to Nu-Link2-Me. Off: Disconnect target chip PB.13 (UART0_TXD) to Nu-Link2-Me. On: Connect target chip PB.12 (UART0_RXD) to Nu-Link2-Me.

  • Page 26: Quick Start

    KEIL MDK Nuvoton edition M0/M23  IAR EWARM  NuEclipse GCC (for Windows)  NuEclipse GCC (for Linux) Nuvoton Nu-Link Driver Installation Download and install the latest Nuvoton Nu-Link Driver.  Download and install Nu-Link_Keil_Driver when using Keil MDK.  Download and install Nu-Link_IAR_Driver when using IAR EWARM.

  • Page 27: Figure 4-2 Nu-Link Usb Driver Installation

    NuMaker-M471KI Figure 4-2 Nu-Link USB Driver Installation Nov. 4, 2020 Page 27 of 47 Rev 1.00...

  • Page 28: Bsp Firmware Download

    NuMaker-M471KI BSP Firmware Download Download and unzip the Board Support Package (BSP). Hardware Setup 1. Open the virtual COM (VCOM) function by changing Nu-Link2-Me VCOM Switch No. 1 and 2 to ON. Figure 4-3 Open VCOM Function 2. Connect the ICE USB connector shown in Figure 4-4 to the PC USB port through USB cable.

  • Page 29: Figure 4-5 Device Manger

    NuMaker-M471KI 3. Find the “Nuvoton Virtual COM Port” on the Device Manger as Figure 4-5. Figure 4-5 Device Manger 4. Open a serial port terminal, PuTTY for example, to print out debug message. Set the speed to 115200. Figure 4-6 presents the PuTTY session setting.

  • Page 30: Find The Example Project

    NuMaker-M471KI Find the Example Project Use the “Template” project as an example. The project can be found under the BSP folder as shown in Figure 4-7.  M471_Series_BSP_CMSIS_V3.XX.XXX  SampleCode  Template   Keil  Figure 4-7 Template Project Folder Path Execute the Project under Toolchains Open and execute the project under the toolchain.

  • Page 31: Figure 4-9 Project File Migrate To Version 5 Format

    Figure 4-9 Project File Migrate to Version 5 Format 2. Make sure the debugger is “Nuvoton Nu-Link Debugger” as shown in Figure 4-10 and Figure 4-11. Note: If the dropdown menu in Figure 4-10 does not contain “Nuvoton Nu-Link Debugger” item, please rework section 4.2.

  • Page 32: Figure 4-11 Programming Setting In Options Window

    NuMaker-M471KI Figure 4-11 Programming Setting in Options Window 3. Rebuild all target files. After successfully compile the project, download code to the flash memory. Click “Start/Stop Debug Section” button can enter debug mode. 1. Rebuild 2. Successfully compile 3. Download 4.

  • Page 33: Figure 4-13 Keil Mdk Debug Mode

    NuMaker-M471KI 4. Figure 4-13 shows the debug mode under Keil MDK. Click “Run” and the debug message will be printed out as shown in Figure 4-14. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc.

  • Page 34: Iar Ewarm

    NuMaker-M471KI 4.6.2 IAR EWARM This section provides steps to beginners on how to run a project by using IAR EWARM. 1. Double click the “Template.eww” to open the project. 2. Make sure the toolbar contain “Nu-Link” item as shown in Figure 4-15.

  • Page 35: Figure 4-17 Iar Ewarm Debug Mode

    NuMaker-M471KI 4. Figure 4-17 shows the debug mode under IAR EWARN. Click “Go” and the debug message will be printed out as shown in Figure 4-18. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc.

  • Page 36: Nueclipse

    NuMaker-M471KI 4.6.3 NuEclipse This section provides steps to beginners on how to run a project by using NuEclipse. Please make sure the filenames and project folder path contain neither invalid character nor space. 1. Double-click NuEclipse.exe to open the toolchain.

  • Page 37: Figure 4-21 Open Project Properties Window

    NuMaker-M471KI 3. Click the “Template” project and find the project properties as shown in Figure 4-21. Make sure the settings are the same as settings in Figure 4-22. Figure 4-21 Open Project Properties Window Figure 4-22 Project Properties Settings Nov. 4, 2020 Page 37 of 47 Rev 1.00...

  • Page 38: Figure 4-23 Build Project

    NuMaker-M471KI 4. Click the “Template” project and build the project. Figure 4-23 Build Project 5. After the project is built, click the “Template” project and set the “Debug Configuration” as shown in Figure 4-24. Follow the settings presented in Figure 4-25, Figure 4-26 and Figure 4-27 to enter debug mode.

  • Page 39: Figure 4-25 Main Tab Configuration

    NuMaker-M471KI Note 1: Double click the “GDB Nuvoton Nu-Link Debugging” to create the subitem. Note 2: After the project is built, the “*.elf” file will be shown in “C/C++ Application” frame. Figure 4-25 Main Tab Configuration Figure 4-26 Debugger Tab Configuration Nov.

  • Page 40: Figure 4-27 Startup Tab Configuration

    NuMaker-M471KI Note 1: User must follow those settings highlighted in green, and can configure other settings depend on the needs. Figure 4-27 Startup Tab Configuration Nov. 4, 2020 Page 40 of 47 Rev 1.00...

  • Page 41: Figure 4-28 Nueclipse Debug Mode

    NuMaker-M471KI 6. Figure 4-28 shows the debug mode under NuEclipse. Click “Resume” and the debug message will be printed out as shown in Figure 4-29. User can debug the project under debug mode by checking source code, assembly language, peripherals’ registers, and setting breakpoint, step run, value monitor, etc.

  • Page 42: Numaker-M471Ki Schematics

    NuMaker-M471KI NUMAKER-M471KI SCHEMATICS Nu-Link2-Me Figure 5-1 shows the Nu-Link2-Me circuit. 3.3V ICER1 Off-page Connector 200 1% USB_HS_CAP R0603 ICE5V ICEC1 ICEC2 ICE5V 0.1u MCUVCC_DIODE C0603 C0603 MCUVCC_DIODE SWDH_DAT TICEDAT SWDH_CLK TICECLK SWDH_RST# TICERST ICE_RX_S MCU_TX ICE_TX_S MCU_RX ICE_RST nRESET ICEVDD...

  • Page 43: M471 Platform

    NuMaker-M471KI M471 platform Figure 5-2 shows the M471 platform circuit. P1 - P32 P65 - P96 PF0_ICE_DAT PB5_NU2_A2 TICEDAT PF1_ICE_CLK PB4_NU2_A3 TICECLK PB3_NU3_D1/TX PB2_NU3_D0/RX PC12 PC5_NU3_D3 PC11 PC4_NU3_D2 PC10 PC3_NU3_D4 PC2_NU3_D5 PB1_NU2_A5/SCL/TX PC1_NU4_SCL PB0_NU2_A4/SDA/RX PC0_NU4_SDA PI0_UART0_TXD PA11 PA10 PG10 PG11...

  • Page 44: Extension Connector

    NuMaker-M471KI Extension Connector Figure 5-3 shows extension connectors of NuMaker-M471KI. P1 - P32 P65 - P96 PB5_NU2_A2 PB4_NU2_A3 TICEDAT TICECLK PC1_NU4_SCL I2C_SCL PB3_NU3_D1/TX PB2_NU3_D0/RX PC0_NU4_SDA I2C_SDA PC12 PC11 PC5_NU3_D3 PC4_NU3_D2 VREF VREF PC10 PC3_NU3_D4 PC2_NU3_D5 MCUVCC_DIODE PB1_NU2_A5/SCL/TX PB0_NU2_A4/SDA/RX PC1_NU4_SCL PC0_NU4_SDA...

  • Page 45: Pcb Placement

    NuMaker-M471KI PCB Placement Figure 5-4 and Figure 5-5 show the front and rear placement of NuMaker-M471KI. Figure 5-4 Front Placement Figure 5-5 Rear Placement Nov. 4, 2020 Page 45 of 47 Rev 1.00...

  • Page 46: Revision History

    NuMaker-M471KI REVISION HISTORY Date Revision Description 2020.11.4 1.00 Initial version Nov. 4, 2020 Page 46 of 47 Rev 1.00...
  • Page 47 NuMaker-M471KI Important Notice Nuvoton Products are neither intended nor warranted for usage in systems or equipment, any malfunction or failure of which may cause loss of human life, bodily injury or severe property damage. Such applications are deemed, “Insecure Usage”.
