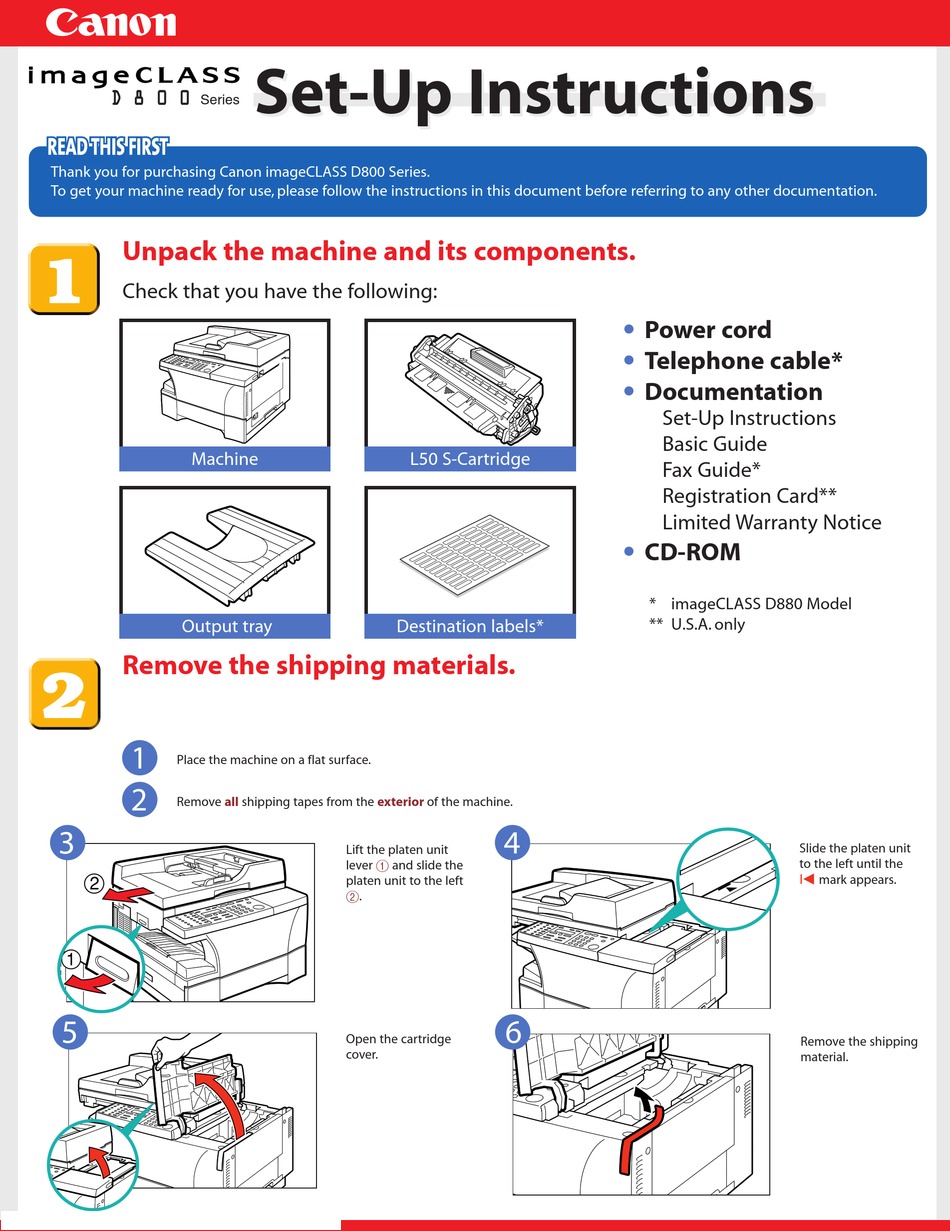

Thank you for purchasing Canon imageCLASS D800 Series.
To get your machine ready for use, please follow the instructions in this document before referring to any other documentation.
Unpack the machine and its components.
Check that you have the following:
Machine
Output tray
Remove the shipping materials.
1
Place the machine on a flat surface.
2
Remove
all
3
2
1
5
Set-Up Instructions
Set-Up Instructions
L50 S-Cartridge
Destination labels*
shipping tapes from the
exterior
Lift the platen unit
lever
1
and slide the
platen unit to the left
2.
Open the cartridge
cover.
of the machine.
4
6
•
Power cord
•
Telephone cable*
•
Documentation
Set-Up Instructions
Basic Guide
Fax Guide*
Registration Card**
Limited Warranty Notice
•
CD-ROM
* imageCLASS D880 Model
** U.S.A. only
Slide the platen unit
to the left until the
I4
Remove the shipping
material.
mark appears.
