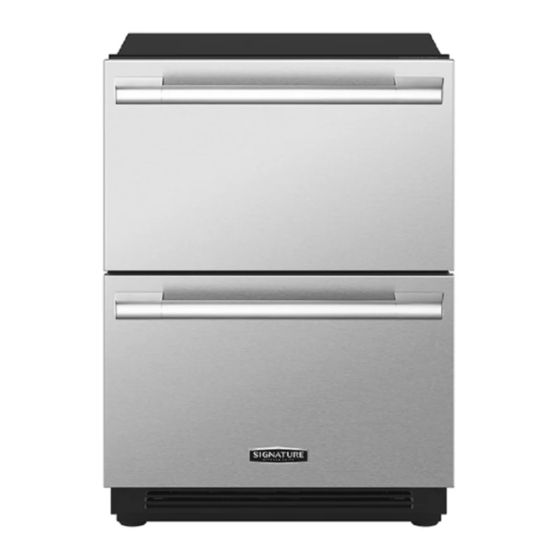

Signature Kitchen Suite SKSUD2402P Installation Manual

Hide thumbs Also See for SKSUD2402P:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION GUIDE
BUILT-IN REFRIGERATOR
Read this owner's manual thoroughly before operating the appliance and keep
it handy for reference at all times.
ENGLISH
SKSUD2402P / SKSUW2401P
MFL67410830
Rev.00_051821
Copyright © 2021 Signature Kitchen Suite. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSUD2402P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Signature Kitchen Suite SKSUD2402P

Summary of Contents for Signature Kitchen Suite SKSUD2402P

  • Page 1 INSTALLATION GUIDE BUILT-IN REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH SKSUD2402P / SKSUW2401P MFL67410830 Rev.00_051821 Copyright © 2021 Signature Kitchen Suite. All Rights Reserved.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS WARNING 3 Installation 3 Electrical Connection CAUTION 4 General INSTALLATION Before Installation 5 Choosing the Install Location 5 Anti-tip Devices 5 Enclosure 5 Floor 5 Electrical Requirements 6 Grounding 6 Cutout Dimensions 7 Installation Clearances Required Accessories and Tools 8 Accessories 8 Tools...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING • TIP-OVER HAZARD - Use two or more people to move and install the refrigerator. To prevent the refrigerator from tipping over, install anti-tip brackets (provided). Failure to follow the refrigerator installation instructions can result in serious injury or death.

  • Page 4: Caution

    IMPORTANT SAFETY INSTRUCTIONS - Press the POWER button for 3 seconds to turn off the power at display panel. • Do not pull out the cord or touch the power plug with wet hands. - Doing so may cause electric shock or injury. •...

  • Page 5: Installation

    INSTALLATION INSTALLATION Before Installation • The side walls of the cavity or enclosure must be flush. • The front 4 inches (100 mm) of the interior WARNING surface (furniture return) will be visible when • Do not store or install the appliance where it will doors are open.

  • Page 6: Grounding

    WARNING of the device. • The receptacle must be installed by a licensed electrician only. SKSUD2402P Grounding This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.

  • Page 7: Installation Clearances

    Model: SKSUW2401P Installation Clearances * Right hand hinge installation shown. When reversing the door, the hinge and handle side clearances also reverse. Model: SKSUD2402P ** Side clearance at front panel Top View (Door Closed) Case Door Panel Top View (Door Open 90°)

  • Page 8: Required Accessories And Tools

    INSTALLATION Top View (Door Open 115°) Encl Screw Size Case Hinge H5XL45 Door D4XL14 Dimensions and Clearances 24" (610 mm) D4XL6 23 7/16" (595 mm) Handle Side 1/8" (2.5 mm) min. Hinge Side 1/2" (12.5 mm) min. D4XL12 3/16" (4 mm) 23 11/16"...

  • Page 9: Product Dimensions

    Particular reference is made to special installation steps for individual appliance types. 23 1/4" (590 mm) 22 1/2" (571 mm) Product Dimensions 20 1/2" (520 mm) Model: SKSUD2402P 33 3/16" (843 mm) min. • Front View 33 9/16" (853 mm) max. 5" (128 mm)
  • Page 10 ** Varies depending on the thickness of the 34 5/8" (880 mm) max. custom cabinet panel. The door panels in the optional Signature Kitchen Suite stainless steel 4" (101 mm) door panel kit are 3/4" (19 mm) thick. 23 5/8" (600 mm) Dimensions 22 7/8"...

  • Page 11: Custom Panel Dimensions

    INSTALLATION Dimensions NOTE • The custom panel dimensions are same for the 3/4" (19 mm) Upper and Lower drawers. NOTE • 24-inch built-in undercounter wine refrigerator • This unit is designed to be customized with a decorative panel. A field-installed custom door panel or an optional Stainless Steel Panel Kit is required.

  • Page 12: Protecting Edges Of Enclosure

    12 INSTALLATION Install the anti-tip brackets at the rear of the • Use A type or B type screw. (Recommended: enclosure, locating the brackets based on stud Concrete wall ~ A Type, Wood wall ~ B Type) locations and product and enclosure dimensions. A Type B Type Protecting Edges of Enclosure...

  • Page 13: Installing Appliance In Enclosure

    INSTALLATION Installing Appliance in Enclosure WARNING • Use 2 or more people when installing the appliance. Take care when moving the appliance. It is very heavy and prone to tipping when not secured. CAUTION • Take care to avoid damaging the water line or power cord when moving the appliance into the enclosure.

  • Page 14: Aligning And Leveling The Appliance

    14 INSTALLATION Tie a long string around the middle of the power cord. Feed the string over the top of the appliance, pull it until the power cord is held high off the ground, then tape the string to the front of the appliance to hold the power cord off the ground.

  • Page 15: Attaching Appliance To Enclosure

    INSTALLATION Left Right Rear Front Front Rear Raise Raise Product Product Turn the screws as shown above to raise the appliance. Turn the screws in the opposite direction to lower the appliance. Make sure the weight of the refrigerator is carried on the legs, not the wheels. Use a smartphone leveling app or place a carpenter's level on the top and sides of the appliance to check that it is level and plumb.
  • Page 16 16 INSTALLATION • Use the B type screw for fixing the bracket to the cabinet and use the C-1 type screw for attaching the bracket to the appliance. • If there is no space for tightening the screw at the baseboard space on the side,fix the bracket to the bottom of the adjoining cabinet.

  • Page 17: Attaching The Toe Kick Panel

    INSTALLATION After fixing the appliance, fix the bracket to the refrigerator using the C-1 type screw. Front Floor Dimensions 6 11/16" (170 mm) 5 5/16" (135 mm) Attaching the Toe Kick Panel CAUTION 3/8” (10 mm ) 3/8” • Do not close the air vent in the bottom cover of (10 mm) the appliance.
  • Page 18 18 INSTALLATION NOTE • Before adjusting the baseboard - Pull the cabinet baseboard forward and align it with the refrigerator baseboard. - After adjusting the baseboard...

  • Page 19: Installing Door Panels

    INSTALLATION Installing Door Panels The door panel should be installed first, followed by the upper then lower drawer panel, if needed. Place the door panel face down on a protected surface. Locate the correct side of the door panel template for your product and position the template flush with the top and left sides of the panel.

  • Page 20: Adjusting Door Panels

    20 INSTALLATION Back of Door Panel 4X12 Mounting door panel CAUTION • Beware of pinch points when installing door panels or opening and closing doors. Adjusting Door Panels Fine adjustments can now be made to align the door panels. To adjust the door panel horizontally, slide the panel support screws left or right in the slotted holes as desired.

  • Page 21: Installing Door Trim

    INSTALLATION Up and down plastic rail Installing Door Trim Model: SKSUD2402P • After panels have been adjusted, install the decorative side trim on the doors. • After installing the door trim first, tighten the cover using the provided screws. Door trim...
  • Page 22 22 INSTALLATION • To install, start at the middle and align the trim with the front and rear flanges on the bracket, then snap into place by pushing the trim toward the back of the panel. Once the middle is secure, continue the installation upward until the remaining trim is completely secure.
  • Page 23 INSTALLATION Installing the upper and lower door trim (finish) for the Wine Model Doors • Installing the right hinge - Insert trim (finish) on the left and right side of the upper cap décor and trim (finish) on the left side of the lower cap décor and secure it. NOTE •...
  • Page 24 24 INSTALLATION • Installing the left hinge - Insert trim (finish) on the left and right side of the upper cap décor and trim (finish) on the right side of the lower cap décor and secure it. Trim Trim Trim Trim...

  • Page 25: Reversing The Door

    INSTALLATION Reversing the Door Remove the 2 mounting bolts at the top and bottom of the door. Remove the door and lay it aside on a protected surface. On the door, remove 2 bolts from the top hinge and install the hinge on the opposite side at the bottom of the door.

  • Page 26: Attaching The Badge

    26 INSTALLATION Attaching the Badge Attach the following badge to a position which is 1 2/5" (35 mm) away from the bottom of the bottom door panel and 9 4/5" (251 mm) away from the right side horizontally. Dimensions 9 4/5" (251 mm) 1 2/5"...

  • Page 27: Inserting The Link Assembly

    INSTALLATION Inserting the Link Assembly Model: SKSUD2402P After installation, open the upper drawer and check that the link assembly at the bottom of the drawer is inserted. If the link assembly is not inserted, insert it at the bottom of the drawer.
