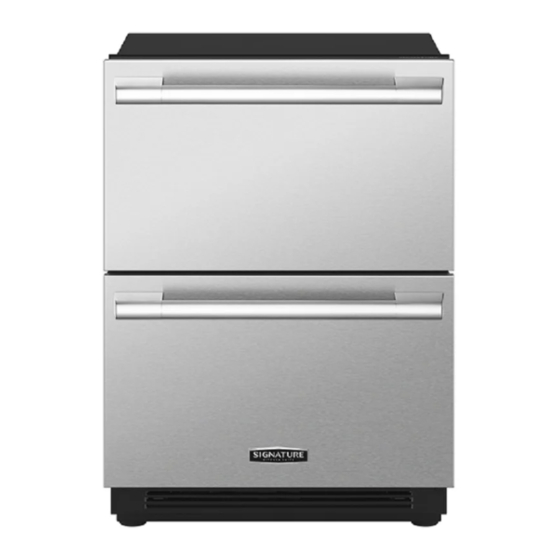

Signature Kitchen Suite SKSUD2402P Installation Manual

Built-in fridge & freezer

Hide thumbs Also See for SKSUD2402P:

Installation manual (92 pages)

Owner's manual (28 pages)

Installation manual (28 pages)

Table Of Contents

Quick Links

Download this manual

INSTALLATION MANUAL

BUILT-IN FRIDGE & FREEZER

Read this installation manual thoroughly before installing the

appliance and keep it handy for reference at all times.

ENGLISH

MFL67410838

Rev.02_110722

www.signaturekitchensuite.com

Table of Contents

Need help?

Do you have a question about the SKSUD2402P and is the answer not in the manual?

Questions and answers

Summary of Contents for Signature Kitchen Suite SKSUD2402P

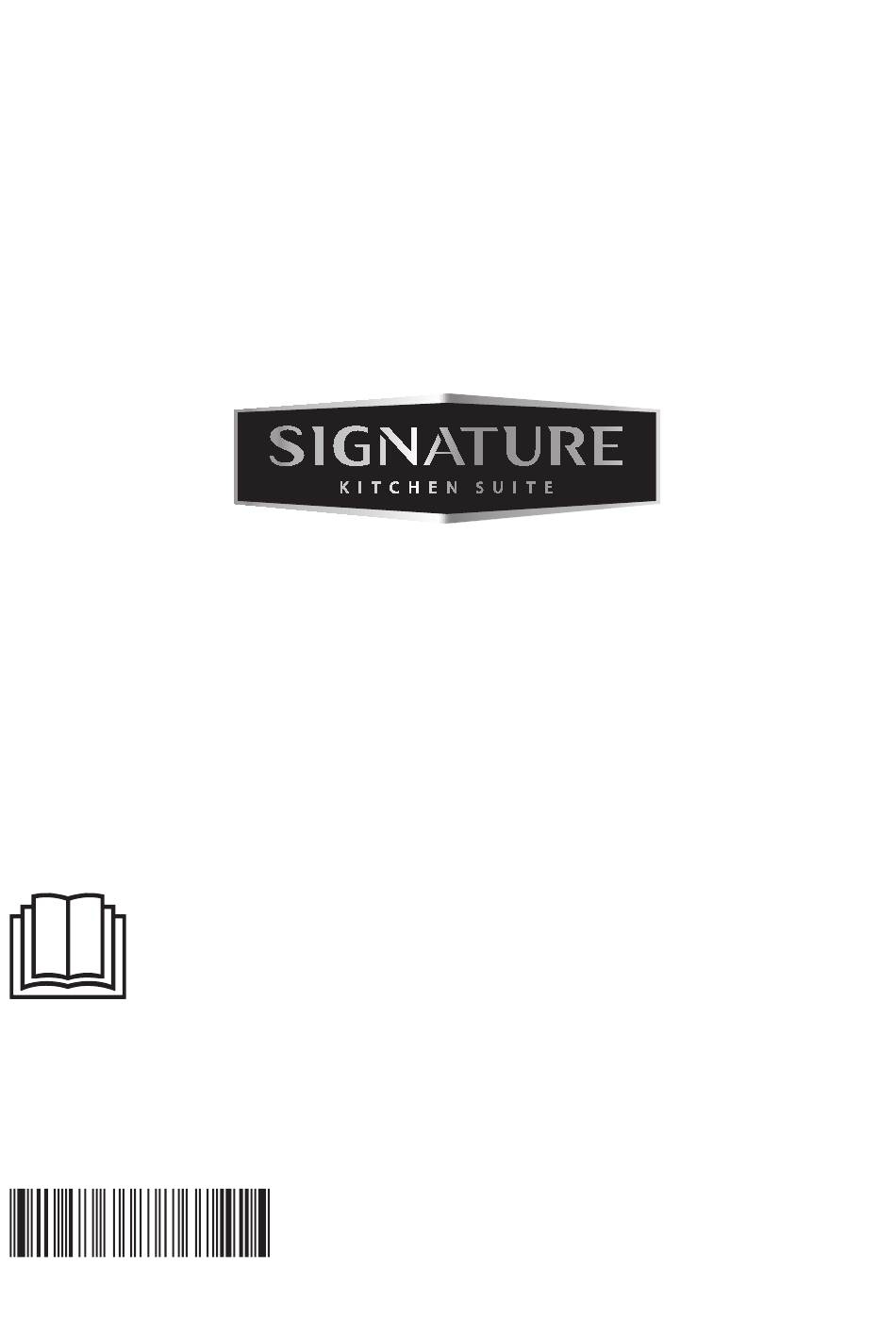

Page 1 INSTALLATION MANUAL BUILT-IN FRIDGE & FREEZER Read this installation manual thoroughly before installing the appliance and keep it handy for reference at all times. ENGLISH www.signaturekitchensuite.com MFL67410838 Rev.02_110722 Copyright © 2022 Signature Kitchen Suite. All Rights Reserved.
Page 2: Table Of Contents
TABLE OF CONTENTS This manual may contain images or content that may be different from the model you purchased. This manual is subject to revision by the manufacturer. IMPORTANT SAFETY INSTRUCTIONS WARNING ......................3 CAUTION ......................5 INSTALLATION Before Installation .....................7 Required Accessories and Tools...............9 Product Dimensions ..................10 Moving Appliance into Enclosure..............13 Leveling and Securing the Appliance ............15...
Page 3: Important Safety Instructions Warning
IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS WARNING • TIP-OVER HAZARD - Use two or more people to move and install the refrigerator. To prevent the refrigerator from tipping over, install anti-tip brackets (provided). Failure to follow the refrigerator installation instructions can result in serious injury or death.
Page 4 IMPORTANT SAFETY INSTRUCTIONS • Connect to potable water only. Non-potable water can cause health risks. • If connected to a circuit protected by fuses, use time delay fuse. • Allow disconnection of the appliance from the supply after installation. The disconnection may be achieved by having the plug accessible or by incorporating a switch in the fixed wiring in accordance with the wiring rules.
Page 5: Caution
IMPORTANT SAFETY INSTRUCTIONS • Remove water or dust from the power plug and insert it securely into the wall socket. - Dust, water, or a loose connection may cause a fire or electric shock. • Do not unplug the refrigerator by pulling on the cord. - Doing so may cause electric shock or short circuit resulting in a fire.
Page 6 IMPORTANT SAFETY INSTRUCTIONS • To turn on the appliance, connect the power plug into the outlet socket. Do not double up with other appliances on the same outlet. • To turn off the appliance, disconnect the power plug from the outlet socket.
Page 7: Installation Before Installation
INSTALLATION INSTALLATION Before Installation Enclosure • The panel above the appliance must be made WARNING from a solid material (not MDF) and at least 16 mm thick. • Do not store or install the appliance where it will • The side walls of the cavity or enclosure must be be exposed to: flush.
Page 8 • The appliance requires a 3-wire receptacle. center of the appliance. • The receptacle must be installed by a licensed electrician only. SKSUD2402P Grounding This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current.
Page 9: Required Accessories And Tools
INSTALLATION Size (mm) NOTE 597 to 601 • GFCI (ground fault circuit interrupter) is not recommended. • A minimum 100 mm finished return that matches the cabinet exterior is recommended on all sides and at the top of the cutout opening. The shaded area will be visible after installation.
Page 10: Product Dimensions
Tools Particular reference is made to special installation steps for individual appliance types. Product Dimensions Cordless screwdriver Model: SKSUD2402P • Front View Torx bit T20, T30 and magnetic holder Torx screwdriver T20, T30 10 mm hex nut driver...
Page 11 INSTALLATION • Side View Size (mm) I*** I*** Model: SKSUW2401G • Front View * Depth with 19 mm drawer panel ** Depth with drawers (no panel) *** Unit depth without drawers • Top View (Door Open) • Side View Size (mm) 346,5 * Depth with door ** Unit depth without door...
Page 12 • Top View (Door Open 115º) Lower Drawer Panel Size (mm) Size (mm) 346,5 330,5 NOTE • The custom panel dimensions are different for the upper and lower drawers. Optional Accessories • SKSUD2402P - Stainless Steel Panel for Undercounter Drawer Fridge and Freezer...
Page 13: Moving Appliance Into Enclosure
INSTALLATION Moving Appliance into NOTE Enclosure • Brackets must be attached as shown below. The brackets could fail to prevent tipover of the unit Installing the Anti-tip Brackets if installed in an alternate orientation. WARNING • To avoid injury or damage, check for electrical wires or plumbing in walls before drilling or installing screws.
Page 14 INSTALLATION Protecting Edges of Enclosure Protective cover To protect the front edges of the enclosure, tape thin cardboard or some other protective material around the edges. Installing Appliance in Enclosure WARNING • Use 2 or more people when installing the appliance. Take care when moving the appliance. It is very heavy and prone to tipping when not secured.
Page 15: Leveling And Securing The Appliance
INSTALLATION • After the appliance is rolled into position, verify that the anti-tip brackets are properly engaged. Remove the base panel. Retract the levelling legs so the appliance can be wheeled forward. Plug the power cord into the outlet. Tie a long string around the middle of the power cord. Feed the string over the top of the appliance, pull it until the power cord is held high off the ground, then tape the string to the front of the appliance to hold the power cord off the ground.
Page 16 INSTALLATION - Adjust the depth of the unit in the enclosure so the door panels will fit flush with the surrounding cabinetry. Use the gauge tool provided for a precise fit. • Height Adjustment - The front and rear levelling legs can both be adjusted from the front. Rear adjustment Front adjustment Rear leg...
Page 17 INSTALLATION WARNING • To reduce the possibility of the unit tipping forward, the front levelling legs must be in contact with the floor. CAUTION • If using a power drill, use the lowest torque setting. • Do not exceed 2,25 Nm of torque. •...
Page 18 INSTALLATION • If there is not enough space to tighten the screw on the side by the baseboard, attach the bracket to the bottom of the adjoining cabinet. • If the mounting bracket is attached to the cabinet first: Attach the bracket to the cabinet using a B type screw. Insert the appliance, level the appliance with the adjoining cabinet, and secure the appliance by extending the front and rear legs.
Page 19 INSTALLATION Attaching the Toe Kick Panel • Finishing the baseboard installation - If the position (depth from the front) of the cabinet baseboard is different from the CAUTION position of the appliance baseboard, adjust • Do not close the air vent in the bottom cover of the cabinet baseboard so that it is aligned with the appliance.
Page 20: Panels And Trim
INSTALLATION Panels and Trim Installing Door Panels The door panel should be installed first, followed by the upper then lower drawer panels, if needed. Place the door panel face down on a protected surface. Locate the correct side of the door panel template for your product and position the template flush with the top and left sides of the panel.
Page 21 INSTALLATION Mounting Door Panel Back of door panel 4X12 CAUTION • Beware of pinch points when installing door panels or opening and closing doors. Adjusting Door Panels Fine adjustments can now be made to align the door panels. To adjust the door panel horizontally, slide the panel support screws left or right in the slotted holes as desired.
Page 22 Up and down adjustment In and out adjustment Installing Door Trim Model: SKSUD2402P • After panels have been adjusted, install the decorative side trim on the doors. • Install the door trim before tightening the cover using the provided screws.
Page 23 INSTALLATION Attaching the Badge Attach the following badge to a position which is 35 mm away from the bottom of the bottom door panel and 247,5 mm away from the right side horizontally. Size (mm) 247,5...
Page 24 INSTALLATION Inserting the Link Assembly Model: SKSUD2402P After installation, open the upper drawer and check that the link assembly at the bottom of the drawer is inserted. If the link assembly is not inserted, insert it at the bottom of the drawer.
Page 25 Memo...
Page 26 Memo...
