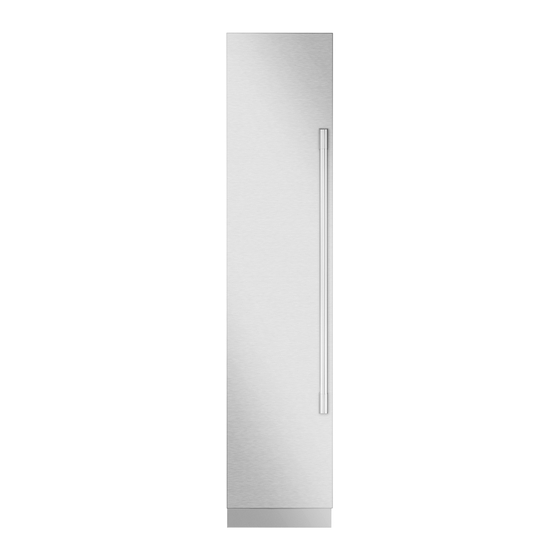

- Page 1 Integrated Refrigeration Installation Guide BUILT-IN REFRIGERATION SKSCF1801P SKSCR3001P www.signaturekitchensuite.com Copyright © 2017-2018 Signature Kitchen Suite. All Rights Reserved. MFL67410814_Rev.04...
-
Page 2: Table Of Contents
Before Installation ......... 6 Adjusting Door Panels ........33 Choosing the Install Location ......6 Installing Door Trim ........33 SKSCF1801P – 18" INTEGRATED FREEZER Attaching Air Separator ........34 COLUMN ............ 10 ◆ Special Installations SKSCR3001P – 30" INTEGRATED Optional Frame Kit Accessory ...... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS This guide contains many important safety messages. Always read and obey all safety messages. This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or others or cause damage to the product. All safety messages will be preceded by the safety alert symbol and the hazard signal word WARNING, or CAUTION. -
Page 4: Electrical Connection
operation and use without twisting or deforming. bending. The product must be level both horizontally and vertically. Electrical Connection Use a dedicated outlet. Plug in the power plug with the power cord facing downward. When installing or moving the refrigerator, be careful not to roll over or damage the power cord. - Page 5 If the supply cord is damaged, it must be replaced by the manufacturer or its service CAUTION Do not remove the cover of the automatic ice dispenser. The internal mechanism of the icemaker can cause injury if handled. Do not stick your hands under the refrigerator. Sharp edges, fans, and wires may cause an injury Save these instructions for the local inspector's use.
-
Page 6: Before Installation
Before Installation WARNING Choosing the Install Location Temperature and Humidity The appliance should be installed in a dry, well ventilated area. tions. oven or radiator. Anti-tip Devices WARNING: Tip Hazard securely installed. installing the appliance in a stable position is to use the supplied anti-tip devices. If the enclosure is sturdy enough, attaching the appliance to the upper and side walls of the enclo- If in doubt, contact an architect or structural engineer. - Page 7 Enclosure nals of the opening to make sure corners are square. cabinets. Make sure the enclosure or the adjacent cabinets are securely connected to the Floor WARNING mance.
-
Page 8: Electrical Requirements
Electrical Requirements WARNING The receptacle must be installed by a licensed electrician only. Grounding This appliance must be grounded. In the event of a malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for the electric current. WARNING: Improper connection of the equipment grounding conductor may result in electric if you are in doubt as to whether the appliance has been properly grounded. -
Page 9: Water Connection
Water Connection CAUTION ily accessible. -
Page 10: Skscf1801P - 18" Integrated Freezer Column
SKSCF1801P – 18" INTEGRATED FREEZER COLUMN CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN 18" (457 mm) finished width 25" (635 mm) 4" min. depth (102 mm) flush install finished 24" (610 mm) return* min. depth proud install 84"... - Page 11 1/8" 1/8" (3mm) (3mm) cabinet panel. The door panels in the optional min. min. Signature Kitchen Suite stainless steel door panel kit are 3/4" (19 mm) thick. 17 3/4" (451 mm) 115° 20 1/4" (514 mm) 90°...
-
Page 12: Skscr3001P - 30" Integrated Refrigerator Column
SKSCR3001P – 30" INTEGRATED REFRIGERATOR COLUMN CUTOUT DIMENSIONS – FLUSH OR PROUD INSTALLATION, SINGLE COLUMN 30" (762 mm) finished width 25" (635 mm) 4" min. depth (102 mm) flush install finished 24" (610 mm) return* min. depth proud install 84" (2134 mm) 5"... - Page 13 1/8" (3mm) (3mm) cabinet panel. The door panels in the optional min. min. Signature Kitchen Suite stainless steel door panel kit are 3/4" (19 mm) thick. 29 3/4" (756 mm) 115° 32 3/16" (818 mm) 3/4"...
-
Page 14: Skscf1801P - 18" Integrated Freezer Column
SKSCF1801P – 18" INTEGRATED FREEZER COLUMN 3/4" (19 MM) CUSTOM PANEL DIMENSIONS – FLUSH INSTALLATION DUAL 18" AND 30" COLUMN SINGLE COLUMN 17 3/4" 47 3/4" (451 mm) (1213 mm) 17 3/4" 29 3/4" (451 mm) (756 mm) 79 7/8"... - Page 15 OPTIONAL ACCESSORIES – FLUSH OR PROUD INSTALLATION COLUMN This unit can be installed with an optional stainless steel panel kit. The kit includes one door panel, one toe kick and one handle. This kit is reversible and can be used in both right hand and left hand door swing installations.
-
Page 16: Skscr3001P - 30" Integrated Refrigerator Column
SKSCR3001P – 30" INTEGRATED REFRIGERATOR COLUMN 3/4" (19 MM) CUSTOM PANEL DIMENSIONS – FLUSH INSTALLATION DUAL 18" AND 30" COLUMN SINGLE COLUMN 29 3/4" 47 3/4" (1213 mm) (756 mm) 17 3/4" 29 3/4" (451 mm) (756 mm) 79 7/8" 79 7/8"... - Page 17 OPTIONAL ACCESSORIES – FLUSH OR PROUD INSTALLATION This unit can be installed with an optional stainless steel panel kit. The kit includes one door panel, one toe kick and one handle. This kit is reversible and can be used in both right hand and left hand door swing installations.
-
Page 18: Required Accessories And Tools
Required Accessories and Tools Supplied Accessories Tools Installation instructions Operating instructions Installation kit Other materials Multigrip pliers ing rule Square... -
Page 19: Installation
Installation types:... -
Page 20: Unpacking
Unpacking WARNING NOTE: CAUTION:... -
Page 21: Moving The Appliance
Moving the Appliance WARNING To avoid product damage: Raise up via Do not raise up appliance rear from appliance side Special Circumstances... -
Page 22: Product Dimensions
Product Dimensions 18" Freezer Column FRONT VIEW SIDE VIEW Depth with 3/4" door panel (19 mm) Unit width Depth with door (no panel) without Unit depth without door door panel TOP VIEW TOP VIEW DOOR OPEN 90˚ DOOR OPEN 115˚ 17 ½"... - Page 23 30" Refrigerator Column FRONT VIEW SIDE VIEW Depth with 3/4" door panel (19 mm) Unit width Depth with door (no panel) without Unit depth without door door panel TOP VIEW TOP VIEW DOOR OPEN 90˚ DOOR OPEN 115˚ " " Unit width Unit width (756 mm)
-
Page 24: Installing The Anti-Tip Brackets
Installing the Anti-tip Brackets WARNING 84" (2134) 80" (2046) CAUTION 16" 16" (2046 mm) (2046 mm) " Unit " Unit 17 ½" " " " "... -
Page 25: Protecting Edges Of Enclosure
NOTE: >2 1 / " Protecting Edges of Enclosure protection... -
Page 26: Installing Appliance In Enclosure
Installing Appliance in Enclosure WARNING CAUTION... -
Page 27: Aligning And Leveling The Appliance
Aligning and Leveling the Appliance DEPTH ADJUSTMENT 1. Measure the thickness of your decorative door panels using the gauge tool. Gauge tool 2. Use the mark on the gauge tool to adjust the depth CABINETRY FRONT OF FACE of the appliance in the enclosure. UNIT FRAME HEIGHT ADJUSTMENT... - Page 28 WARNING LEVELING Leveling CAUTION...
-
Page 29: Attaching The Appliance To The Enclosure
Attaching Appliance to Enclosure WARNING 4X15 NOTE: 4X15 NOTE:... -
Page 30: Attaching The Toe Kick Panel
Attaching the Toe Kick Panel CAUTION Stainless Toe Kick Panel (Optional Accessory) Screw Wood Toe Kick Panel... - Page 31 Loading the Appliance Door 18" 30"...
-
Page 32: Installing Door Panels
Installing Door Panels Top / Bottom of Top / Bottom of DOOR PANEL DOOR PANEL 84" APPLICATION 84" APPLICATION 83 7/8" ACTUAL 83 7/8" ACTUAL TOP / BOTTOM DOOR PANEL 30"UNIT 18" UNIT Top / Bottom of DOOR PANEL 84" APPLICATION 83 7/8"... -
Page 33: Adjusting Door Panels
Adjusting Door Panels In and out Plastic rail Up and down Plastic rail Installing Door Trim Door trim Door trim... -
Page 34: Attaching Air Separator
Attaching Air Separator Assemble A with B and attach on bottom front center of door. 4X15 2X Special Installations Optional Frame Kit Accessory Attaching side trim for retro fit 4X15... -
Page 35: Adjusting The Door Spring
Adjusting the Door Spring I = maximum spring tension Adjusting the Door Stop Water Filter Bypass Removing the Water Filter Water filter... -
Page 36: Reversing The Door
Reversing the Door WARNING Risk of Injury NOTE: Front cover brackets (2) Front cover brackets (2) Filter bracket... - Page 37 Remove screws (2) Remove screws (4) Insert screws (2) Insert screws (2) Insert screws (2) Remove screws (2) Insert screws (2) Remove screws (2) Remove screws (4) Insert screws (4) Remove screws(2) Insert screws (2) Remove screws (2) Insert screws (2)
-
Page 39: Side-By-Side Installation
Side-by-Side Flush Installation FLUSH INSTALLATION CLEARANCES NOTE: DUAL 18" AND 30" COLUMN 47 3/4" (1213 mm) NOTE: 17 3/4" 29 3/4" (451 mm) (756 mm) 79 7/8" Door Panel Door Panel (2029 mm) 4X15... - Page 40 the two appliances together by installing connection brackets between the two appliances at top and bottom. 6. Insert the provided pin into both cover rails at the top of the combined units. NOTE: of both cover rails.
-
Page 41: Preparing To Connect The Water Line
Preparing to Connect the Water Line NOTE: and property damage. Install the water line. Always observe the indicated dimensions to prevent damage to the water line when pushing in the appliance Connecting Water Line >14” (355mm) NOTE: When bending the water line, do not kink it, otherwise there is a risk of leaks and water damage. -
Page 42: Attaching The Badge
Attaching the Badge layouts below. 18" UNIT 30" UNIT 18" UNIT + 30" UNIT 30" UNIT + 18" UNIT Cutline Door top 1 3/16” (30mm) 1 3/16” (30mm)
