Signature Kitchen Suite SKSFD3613 Series Owner's Manual
  1. Manuals
  2. Brands
  3. Signature Kitchen Suite Manuals
  4. Refrigerator
  5. SKSFD3613 Series
  6. Owner's manual

Signature Kitchen Suite SKSFD3613 Series Owner's Manual

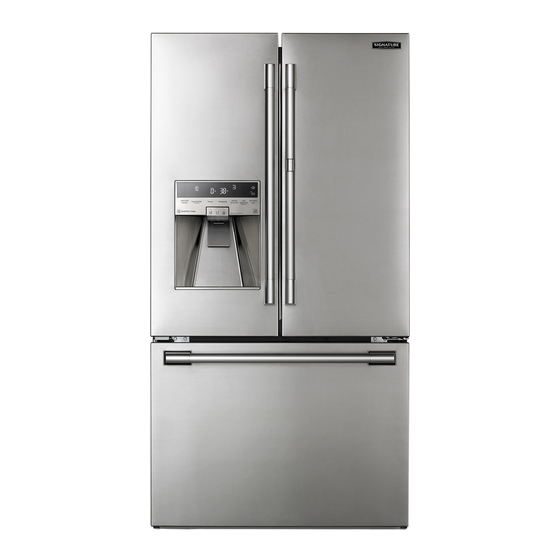

French door refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

OWNER'S MANUAL
FRENCH DOOR
REFRIGERATOR
Read this owner's manual thoroughly before operating the
appliance and keep it handy for reference at all times.
ENGLISH
SKSFD3613*
www.signaturekitchensuite.com (USA)
www.signaturekitchensuite.ca (CANADA)
MFL69497041
Copyright © 2020 Signature Kitchen Suite. All Rights Reserved.
Rev.01_092320

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SKSFD3613 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Signature Kitchen Suite SKSFD3613 Series

Summary of Contents for Signature Kitchen Suite SKSFD3613 Series

  • Page 1 OWNER'S MANUAL FRENCH DOOR REFRIGERATOR Read this owner's manual thoroughly before operating the appliance and keep it handy for reference at all times. ENGLISH SKSFD3613* www.signaturekitchensuite.com (USA) www.signaturekitchensuite.ca (CANADA) MFL69497041 Copyright © 2020 Signature Kitchen Suite. All Rights Reserved. Rev.01_092320...

  • Page 2: Table Of Contents

    Automatic Icemaker Storing Food Humidity Controlled Crispers Glide‘N’Serve Refrigerator Shelves Door-in-Door Door Bins Durabase 38 SMART FUNCTIONS SIGNATURE KITCHEN SUITE Application Smart Diagnosis™ Feature Smart Grid Function 43 MAINTENANCE Cleaning Air Filter Water Filter 48 TROUBLESHOOTING FAQs Before Calling for Service...

  • Page 3: Important Safety

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Safety Messages Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages.
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS • Do not bend or pinch the power cord excessively or place heavy objects on it. Operation • This appliance is intended to be used in household and similar applications such as: - staff kitchen areas in shops, offices and other working environments; - farm houses and by clients in hotels, motels and other residential type environments;...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Maintenance • Do not use a hair dryer to dry the inside of the refrigerator. • Do not light a candle to remove odors in the refrigerator. • In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ensure the area is adequately ventilated and contact an authorized service center.

  • Page 6: Caution

    IMPORTANT SAFETY INSTRUCTIONS Risk of Fire and Flammable Materials This appliance contains a small amount of isobutane refrigerant (R600a), which is combustible. When transporting and installing the appliance, care should be taken to ensure that no parts of the refrigerating circuit are damaged. Refrigerant squirting out of the pipes could ignite or cause an eye injury.

  • Page 7: Product Overview

    PRODUCT OVERVIEW PRODUCT OVERVIEW Product Features The images in this guide may be different from the actual components and accessories, which are subject to change by the manufacturer without prior notice for product improvement purposes. Exterior Filtered Water and Ice Dispenser Dispenses purified water and ice.
  • Page 8 PRODUCT OVERVIEW Interior Door-in-Door: SKSFD3613* LED Interior Lighting Lights up the inside of the refrigerator. In-Door Icemaker (Refrigerator) This is where ice is automatically produced and stored. Door Mullion Prevents the cold air in the refrigerator from escaping when the doors are closed. CAUTION •...
  • Page 9 PRODUCT OVERVIEW Cheese & Butter and Condiment Bins Cheese & Butter and Condiment bins are specially designed for these items, making spreading butter and slicing cheese easier. Adjustable Refrigerator Shelf The refrigerator shelves are adjustable to meet individual storage needs. Modular Door Bin Interchangeable bins can be arranged to suit storage needs.

  • Page 10: Installation

    10 INSTALLATION INSTALLATION Before Installing Installation Overview Please read the following installation instructions first after purchasing this product or transporting it to another location. Unpacking the Refrigerator Choosing the Proper Location Disassembling/Assembling Connecting the Water Line Leveling and Door Alignment WARNING •...

  • Page 11: Choosing The Proper Location

    INSTALLATION Unpacking the Refrigerator install a booster pump to compensate for the low pressure. WARNING • Use two or more people to move and install the refrigerator. Failure to do so can result in back Electricity injury or other injury. Use an individual, grounded outlet:115 Volts, 60 •...
  • Page 12 12 INSTALLATION Dimensions and Clearances • Check the dimensions of the appliance and the installation path to ensure there is sufficient room to move the refrigerator through doors or narrow openings. • If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/ Assembling the Doors and Drawers in this manual.

  • Page 13: Removing/Assembling Handles

    INSTALLATION Removing/Assembling Assembling Refrigerator Handles Handles If needed, reassemble the mounting fasteners on the door with a 1/4 in. Allen When moving the refrigerator through a narrow wrench. opening, removing the doors is preferred. If you must remove the handles, be very careful not to scratch the doors.

  • Page 14: Removing/Assembling Doors And Drawers

    14 INSTALLATION Removing the Left Refrigerator fasteners and tightening the set screws with a 1/8 in. Allen wrench. Door The water supply is connected to the upper right part of the rear surface of the refrigerator. Remove the clip in the joint area. Hold the water supply connection and gently push the collet to detach the water supply...
  • Page 15 INSTALLATION Rotate the hinge lever clockwise. Lift the top hinge free of the hinge lever latch CAUTION • When lifting the hinge free of the latch, be careful that the door does not fall forward. Lift the door from the middle hinge pin and remove the door.
  • Page 16 16 INSTALLATION WARNING • To prevent accidents, keep children and pets away from the drawer. Do not leave the drawer ® open. If the Durabase storage bin is removed from the freezer drawer, there is sufficient space for a small child or pet to crawl inside. Pull the drawer open to full extension.
  • Page 17 INSTALLATION Assembling the Right Refrigerator Door CAUTION • Do not hold the handle when removing or CAUTION replacing the drawer. The handle may come off, • Install the right-side door first. causing personal injury. Make sure that the plastic sleeve is inserted in the bottom of the door.
  • Page 18 18 INSTALLATION Push the water supply lines into the hole on NOTE the top case and pull them through the backplate. • The number of wire harnesses may vary depending on the model. • Ground wire is only present on some models. Assembling the Left Refrigerator Door CAUTION...

  • Page 19: Connecting The Water Line

    INSTALLATION Assembling the Hinge Cover • Where reverse osmosis water filtration system is connected to a cold water supply: Position the hinge cover in its place. Insert and - 40 - 60 psi minimum to reverse osmosis tighten the cover screws. system (2.8 kgf/cm - 4.2 kgf/cm , or less than...
  • Page 20 20 INSTALLATION fitting with a tube cutter and use a compression fitting. • Shutoff valve to connect to the cold water line. Drill the hole for the valve. The shutoff valve should have a water inlet with a minimum inside diameter of 5/32 in. at the •...
  • Page 21 INSTALLATION Tighten the pipe clamp. • Tighten the clamp screws until the sealing washer begins to swell. NOTE • Do not over tighten the clamp or you may crush the tubing. Saddle-Type Shutoff Valve Compression Nut Packing Nut Outlet Valve Ferrule (sleeve) Pipe Clamp Flush out the tubing.

  • Page 22: Leveling And Door Alignment

    22 INSTALLATION Turn the leveling leg to the left to raise that NOTE side of the refrigerator or to the right to lower it. It may take several turns of the leveling leg • Insert the end of the copper tubing into the to adjust the tilt of the refrigerator.

  • Page 23: Turning On The Power

    INSTALLATION Start the Icemaker Right Refrigerator Door The right refrigerator door does not have an • If the water line is connected, set the icemaker adjustable nut. power switch to the ON position. If the space between the doors is uneven, follow •...

  • Page 24: Operation

    24 OPERATION OPERATION Before Use Checklist Clean the refrigerator. Clean the refrigerator thoroughly and wipe off all dust that accumulated during shipping. CAUTION • Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator.

  • Page 25: Control Panel

    When the refrigerator is responding to a Demand Response (DR) message from the electric company, the Grid text illuminates. Wi-Fi The Wi-Fi button, when used with the SIGNATURE KITCHEN SUITE app, allows the refrigerator to connect to a home Wi-Fi network. Refer to Smart Functions for information on the initial setup of the application.
  • Page 26 26 OPERATION NOTE • To change the temperature mode from °F to °C (or vice versa) press and hold the Refrigerator button for approximately five seconds. The temperature indicator on the display window switches between Celsius and Fahrenheit. • The displayed temperature is the target temperature, and not the actual temperature of the refrigerator. The actual refrigerator temperature depends on the food inside the refrigerator.

  • Page 27: Sabbath Mode

    OPERATION Press the Freezer button repeatedly to toggle between the 3 ICE and 6 ICE modes. After 5 seconds of idle time, the last mode set will be saved, and the display will return to normal. NOTE • For more ice, select the 6 ICE mode. For clearer ice, select the 3 ICE mode. Display Mode (For Store Use Only) •...
  • Page 28 • If discolored ice is dispensed, check the water filter and water supply. If the problem continues, contact a SIGNATURE KITCHEN SUITE Customer Information Center. Do not use the water or ice until the problem is corrected.

  • Page 29: Ice Compartment

    Detaching the In-Door Ice Bin CAUTION Gently push the handle to close the ice • Only qualified service personnel from a compartment. SIGNATURE KITCHEN SUITE service center should disassemble or repair the icemaker.

  • Page 30: Automatic Icemaker

    30 OPERATION Automatic Icemaker NOTE • Throw away the first bin full of ice after WARNING installation. This is also necessary if the • DO NOT place fingers in the automatic icemaker refrigerator has not been used for a long time. when the refrigerator is plugged in.

  • Page 31: Storing Food

    OPERATION • The ice bin stores 20 - 30 pieces of round ice. Freezer Icemaker (Craft Ice This feature is only available on some models. Turning the Icemaker On/Off To turn the automatic icemaker On/Off, press the power switch on the icemaker to the ON ( | ) or OFF (O) position.
  • Page 32 32 OPERATION Storing Frozen Food CAUTION Check a freezer guide or a reliable cookbook for • Do not overfill or pack items too tightly into door further information about preparing food for bins. Doing so may cause damage to the bin or freezing or food storage times.

  • Page 33: Humidity Controlled Crispers

    OPERATION Removing/Assembling the NOTE Humidity Controlled Crispers • If you are leaving home for a short period, like a short vacation, the refrigerator should be left on. Open the doors completely and remove the Refrigerated foods that are able to be frozen will contents of the Door-in-Door case.

  • Page 34: Glide'n'serve

    34 OPERATION Slightly tilt up the front, insert the crisper into CAUTION the frame and push it back into place. • Do not place any items on the Glide'N'Serve cover. Line up the tabs on the Door-in-Door case with the slots on the door and push down Detaching/Assembling the until it snaps into place.

  • Page 35: Door-In-Door

    OPERATION underneath the back half of the shelf. Pull the Lower the front of the shelf so that the hooks front of the shelf forward to return to a full shelf. drop into the slots. CAUTION • Make sure that shelves are level from one side to the other.
  • Page 36 36 OPERATION CAUTION • Empty contents of EasyLift Bin before raising or lowering it to avoid personal injury or damage to the bin or its contents. • If the bin is not level after adjusting it, gently raise it until it clicks into place. Door-in-Door Case To open the Door-in-Door case, press on the area marked Pull to open.

  • Page 37: Door Bins

    OPERATION from side to side to accommodate items of different sizes. WARNING • If the Durabase divider is removed, there is enough open space for children or pets to crawl Door Bins inside. To prevent accidental child and pet entrapment or suffocation risk, DO NOT allow children or pets to touch or go near the drawer.

  • Page 38: Smart Functions

    • Settings • SIGNATURE KITCHEN SUITE is not responsible - Allows you to set various options on the for any network connection problems or any refrigerator and in the application.
  • Page 39 SUITE Application radio communications. However, there is no guarantee that interference will not occur in a Search for the SIGNATURE KITCHEN SUITE particular installation. If this equipment does application from the Google Play Store or Apple cause harmful interference to radio or television App Store on a smartphone.

  • Page 40: Signature Kitchen Suite Application

    40 SMART FUNCTIONS FCC RF Radiation Exposure SIGNATURE KITCHEN SUITE will also provide open source code to you on CD-ROM for a charge Statement covering the cost of performing such distribution This equipment complies with FCC radiation (such as the cost of media, shipping, and handling)

  • Page 41: Smart Grid Function

    SMART FUNCTIONS Hold the Lock button for three seconds. functions to save energy during peak usage periods. • If the display has been locked for over five minutes, you must deactivate the lock and • You can override the Smart Grid function any then reactivate it.
  • Page 42 Demand Response signal is sent. You can also override the Smart Grid function using the smart phone app. SIGNATURE KITCHEN SUITE Open API You can manage Smart Grid features for the SIGNATURE KITCHEN SUITE Smart Refrigerator. Please check the detailed specifications on the notice page on signaturekitchensuite.com.

  • Page 43: Maintenance

    MAINTENANCE MAINTENANCE Cleaning To help remove odors, wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 WARNING quart of water (26 g soda to 1 liter water.) Be sure the baking soda is completely dissolved so it does •...

  • Page 44: Water Filter

    44 MAINTENANCE Water Filter Before Replacing the Water Filter WARNING • To reduce the risk associated with choking, do not allow children under 3 years of age to have access to small parts during the installation of this product. Remove the filter from the inside of the cover by pressing the side of the filter in and pulling •...
  • Page 45 MAINTENANCE • Ensure all tubing and fittings are secure and free Replace the door bin. from leaks. After changing the filter, press and hold the Water Filter button for three seconds to reset the indicator light. Replacing the Water Filter •...
  • Page 46 46 MAINTENANCE Performance Data Sheet Model: LT1000P-S NSF System Trade Name Code: MDJ64844601 The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible limit for water leaving the system as specified in NSF/ ANSI Standard 42, Standard 53 and Standard 401.
  • Page 47 • While the testing was performed under standard laboratory conditions, actual performance may vary. For replacement filters, visit your local dealer or distributor or search for Parts & Accessories on the Support section of www.signaturekitchensuite.com For further assistance, contact the SIGNATURE KITCHEN SUITE Customer Information Center. USA: 1-855-790-6655 Canada: 1-888-289-2802 Replacement Cartridge: LT1000P-S or ADQ74793506 NSF is a trademark of NSF International.

  • Page 48: Troubleshooting

    48 TROUBLESHOOTING TROUBLESHOOTING FAQs Frequently Asked Questions What are the best temperature settings for my refrigerator and freezer? The default setting for the refrigerator is 37° Fahrenheit (3° Celsius). The default setting for the freezer is 0° Fahrenheit (-18° Celsius). Adjust these settings as necessary to keep food at desired temperatures.

  • Page 49: Before Calling For Service

    TROUBLESHOOTING Before Calling for Service Review this section before calling for service; doing so will save you both time and money. Cooling Problem Possible Cause & Solution Refrigerator is not A fuse in your home may be blown or the circuit breaker tripped. Or the appliance is cooling or has no connected to a GFCI (Ground Fault Circuit Interrupter) outlet, and the outlet's circuit power.
  • Page 50 50 TROUBLESHOOTING Problem Possible Cause & Solution Cooling system runs Refrigerator is replacing an older model. too much. • Modern refrigerators require more operating time but use less energy due to more efficient technology. Refrigerator was recently plugged in or power restored. •...
  • Page 51 TROUBLESHOOTING Problem Possible Cause & Solution Refrigerator or Incorrect temperature control settings. Freezer section is too • If the temperature is too cold, adjust the control one increment at a time and wait for the cold. temperature to stabilize. Refer to the Control Panel for more information. Frost or ice crystals Condensation from food with a high water content has frozen inside of the food form on frozen food...
  • Page 52 52 TROUBLESHOOTING Craft Ice Problem Possible Cause & Solution Icemaker is not Refrigerator was recently installed or icemaker recently connected. making ice. • The icemaker begins producing ice approximately 48 hours after the appliance is initially installed. The first batches of ice may not be round and clear. Icemaker is not In 3 ICE mode (default setting), the Craft Ice icemaker produces 1 batch of round ice making enough ice.
  • Page 53 TROUBLESHOOTING Problem Possible Cause & Solution Icemaker is not Refrigerator was recently installed or icemaker recently connected. making ice • It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Icemaker is not turned on.
  • Page 54 54 TROUBLESHOOTING Problem Possible Cause & Solution Ice is not dispensing. Unable to hear the sound of ice coming out? • In the control panel, select the modes for cubed ice and crushed ice alternately to dispense the ice. Doors are not closed completely. •...
  • Page 55 TROUBLESHOOTING Problem Possible Cause & Solution Water is not New installation or water line recently connected. dispensing. • Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously.
  • Page 56 56 TROUBLESHOOTING Problem Possible Cause & Solution Water has bad taste Water supply contains minerals such as sulfur. or odor. • A water filter may need to be installed to eliminate taste and odor problems. Water filter has been exhausted. •...
  • Page 57 TROUBLESHOOTING Problem Possible Cause & Solution The interior of the The refrigerator is located near a fire source, such as a fireplace, chimney, or candle. refrigerator is • Make sure that the refrigerator is not located near a fire source, such as a fireplace, covered with dust or chimney or candle.
  • Page 58 58 TROUBLESHOOTING Wi-Fi Problem Possible Cause & Solution Trouble connecting The password for the Wi-Fi network was entered incorrectly. appliance and • Delete your home Wi-Fi network and begin the registration process again. smartphone to Wi- Fi network Mobile data for your smartphone is turned on. •...
  • Page 59 LIMITED WARRANTY TERMS AND CONDITIONS Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product. This limited warranty is valid only to the original retail purchaser of the Product (“You”) and applies only when purchased lawfully and...
  • Page 60 The cost of repair or replacement under these excluded circumstances shall be borne by You. TO OBTAIN WARRANTY SERVICE AND ADDITIONAL INFORMATION Call 1-855-790-6655 and select the appropriate option from the menu. Or visit our website at http://www.signaturekitchensuite.com Or by mail: SIGNATURE KITCHEN SUITE Customer Service P.O. Box 240007 Huntsville, AL 35813 ATTN: CIC...
  • Page 61 Canada TERMS AND CONDITIONS Should your SIGNATURE KITCHEN SUITE Refrigerator ("Product") fail due to a defect in materials or workmanship under normal and proper use, during the warranty period set forth below, SIGNATURE KITCHEN SUITE will, at its option, repair or replace the Product upon receipt of proof of the original retail purchase.
  • Page 62 • Damage or failure to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, acts of God, or any other causes beyond the control of SIGNATURE KITCHEN SUITE or the manufacturer; • Damage or failure resulting from misuse, abuse, improper installation, repair, or maintenance of the Product.
  • Page 63 Memo...
