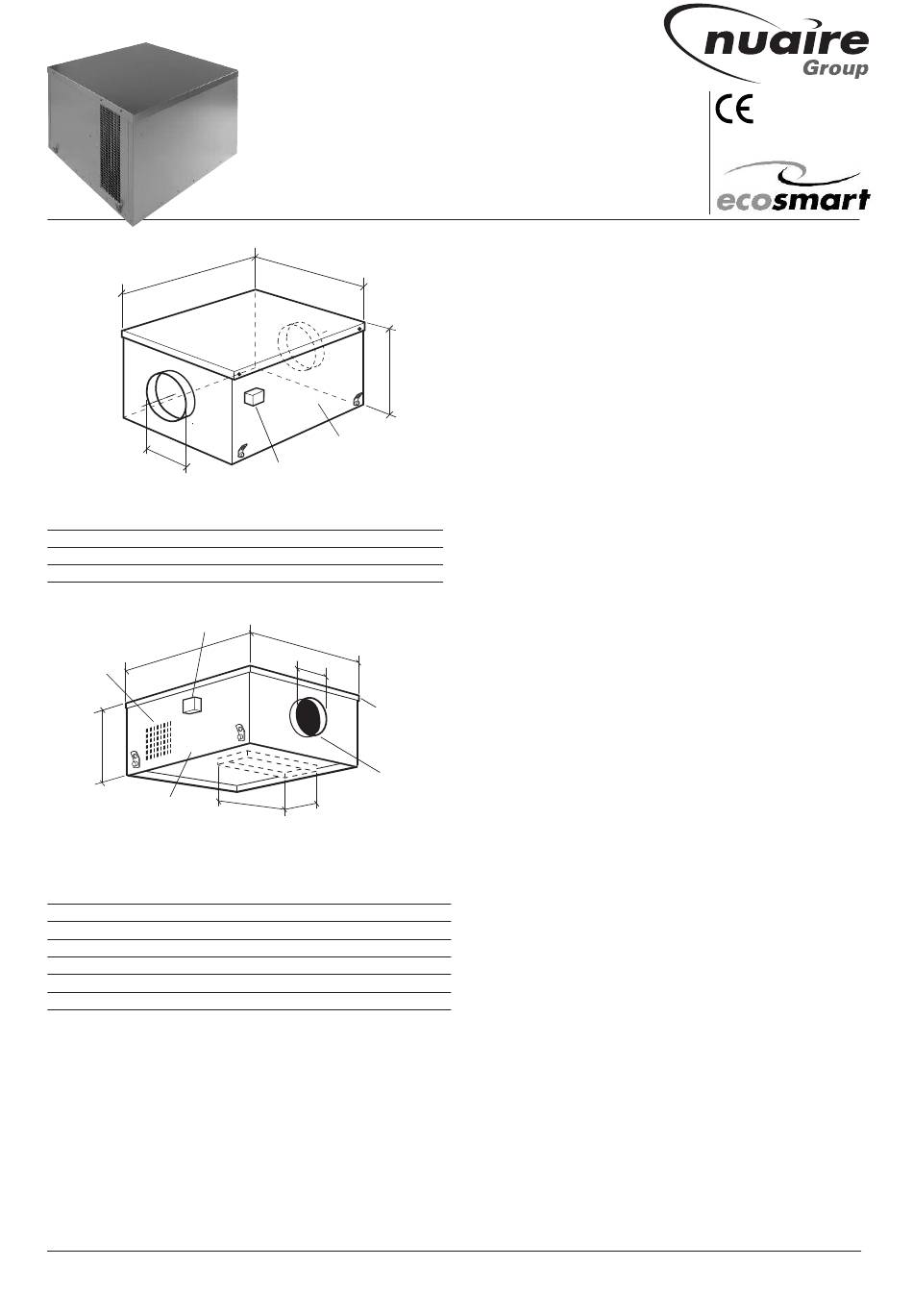

NuAire Ecosmart ESTCP Installation And Maintenance Manual

ESTCP-X & ESXCP-X
A
Removable
top panel
D

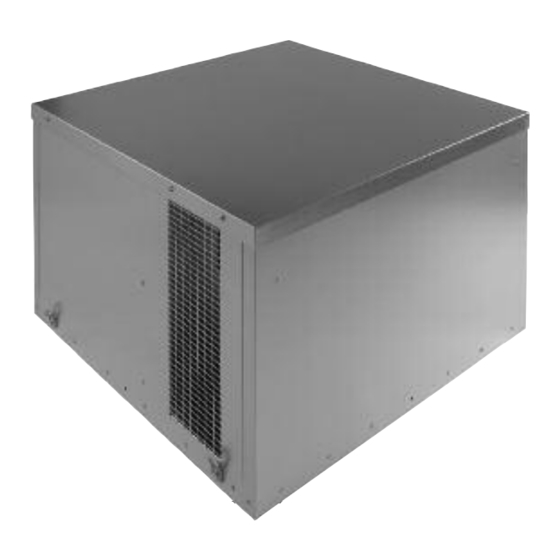

Fig. 1 View of a typical unit.
Table 1. Dimensions (mm)
Unit A
ESTCP4-X 1165
ESTCP6-X/ESXCP6-X 1165
ESTCP9-X/ESXCP9-X 1495
ESTCP-R & ESXCP-R, ESTCP-B, & ESXCP-B
Commissioning box
A
Opposed
outlet
grille
C
Control module
located internally
Fig. 2 View of a typical unit.
Table 2. Dimensions (mm)
Unit A
ESTCP4-R 1165 980
ESTCP4-B 1165 980
ESTCP6-R/ESXCP6-R 1165 980
ESTCP6-B/ESXCP6-B 1165 980
ESTCP9-R/ESXCP9-R 1495 1125
ESTCP9-B/ESXCP9-B 1495 1125
Introduction
The Nuaire range of constant pressure direct drive external
units consists of single and twinfan models with duties up
3
to a maximum of 1.5m /s. Twinfan units incorporate
run/standby and auto changeover features whereas the
single fan units have one fan only. Coding is as follows:
ESTCP-X and ESXCP-X are 'in-line' units supplied with rigid
circular spigots at each end and are suited to external and
internal duct mounted applications.
Nuaire Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2085 8400 F: 029 2085 8444 E: info@nuaire.co.uk W: www.nuaire.co.uk
Constant Pressure, Single phase,
Direct Drive Single & Twinfan Units
For external use only
Installation and
Maintenance
B
C
Control module
located internally
External
Commissioning box
Weight (kg)
B C D dia. EST ESX
980 575 250 85
980 575 400 86
1125 710 500 162
B
D
Removable
top panel
Circular inlet
spigot on end
F
E
of unit
Rectangular
Code: ESTCP*-R
bottom inlet spigot
ESTCP*- B only
Weight (kg)
B C D dia. E F EST ESX
575 250 - - 85
575 - 152 305 85
575 400 - - 86
575 - 229 457 86
710 500 - - 162
710 - 304 762 162
Models
ESTCP & ESXCP
ESTCP-R and ESXCP-R are supplied with rigid circular inlet
spigot and two opposed side discharge spigots, suited to
external roof mounted applications.
ESTCP-B and ESXCP-B are supplied with rigid circular inlet
spigot and two opposed side discharge spigots, suited to
external roof mounted applications.
Casings are manufactured from heavy gauge 'Aluzinc'
aluminium and zinc coated mild steel. Full size access panels
are fitted to the top of the units. These panels are fully
detachable for inspection and connection purposes. The units
incorporate two independent motors with high efficiency,
centrifugal impellers running in metal scrolls.
The motors are manufactured to BS 5000 and are suitable
for single phase supply. Airflow and failure monitors are
-
standard as is Class B insulation. The units are suitable for
70
operation in ambient temperatures up to 40
133
Handling
Handle the units carefully to avoid damage and distortion.
If mechanical aids are used to lift the unit, spreaders should
be employed and positioned so as to prevent the slings,
webbing etc. making contact with the casing.
Installation
The installation must be carried out by competent
personnel in accordance with the appropriate authority
and conforming to all statutory and governing regulations.
The units are suitable for internal or external use. All units
can be installed at any angle up to 60
sloping roof the unit must be blowing upwards toward
the roof ridge to ensure correct backdraught shutter
operation.
Units should always be positioned with sufficient space
-
to allow removal of the access cover and subsequent
-
70
removal of fan and motor assemblies etc.
70
Whether internally or externally mounted, the method of
133
fixing is the responsibility of the installer.
133
All units have a bottom skirt to allow for fixing directly onto a
suitably sized curb or builders upstand. Nuaire can supply a
matching prefabricated curb for these units. Details of
curbs and dimensions for a suitable external concrete
upstand are shown on page 2. Ductwork connections must
be airtight to prevent any loss of performance.
All units have an internal connection box requiring connection
to the mains supply on installation. It is the installers
responsibility to drill the case to provide access for the
electrical cables. Care should be taken not to damage internal
components and the cable entry should be properly sealed.
1
The EMC Directive
2014/30/EU
The Low Voltage
directive
2014/35/EU
o C.
o . However, on a
21. 10. 16. Leaflet Number 671171
