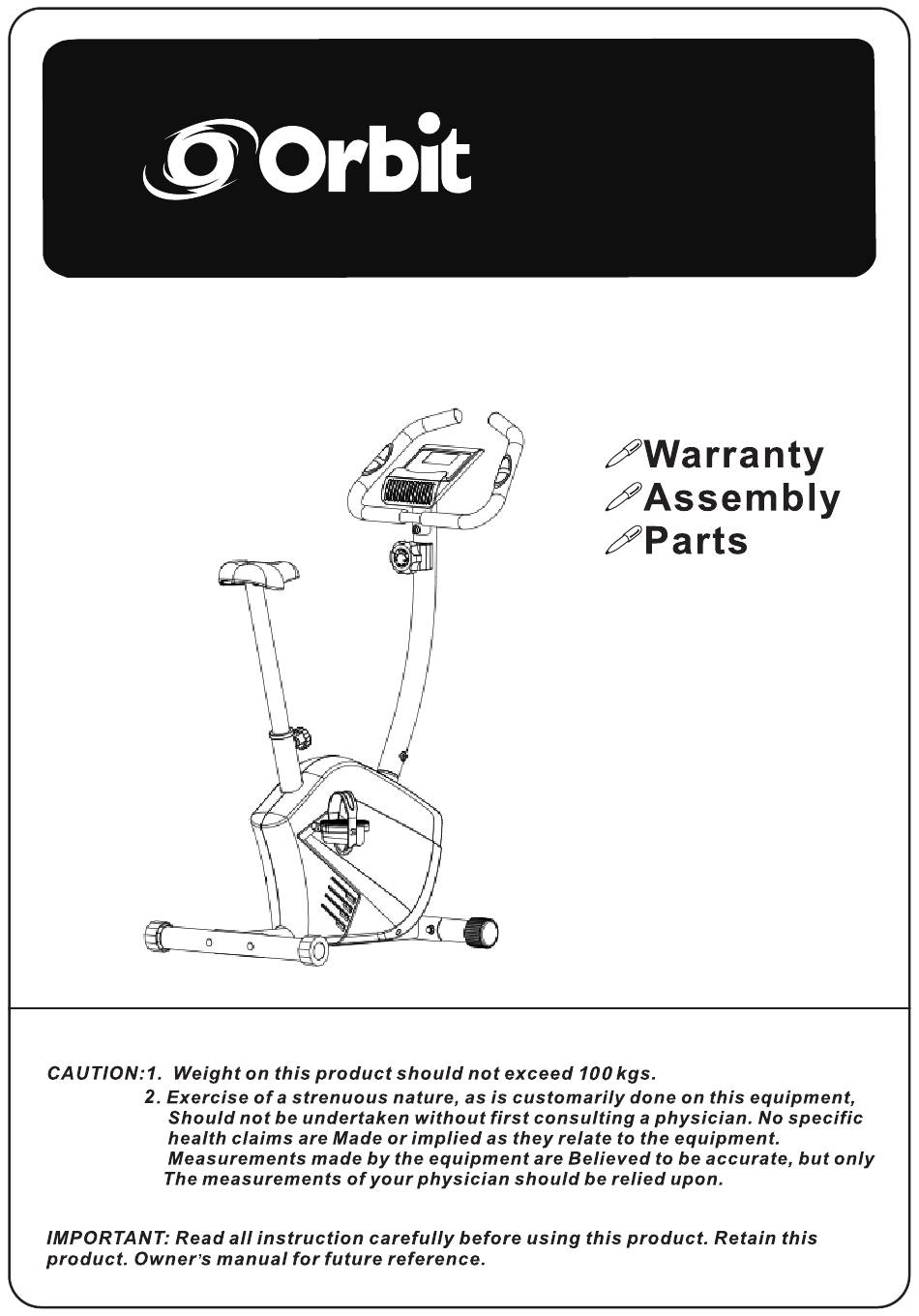

- Page 1 OBK103 OBR8301FC MAGNETICBIKE OBK103 Mag Bike OWNER'S MANUAL(BGB103) OBR8301FC Owner’s manual OBK103 OBR8301FC ONTENTS ORTANT INFORMATION ----- SEMBLY INSTRUCTIONS----- MPLETE EXPLOSION DRAWING ----- RTS LIST-----...
- Page 2 IMPORTANT INFORMATION SAFETY 1.Please keep this manual in a safe place for your reference when necessary. 2.Please do not assembly or use this equipment until you read this manual thoroughly & carefully. The safety and efficiency only can be achieved when the equipment is assembled ,maintained and used properly.
- Page 3 7.The equipment is designed for home use only, Maximum weight of the user is :100kg. 8.The equipment is not suitable for therapeutic use. 9.Wearing proper clothing while using the equipment, Avoid wearing loose clothing that may get caught in the equipment or that may restrict or prevent movements. 10.Keep your back straight while exercising.
-
Page 4: Maintenance
MAINTENANCE 1. The safety level of the equipment only can be maintained if it is regularly examined for damage and or /wear and tear.(e.g. handle bar, pedals and seat ...etc.).It is vital that any faulty parts are replaced and the it is not used until completed repaired. - Page 5 ASSEMBLY INSTRUCTIONS Step1 Fix the rear & front stabilizer(2)&(3)on the main frame(1) with four sets of waved washer(51), domed nut(63) & bolt(62) tightly by multi-function spanner. Note: the front stabilizer is with transport wheels.
- Page 6 Step2 --Loosen the adjusting knob(9) and pull it out first before sliding the seat support post(4) into the seat support post housing on the main frame(1), and align holes for your desired height, then release the adjusting knob and tighten it properly. --Then fix the seat(5) on the plate of the seat support post (4) properly by multi-function spanner.
- Page 7 Step3 --Connect the resistance adjuster wire (53)with (54) properly as well the console wire (13)with (14).please do it carefully following the assembly photo as attached. --Fix the front post (6) on the main frame with four sets of mushroom head allen screw (49)&...
- Page 8 Step4 --insert the pulse sensor wires (15) of the handle bar(7) into the hole that on the front post(6) and pull it out. --Fix the handle bar(7) on the handle bar fixing socket with two sets of mushroom head allen screw(49) &waved washer(51) properly and tighten it by allen spanner. --Screw out the Cross recess head screw(66) from the console(8), and connect the console wires properly, then align the console(8) with the plate welded on the front post(6), then fix the console(8) with the cross recess head screw(66) tightly...
- Page 9 Step5 Fix the pedal(10L) which is marked "L" on the crank(21) marked "L" tightly by multi-function spanner in anticlockwise, then fix the pedal (10R) which is marked "R" on the crank(21) marked "R" tightly by multi-function spanner in clockwise. Now the equipment is completed assembled, if you find it not leveled on the floor, you can adjust it by the adjusting foot pad(12).
- Page 10 COMPLETE EXPLOSION DRAWING...
-
Page 11: Parts List
PARTS LIST NAME/SPECIFICATION NAME/SPECIFICATION Main Frame Magnet board Rear Stabilizer Tension spring Front Stabilizer Axle of rotation Saddle Support Post Circlip Seat mushroom head allen screw Front Post Flywheel axle Handle Bar Bearing seat Console Bearing Adjusting Knob Bearing end cover piece Pedal(L) cross recess head screw Pedal(R) -
Page 12: Console Instruction
CONSOLE INSTRUCTION SPECIFICATIONS ： TIME （ TMR ） ……………………………………………………………….…00:00-99:59 SPEED(SPD) …………………………………………………………0.0-99.9KM/H(ML/H) DISTANCE(DIST) ………………………………………………………0.00-99.99KM(ML) CALORIES(CAL) ……………………………………………………………0.0-999.9KCAL ※ ODOMETER(ODO) ………………………………………………………0-9999KM(ML) ※ PULSE(PUL) ………………………………………………………………. …40-240BPM KEY FUNCTIONS: MODE: This key lets you to select and lock on to a particular function you want. ※... - Page 13 To choose the SCAN or LOCK if you do not want the scan mode, press the MODE key when the pointer on the function you want which begins blinking. FUNCTIONS: 1. TIME: Press the MODE key until pointer lock on to TIME. The total working time will be shown when starting exercise.
