- Page 1 PS450 Indoor Group Cycle Owner's Manual 18T Rev B CAUTION! Read all precautions and instructions in this manual before using this equipment.
-
Page 2: Table Of Contents
! CAUTION Read all precautions and instructions in this manual before using this equipment. Table Of Contents Important Safety information --------------------------------------------------------------3 Warm Up Exercises -------------------------------------------------------------------------5 Exploded View and Parts List -------------------------------------------------------------6 Subassembly Parts List -------------------------------------------------------------------19 Hardware List -------------------------------------------------------------------------------20 Assembly ------------------------------------------------------------------------------------21 Usage And Maintenance ------------------------------------------------------------------25 Maintenance Check List-------------------------------------------------------------------26... -
Page 3: Important Safety Information
Impor tant Safety Instructions WARNING! The safety of the product can be maintained only if it is examined regularly for damage and wear. See preventive maintenance section for details. LOCATION 1. Keep the area around the product clear of any obstructions, including walls and furniture. - Page 4 Impor tant Safety Instructions Training Area and Free Area Specifications Class: S Maximum User Weight: 150kg/ 330lbs Product Total Surface: 604*1272mm Product Total Mass: 47kg/ 104lbs ─ 4 ─...
-
Page 5: Warm Up Exercises
War m Up Exercises EXERCISE GUIDELINES WARNING! Before beginning this or any exercise program, you should consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems. Warming up prepares the body for the exercise by increasing circulation, supplying more oxygen to the muscles and raising body temperature. -
Page 6: Exploded View And Parts List

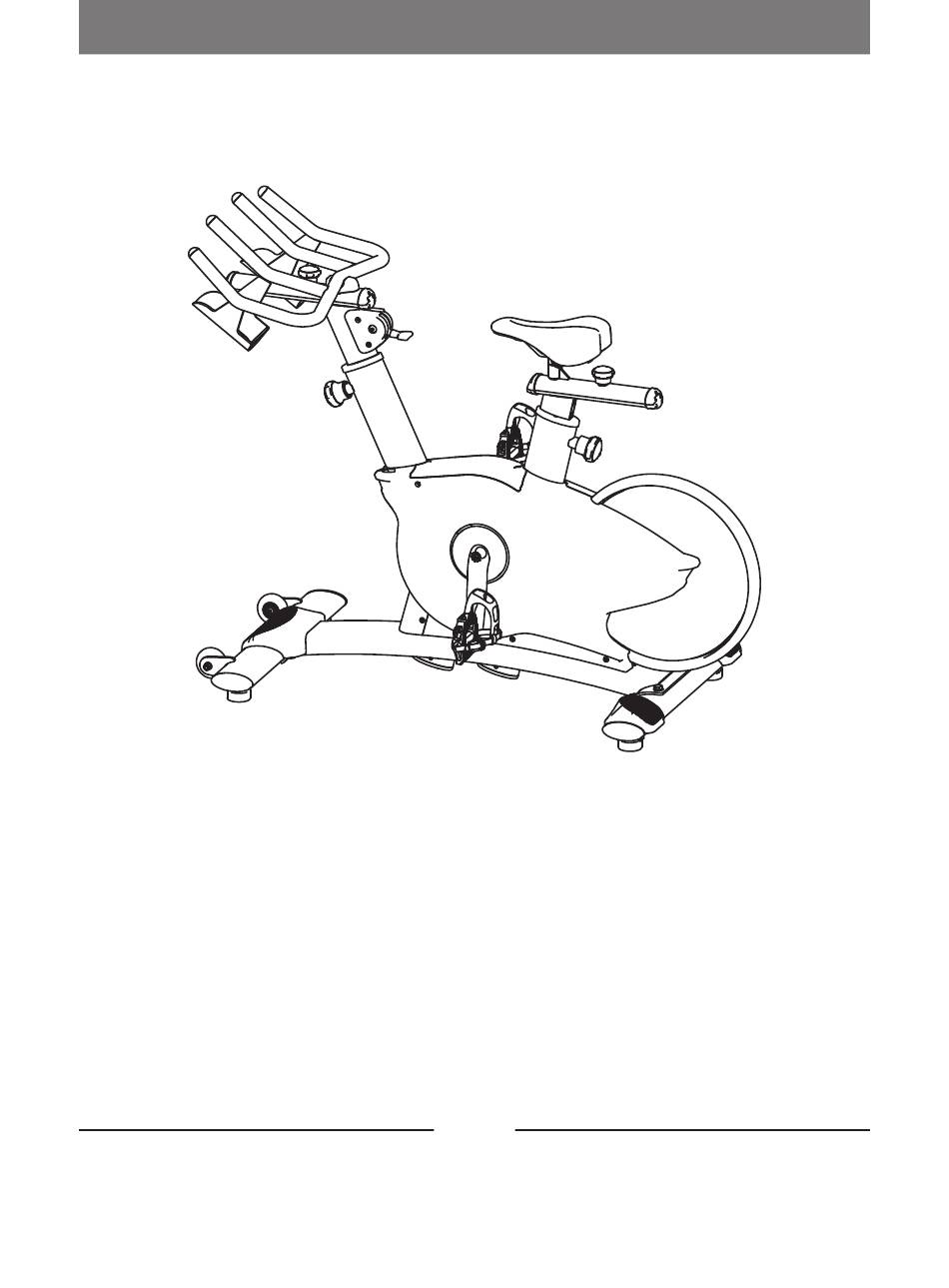

Exploded View and Par ts List Belt Pulley Assembly Part No. Description Grade No. Item No. 1.4.1 MT10200ASSY Shaft Assembly 1.4.2 MT10300 Aluminum Belt Pulley 1.4.3 CNLM10*15DHS20NL Countersunk Head Bolt, M10*15 Tension Frame Assembly Grade No. Part No. Description Item No. 1.7.1 PS4501100 Tension Frame... - Page 7 Exploded View and Par ts List Flywheel Assembly Grade No. Part No. Description Item No. 1.6.1 MT10401V1 Aluminum Flywheel 1.6.2 MT10402 Small Belt Pulley 1.6.3 MT10403 Sleeve,Φ16*Φ12.2*20.5 1.6.4 GB2766001-2RSC3TPI Bearing 6001 1.6.5 GB70M8*15N19NL Socket Head Bolt M8*15 1.6.6 IE951814700 Magnet ─...
- Page 8 Exploded View and Par ts List Magnetic Brake Assembly Item No. Grade No. Part No. Description 1.26.1 L-1592100 Traction Frame，Right 1.26.2 MT12200 Traction Frame，Left 1.26.3 MT12300 Copper Bearing 1.26.4 PS450B2601 U-tape Frame 1.26.5 MT12800 Brake Fixing Rack 1.26.6 MT11400 Magnet 1.26.7 MT11500 Brake Pads...
- Page 9 Exploded View and Par ts List Main Frame Assembly Item No. Grade No. Part No. Description PS450B0100 Main Frame GB17880.5M10*19.5DCS17 Rivet Nut M10 PS4500400V1 Shaft MT102ASSY Belt Pulley Assembly GB2766005-2RSC3TPI Bearing 6005 PS450B0400 Flywheel Assembly PS45011ASSY Tension Frame Assembly GB70M8*35DS20 Socket Head Bolt M8*35 GB41M8DS2 Nut M8...
- Page 10 Exploded View and Par ts List Main Frame Assembly Item No. Grade No. Part No. Description 1.27 PS4502000 Crank Arm, Left 1.28 PS4502100 Crank Arm, Right 1.29 MT14700 Sleeve,Φ32*Φ25*36 1.30 MT14800 Sleeve,Φ32*Φ25*7.5 1.31 PS303D1800 Screw M12*1.0*21 1.32 PS4503600 Cover For Cable 1.33 PS4502900V1 Cover, Lift...
- Page 11 Exploded View and Par ts List Main Frame Assembly ─ 11 ─...
- Page 12 Exploded View and Par ts List Front Base Assembly Grade No. Part No. Description Item No. PS450B0200 Front Base PE3001700 Foot DP86703100V1 PU Wheel PS4501800 Plug PNLM8*45N19 Hex Head Bolt M8*45 Washer Φ9*Φ16*1.6 GB958N19 NM8DS2 Nylon Insert Lock Nut M8 GB845ST4.2*16DS Screw ST4.2*16 GB6172.1M10N19...
- Page 13 Exploded View and Par ts List Rear Base Assembly Item No. Grade No. Part No. Description PS4500300 Rear Base PE3001700 Foot PS4501800 Plug PS4502200 Base Cover GB845ST4.2*16DHS Screw ST4.2*16 PS4502300 Special Washer GB70M5*20DHS4 Screw M5*20 GB6172.1M10N19 Nut M10 ─ 13 ─...
- Page 14 Exploded View and Par ts List Seat Frame Assembly Part No. Description Grade No. Item No. PS4501501 Seat Support Frame PS4501502 Seat Frame PS4503700 Knob GB70M4*10N19 Screw M4*10 DQ6N19 Stainless Steel Washer PS4501503 Stainless Steel Plate PS4501603V1 Fixed Plate On Both Sides PS4501506 Upper Sliding Block End Cover PS4501507...
- Page 15 Exploded View and Par ts List Handle Bar Supporting Assembly Item No. Grade No. Part No. Description 1.24.1 PS450B1601 Handle Bar Support Frame 1.24.2 PS4501603V1 Fixed Plate On Both Sides 1.24.3 PS4501507 Lower Sliding Block End Cover 1.24.4 GB70M4*10N19 Screw M4*10 1.24.5 GB17880.5M6*16.5DS17 Rivet Nut M6...
- Page 16 Exploded View and Par ts List Handle Bar Supporting Assembly ─ 16 ─...
- Page 17 Exploded View and Par ts List Handle Bar Assembly Item No. Grade No. Part No. Description PS450B1701 Aluminum Handle Bracket PS450B1702 Handle Bar CNLM10*20DHS18NL Countersunk Head Bolt, M10*20 PS4501506 Upper Sliding Block End Cover GB70M4*10N19 Screw M4*10 GB70M5*6N19 Screw M5*6 DQ6N19 Stainless Steel Washer PS4503700...
- Page 18 Exploded View and Par ts List Overall Grade No. Part No. Description Item No. PS450B01ASSY Main Frame Assembly PS450B02ASSY Front Base Assembly PS45003ASSY Rear Base Assembly VP-S5-L Left Pedal VP-S5-R Right Pedal VL-3032-BSR VELO Seat PS450B17ASSY Handle Bar Assembly PS45015ASSY Seat Frame Assembly PS4504200 Cover，Front Base...
-
Page 19: Subassembly Parts List
Subassembly Par ts List Handle Bar Assembly Seat Frame Assembly Seat Front Base Assembly Rear Base Assembly Left & Right Pedal Cover Main Frame Assembly Hardware Manual ─ 19 ─... -
Page 20: Hardware List
Hardware List one M5*40 Socket Head Bolt (#17) four M10*25 Hex Bolt (#10) two M5*25 Socket Head Bolt (#19) four M8*20 Hex Bolt (#13) one Φ6.6*Φ23*2.0 Washer (#15) one Φ23.5*Φ10.5*7.1 Special Washer (#16) four Φ18*Φ8.5*6.5 Special Washer (#14) four Φ11*Φ20*2 four Φ9*Φ16*1.6 Washer (#11) Washer (#12) -
Page 21: Assembly
Assembly STEP 1 Fixing Front Base Assembly (#2) and Rear Base Assembly (#3) to Main Frame Assembly (#1) using: four M10*25 Hex Bolt (#10) four Φ11*Φ20*2 Washer (#11) four Φ9*Φ16*1.6 Washer (#12) four M8*20 Hex Bolt (#13) four Φ18*Φ8.5*6.5 Special Washer (#14) STEP 2 Attach Left Pedal (#4) and Right Pedal (#5) to the crank, lock tightly. - Page 22 Assembly STEP 3 1. Remove the two M4*10 Screws (#A), Lower Sliding Block End Cover (#B) and the Stainless Steel Plate (#C) from Main Frame Assembly (#1). 2. Attach Handle Bar Assembly (#7) to Main Frame Assembly (#1), Adjust the Knob Slider (#D) to make sure the Handle Bar Assembly (#7) can attach to Main Frame Assembly (#1) smoothly.
- Page 23 Assembly STEP 4 1. Attach Seat Frame Assembly (#8) to the Main Frame Assembly (#1). 2. Attach Seat (#6) to the Seat Frame Assembly (#8), lock tightly. ─ 23 ─...
- Page 24 Assembly STEP 5 Fixing Front Base Cover (#9) to Main Frame Assembly (#1) using: one Washer Φ6.6*Φ23*2.0 Washer (#15) one Special Washer (#16) one M5*40 Socket Head Bolt (#17) two Special Washer (#18) two M5*25 Socket Head Bolt (#19) ─ 24 ─...
-
Page 25: Usage And Maintenance
Usage And Maintenance Using introduce 1. When moving the machine, you can grasp the Handle Bar, and press down. Then you can move it. 2. When using the machine, you must ensure it stand steadily on the ground. If it isn't steady, you can adjust the Adjusting Feet. 3. -
Page 26: Maintenance Check List
Maintenance Check List ─ 26 ─...
