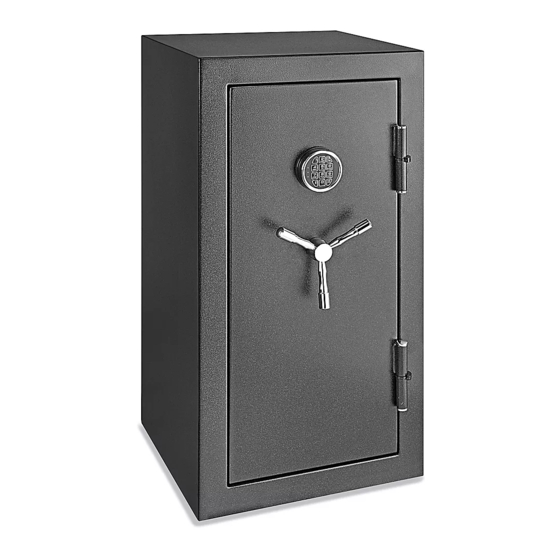

U-Line H-6732 Quick Start Manual

H-6732
FIRE RATED
FLOOR SAFE
TOOLS NEEDED
Drill Phillips Screwdriver
HARDWARE INCLUDED
70 mm Lag Washer x 2
Screw x 2
IMPORTANT! Record serial number from the tag
on the back of the safe or from the tag on the
front bottom corner of safe.
Keep keys and combination in a secure place,
away from children.
Do not store the backup key, combination or
this document in the safe.
WARNING! Keep safe closed and locked at
all times when not in use. Children could
accidentally be locked inside the safe.
Do not move this safe using its handle. The
handle should only be used for opening and
closing the door of the safe.
Do not store electronic media, computer disks,
audio-visual media or photographic negatives
in this safe. This material will not survive the
rated internal temperature of the safe. This
material may be damaged or destroyed.
HANDLE ASSEMBLY
1. Screw three handle spokes into hub and hand
tighten. Spokes are located in front foam
packaging. (See Figure 1)
NOTE: Do not use this handle to move the safe.
Figure 1
PAGE 1 OF 9
1-800-295-5510
uline.com
17 mm Wrench 7/16" Drill Bit
40 mm Plastic Anchor
x 2
USAGE
Pour le français, consulter les pages 7-9.
3/8" Drill Bit
BATTERY INSTALLATION
1. You must first install the battery, which is located in
the front protective styrofoam.
NOTE: When changing the battery, always
hold the battery connecting cap while
disconnecting or attaching the battery. Do not
pull on the wires. Doing this could cause the
power supply to become disconnected from
the lock.
2. This safe uses one 9V alkaline battery.
3. When the battery is low and you press a button on
the keypad, a red light will turn on, warning you that
the battery is low.
4. To replace battery, remove cover by pressing tab
and turning cover. (See Figure 2)
Figure 2
5. Replace old battery and screw cover back in place.
Para Español, vea páginas 4-6.
0721 IH-6732
