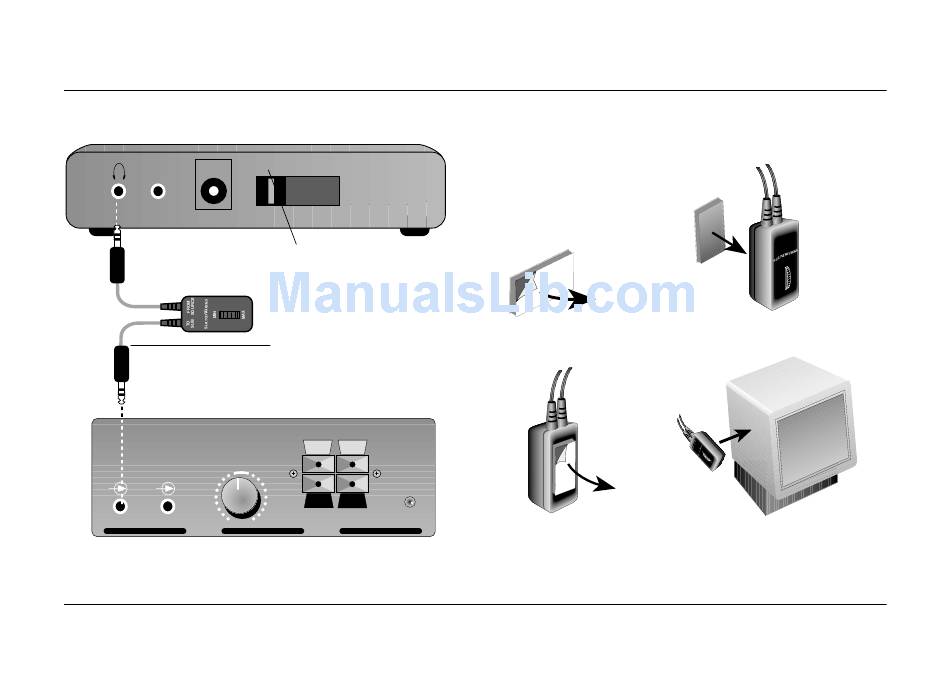

Connecting Music Sources

DCIN
PHONES
LINE
OUT
Program Source
BASS
LEVEL
AUDIO AUDIO
INPUT 1 INPUT 2
Subwoofer Control Panel
OFF 1 2
BASS BOOST
Some portable players have "bass boost"
circuits designed for their small
headphones. Switch these circuits OFF
when playing through MicroWorks .
When connecting tape and CD players, it is
generally preferable to use the headphone
output; fixed "line out" outputs will work, but
any noise present in the player may be
more audible at high levels.
L + R +
L – R –

Mounting The Volume Control

The enclosed mounting strip is
semipermanent—it holds well but
can be peeled off gently. Be sure that
the mounting surface, such as the
computer monitor or your desktop,
is smooth and clean.
Remove protective paper from one
1
side to reveal adhesive.
Remove remaining paper strip.
3
5
M
F R O
R C E
T O S O U
S U B
M IN
M A X
Press exposed adhesive side
2
firmly against back of volume
control.
Press control firmly against
4
mounting surface
(desktop, keyboard or monitor).
