Program Source Connections

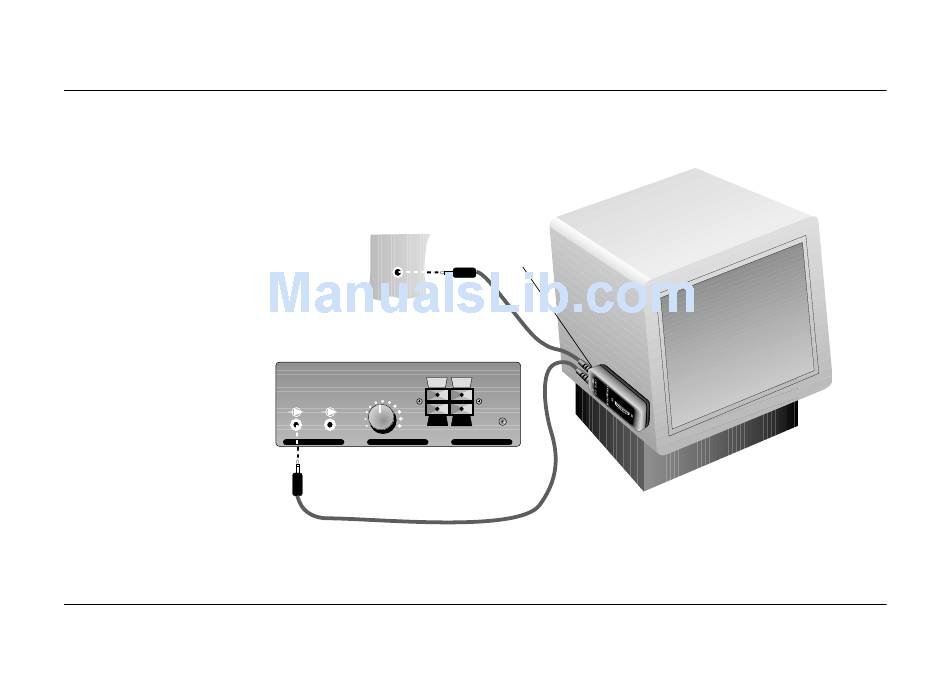

Connect the Volume Control's short
lead (FROM SOURCE) to the
audio output of your computer or
other program source. Connect the
long lead (TO SUB) to either audio
input of MicroWorks' subwoofer
as shown. The control can be
mounted on the side of your
computer monitor or other surface
using the adhesive strip provided
(see opposite page).
Your program source may have
separate left and right "RCA style"
outputs instead of a stereo mini-
jack. If so, you will need a "Y"
conversion adapter.
If the program source has its
own level control, set it at least
half-way up, and then use the
Volume Control to achieve your
preferred playback level. If there's
audible hum or hiss, or if the
Volume Control adjustment range
is unsatisfactory, readjust the
program source's level control up
or down (and the Volume Control
accordingly).
It is possible to connect two
program sources to MicroWorks
since it has two stereo mini jack
inputs
(see page 7).
AUDIO
OUTPUT
Computer CPU/
program source
Short lead
(FROM SOURCE)
L +
BASS
LEVEL
AUDIO AUDIO
INPUT 1 INPUT 2
L –
Subwoofer
Long lead
(TO SUB)
Volume Control
R +
R –
4
Computer monitor
