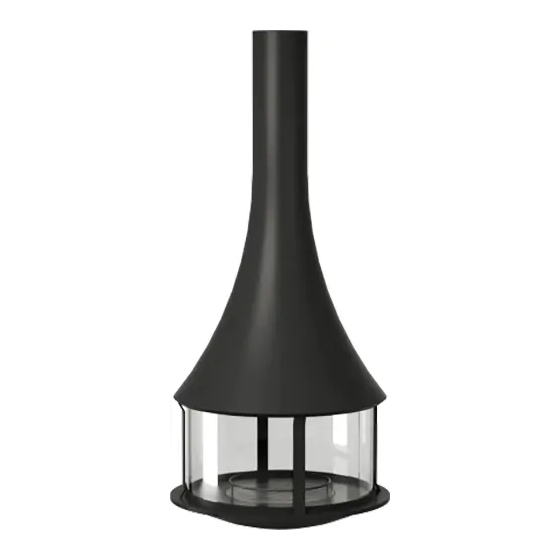

JC BORDELET Sculpt Eva 992 Install Manual

Hide thumbs Also See for Sculpt Eva 992:

Advertisement

Table of Contents

Jc BoRDeLet
Eva 992 | Zelia 908 | Lea 998 | Tatiana 997 |
Linea 914
1. SpecificationS & coMponentS LiSt
1.1 BoRDeLet tatiana 997
1.2 BoRDeLet Lea 998
1.3 BoRDeLet zeLia 908
1.4 BoRDeLet eva 992
1.5 BoRDeLet Linea 914
2. pReLiMinaRY inStaLL GUiDe
3. inStaLLation GUiDe
4. opeRation & Maintenance
5. WaRRantY
6. teSt ReSULtS
notice to inStaLLeR:
these instructions must be left with the owner, who should keep them for future use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sculpt Eva 992 and is the answer not in the manual?

Questions and answers

Related Manuals for JC BORDELET Sculpt Eva 992

Summary of Contents for JC BORDELET Sculpt Eva 992

  • Page 1 Jc BoRDeLet Eva 992 | Zelia 908 | Lea 998 | Tatiana 997 | Linea 914 1. SpecificationS & coMponentS LiSt 1.1 BoRDeLet tatiana 997 1.2 BoRDeLet Lea 998 1.3 BoRDeLet zeLia 908 1.4 BoRDeLet eva 992 1.5 BoRDeLet Linea 914 2.
  • Page 2 Congratulations! ComplianCe plate and serial number. thank you for choosing Sculpt fireplaces as your heater of choice. Your fireplace is the result of careful design, artisan engineering and safety tests. If it is properly installed, used and maintained, you may be sure that you will have an outstanding heating feature in your home for years to come.
  • Page 3 1.1 SpecificationS & coMponentS tatiana 997 1.1 SpecificationS & coMponentS tatiana 997 Tatiana 997 4mm thick spun steel material Minimum 1770mm diameter X 40mm thick hearth dimensions clearances to combustibles Minimum 750mm includes Fire grate 120kg fireplace weight 240mm, 290mm, 340mm triple skin flue sizes 4.5m minimum flue height...
  • Page 4 1.2 SpecificationS & coMponentS lea 998 1.2 SpecificationS & coMponentS lea 998 Lea 998 4mm thick spun steel with safety glass material Minimum 1300mm diameter X 40mm thick hearth dimensions Minimum 500mm clearances to combustibles includes Fire grate and ash pan fireplace weight 130kg 215mm, 265mm, 315mm...
  • Page 5 1.3 SpecificationS & coMponentS Zelia 908 1.3 SpecificationS & coMponentS Zelia 908 Zelia 908 4mm thick spun steel with safety glass material Minimum 1770mm diameter X 40mm thick hearth dimensions Minimum 750mm clearances to combustibles includes Fire grate and ash pan fireplace weight 150kg 240mm, 290mm, 340mm...
  • Page 6 1.4 SpecificationS & coMponentS eva 992 1.4 SpecificationS & coMponentS eva 992 Eva 992 material 4mm thick spun steel with safety glass Minimum 1770mm diameter X 40mm thick hearth dimensions Minmum 750mm clearances to combustibles includes Fire grate and ash pan fireplace weight 200kg 265mm, 315mm, 365mm...
  • Page 7 1.5 SpecificationS & coMponentS linea 914 1.4 SpecificationS & coMponentS linea 914 Linea 914 material 4mm thick spun steel with safety glass Minimum 1300mm diameter X 40mm thick hearth dimensions 850mm clearances to combustibles includes Fire grate and ash pan fireplace weight 130kg 240mm, 290mm, 340mm...

  • Page 8: Important Warning

    2. pReLiMinaRY inStaLL GUiDe 2. pReLiMinaRY inStaLL GUiDe it is the users duty to make themselves aware of and apply all national or more restrictive local standards and instructions (aS/nzS 2918:2018). iMPortant PreliMinary install inForMation Prior to unpacking and installation ensure the appliance has not been damaged during transit. Please ensure you check the glass/door, the air flow damper controls and the door locking mechanism where For the installation and use of this appliance, the fitter and the user should strictly adhere to local and applicable.

  • Page 9: Assembling The Fireplace

    3. inStaLLation GUiDe 3. inStaLLation GUiDe 1. installing tHe bearing frame and tHe dropper box assembling tHe fireplaCe Determine the exact location of the bearing frame and the dropper box above the ceiling in accordance For reasons of shipping and handling, all our fireplaces are delivered in separate components and with the proposed location of the;...

  • Page 10: Installing The Fireplace

    3. inStaLLation GUiDe 3. inStaLLation GUiDe 6. air intake 2. installing tHe additional pipes air intake is essential for the proper operation of the appliance, if installed in a well insulated/ 6 or for added height (floor to ceiling), install the additional pipes (if required), onto the dropper box (using more star rated home.
  • Page 11 3. inStaLLation GUiDe 4. opeRation & Maintenance installing Zelia 908, eva 992, and linea 914 safety glass panels operation & user guide oPerating the WooD Burner With the Door oPen exPoses you to MultiPle haZarDs (Falling eMBers, sMoke eMissions in the rooM, etC.). alWays oPerate the aPPlianCe With the Door CloseD.
  • Page 12 6 MontHS 2 YeaRS medium Combustion This is the recommended mode for operating JC Bordelet fireplaces as it will deposit the least amount 9 MontHS 2 1/2 YeaRS of creosote on glass panels and in the flue. the combustion air control should be set to half-open after ignition.
  • Page 13 4. opeRation & Maintenance 4. opeRation & Maintenance 4. opeRation & Maintenance maintenanCe (Continued) operation & user guide (Continued) Cleaning tHe glass (Continued) reCommended fuel We recommend waiting for the glass to cool before cleaning it. the use of products that are too aggressive if the wood is piled up loosely, it will burn faster because the necessary oxygen for the combustion will (eg.

  • Page 14: Test Reports

    Place the screen on the chimney top and inspect the lower parts for cracks through which fire ManUfactUReR Jc BoRDeLet flames may escape. a hot screen reduces the draught in the chimney and, consequently, slows down the soot burning process.

  • Page 15: Warranty Card

    6. WaRRantY warranty JC Bordelet fireplaces are guaranteed for 5 years. This excludes the ash pan, ash grates, fire grate retainers and baffles which are guaranteed for 1 year. glass is not covered under any warranty. the warranty becomes effective at the date of purchase.
  • Page 16 7. finaL WoRDS Sculpt fireplace collection is an australian owned company who exclusively supply some of world’s most sought after high-end luxury fireplaces. Intent on providing Australians with a dynamic collection of designer fires, Sculpt fireplace collection has strategically gathered not only award winning fireplace designs, but also fireplaces that have been manufactured with high quality materials and the best raw steel that is built to last.
  • Page 17 1300 851 304 info@sculptfireplaces.com.au edition 15/02/2021...

This manual is also suitable for:

Sculpt zelia 908Sculpt lea 998Sculpt tatiana 997Sculpt linea 914
