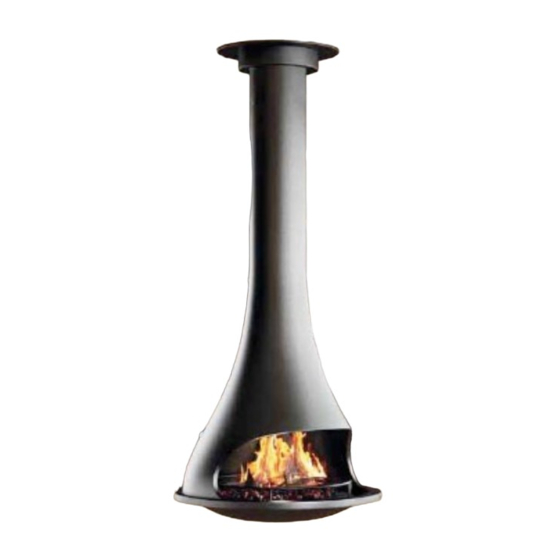

INSTALLATION, MAINTENANCE AND OPERATION MANUAL FOR TATIANA 997 CFO
CENTRALLY-MOUNTED OPEN FIREPLACE
Tested and approved to ULC-S610 and UL 127 standards by
Manufactured by : BORDELET INDUSTRIE S.A.S. – Z.I. de Lhérat – 63310 RANDAN - FRANCE
This appliance is:
The manufacturer may update this manual from time to time and cannot be responsible for
problems, injuries, or damages arising out of the use or misuse of information contained in
this manual.
T
he installer must read these instructions carefully and, once the installation is complete, turn this
manual over to the consumer for future reference.
Page 1
Advertisement
Table of Contents
Related Manuals for JC BORDELET Tatiana 997CFO
Summary of Contents for JC BORDELET Tatiana 997CFO
- Page 1 INSTALLATION, MAINTENANCE AND OPERATION MANUAL FOR TATIANA 997 CFO CENTRALLY-MOUNTED OPEN FIREPLACE Tested and approved to ULC-S610 and UL 127 standards by Manufactured by : BORDELET INDUSTRIE S.A.S. – Z.I. de Lhérat – 63310 RANDAN - FRANCE This appliance is: The manufacturer may update this manual from time to time and cannot be responsible for problems, injuries, or damages arising out of the use or misuse of information contained in this manual.
-
Page 2: Table Of Contents
In order to protect the exterior finish of the fireplace and the supplied connecting hardware to the chimney, JC Bordelet S.A.S. have supplied special gloves to be used during the installation so as not to mar the finish of the fireplace and it’s related components. -
Page 3: Safety Rules For Operating The Fireplace
6. Only use the grate made by JC Bordelet S.A.S. to build a fire. Only burn the quantity of firewood it can hold (Max. 11 kg/24 lbs). Never overfire the fireplace, if any part of the fireplace or smoke pipe is glowing red, then you are overfiring. -
Page 4: The Fireplace
1- Before beginning the fireplace installation, check the local building codes and, if required, obtain a building permit from the local authorities. Install the fireplace only as described in this manual and only using components provided by JC Bordelet S.A.S. This fireplace must only serve as a supplementary heat source. A sufficient and permanent heat source should already be available in the home. -
Page 5: Fireplace Installation
200% structural safety factor when reinforcing the structure around the proposed location of the supporting frame and Load Bearing Support/ Chimney Connector. TABLE 1: WEIGHTS CEILING-SUSPENDED TATIANA 997CFO FIREPLACES (Approx.) (with e.g. ASHT SECURE-TEMP + 10’’ Chimney - 25mm (1’’) wall thickness) (Height of installation floor to ceiling: Min. - Page 6 4. Install the fireplace onto the smoke pipe with the lower shelf of the fireplace 650mm (26 5/8’’) above the finished floor. Make sure that all the fasteners are tight 5. Install all the internal components of the fireplace and firescreen to complete the installation. View of Tatiana 997 Centrally-Located Fireplace Warning: For centrally-located fireplaces, a minimum clearance to combustibles of 1.2m (48’’) must be maintained 360...
- Page 7 Page 7...
- Page 8 Page 8...
-
Page 9: Chimney Installation And Approvals
2.2.4 CHIMNEY INSTALLATION: 1. For optimum performance, the minimum chimney height from Load-Bearing Support to roof cap is 4.6m (15’) to 5.2 m (17’). Additional height will increase draft and decrease the tendency to smoke. If only the minimum chimney height is installed, operating conditions must be optimal; interior chim- ney, minimum chimney height of 45cm (18”) before any offset, and total respect of the chimney manufacturer installation instructions. -
Page 10: Offset Installation
2.2.5 Typical Approved Installation of an Offset in Smoke Pipe 2.2.6 Installation of Anti-Sway Bracket Page 10... -
Page 11: Operating The Tatiana Fireplace
2.3 OPERATING THE TATIANA 997 FIREPLACE Before using the fireplace always open the smoke pipe damper (as shown on left) with damper cane. Once the fire has died down and the fireplace is cool to the touch, close the smoke pipe damper (as shown on right) with damper cane. - Page 12 Wait until the kindling fire has turned into a good bed of embers and prior to reloading, using two cool hand tools, carefully remove the firescreen, stack some dry firewood on top of the embers and reinstall the firescreen using two cool hand tools. Always keep the firewood on top of the grate to allow proper primary air flow and to prevent damage to the firescreen.
- Page 13 Do not use any metal polish or abrasives. Do not touch, rub or try to clean the fireplace and smoke pipe when hot. For deep scratches, touch them up with heat resistant paint as supplied by JC Bordelet S.A.S. Page 13...
- Page 14 2.4.4 Disposal of Ashes As a precaution, do not attempt to clean out the fireplace when the unit is hot. Wait until the ashes and the internal components have thoroughly cooled (min. 24 hours) before removing them from the fireplace. 1.
- Page 15 2.4.6 REPLACEMENT PARTS LIST For TATIANA 997 Centrally-Located Fireplace Illustration Part Name Part Number Grate for TATIANA 997 Central Model AGF997CFO Expanded Metal Mesh Firescreen PE997FO Combustion Air Intake (Recommended Option) Page 15...
- Page 16 JC Bordelet Load bearing Support which will also provide adequate mounting and support for the fireplace suspended from it. The authorized qualified installer will be...
- Page 17 Within ten days from date of installation, the original purchaser must register his warranty by sending the attached warranty card to the local Bordelet Industrie S.A.S. distributor whose name and address will be furnished by the authorized installer. If during the warranty period the fireplace or a component ever becomes defective, the original purchaser must provide the following information when contacting his Bordelet Industrie S.A.S.
- Page 18 ADDENDUM: INSTALLATION OF A VENTED GAS FIRE LOG SET IN A JC BORDELET TATIANA 997 CENTRALLY-LOCATED OPEN FIREPLACE. This fireplace has knockouts for the installation of a pipe for natural gas or propane for connection to a 61cm( 24’’) max. width vented gas fire log set ( max. capacity 16.2 kw (55,000 btu/hr): and 1) Incorporating an automatic shutoff device: and 2) Complying with ANSI Z21.60-2012/CSA 2.26-2012, the Standard for Decorative Gas Burning Appliances For Installation In Solid-Fuel Burning Factory-Built Fireplaces approved to UL 127: and...
- Page 19 WARNING: CARBON MONOXYDE POISONING MAY LEAD TO DEATH When used without proper levels of combustion air, vented gas log sets may give off carbon monoxide, an odorless, colorless, poisonous gas. Certain people such as: pregnant women, or suffering from heart or liver disease, anemia, or intoxicated by alcohol, or residing at high altitude are more affected by carbon monoxide than others.
- Page 20 The state of Massachusetts requires the chimney damper to be removed or to be welded in the fully open position. The State of Massachusetts also mandates that the installation be made by a Massachusetts licensed plumber or gas fitter. Warning: The vented gas log set is designed as an attended appliance and can only be operated in the presence of adults.
- Page 21 Installation of a vented Gas Fire Log Set in a JC Bordelet Fireplace approved to UL 127 1) If fireplace has been used to burn wood, remove fireplace grate and remove all accumulated ashes. Consult section 2.4.4 on page 14 of this installation manual for this step. Replace grate with mounting plate for gas fire log.
- Page 22 Typical Vented Gas Log Set Page 22...
- Page 23 Combustion Air Intake (Recommended Option) JC Bordelet S.A.S. shall be held harmless from any and all claims by the buyer/user as a result of injury or damage to an ultimate user or other person caused by the installation of a vented gas log set in a JC Bordelet S.A.S. fireplace, whether the...
