Commercial Electric 56546101 Use And Care Manual

Package contents

Part Description Quantity
A Fixture Plate
B Diffuser Shade
NOTE: Keep your receipt and these instructions for proof of purchase.
WARNING: RISK OF ELECTRIC SHOCK. Ensure the electricity to the wires you are working on is shut off. Either remove the fuse or turn off the circuit breaker before removing an
existing light fixture or installing the new one.
If you are unfamiliar with electrical installations, we recommend you contact a qualified electrician to do the installation.

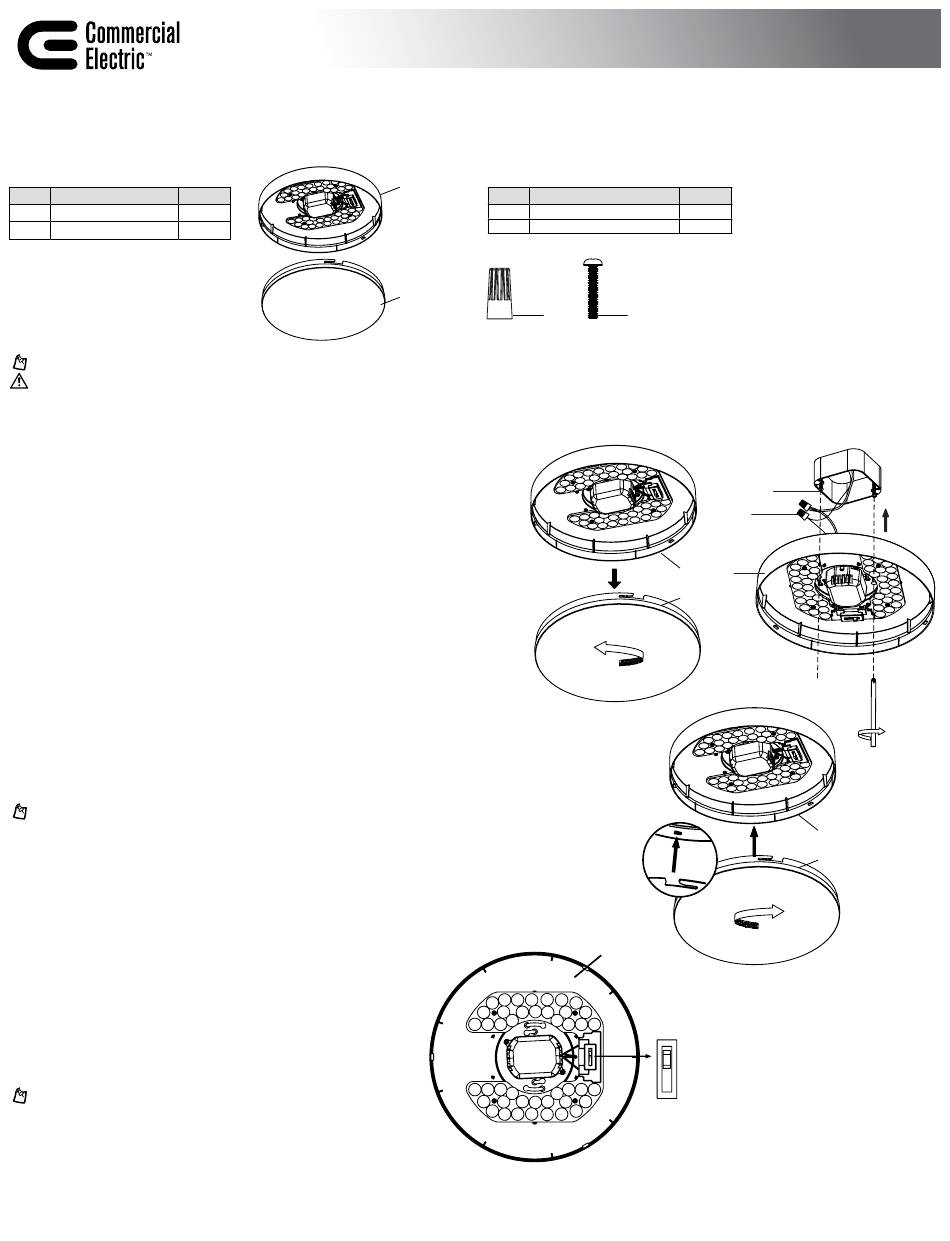

InstaLLatIon

Select a suitable location that can support the weight of the fixture. Determine the method for
mounting the fixture before drilling, based on the type of ceiling.
1. Turn the diffuser shade (B) counterclockwise to remove it from the fixture plate (A).
2. Screw the mounting screws (BB) directly to the electrical box.
3. Connect the hot and neutral (black and white) wires from the fixture plate (A) to the same color
wires from the electrical box.
4. Cover the wire connections using the wire connectors (AA).
5. Wrap the wire connectors (AA) with electrical tape for a more secure connection.
6. Position the wires back inside the electrical box.
7. Align the keyholes in the fixture plate (A) with the mounting screws (BB), allowing the heads of
the screws (BB) to come through the large ends of the keyholes.
8. Rotate the fixture plate (A) until the heads of the mounting screws (BB) slide into the narrow
ends of the keyholes.
9. Tighten the mounting screws (BB) to secure the fixture plate (A) to the electrical box.
10. Position the diffuser shade (B) into the fixture plate (A).
11. Turn the diffuser shade (B) clockwise to secure it to the fixture plate (A).
12. Restore power at the electrical panel. Turn on the light switch to activate the fixture.

aDjustIng the coLor temPerature of the LIght

This LED light fixture allows you to customize the color temperature of the light using
three settings: soft white, bright white, or daylight.
1. Choose your favorite correlated color temperature (CCT) from three options: 3000k
Soft White, 4000k Bright White, or 5000k Daylight.
2. Move the toggle switch on the fixture plate (A) to make your selection before
attaching the diffuser shade (B) to the fixture plate (A).
NOTE: The factory setting for the correlated color temperature (CCT) is 3000K,
which is the warmest white light.

seLectIng maIn LIght or nIghtLIght moDe

The product can be used in one of two modes: Main light mode, which provides full
brightness and allows selection from three color temperatures, or nightlight mode.
Nighlight mode provides reduced light output at 2000K color temperature for very
soft illumination at night.
TO TuRN ON THE MAIN LIgHT
1. Turn on the light switch to activate the light fixture.
TO CHANgE TO NIgHTLIgHT MODE WITH REDuCED LIgHT OuTPuT
FROM THE TRIM RINg
1. Switch the main light off and back on again in 3 seconds to active nightlight
mode.
NOTE: The main light will not provide light output when the nightlight trim is
illuminated.
TO RETuRN TO THE MAIN LIgHT WITH FuLL LIgHT OuTPuT WHEN IN
NIgHTLIgHT MODE
Toggle the switch off and back on to active.
UsE ANd CARE GUIdE

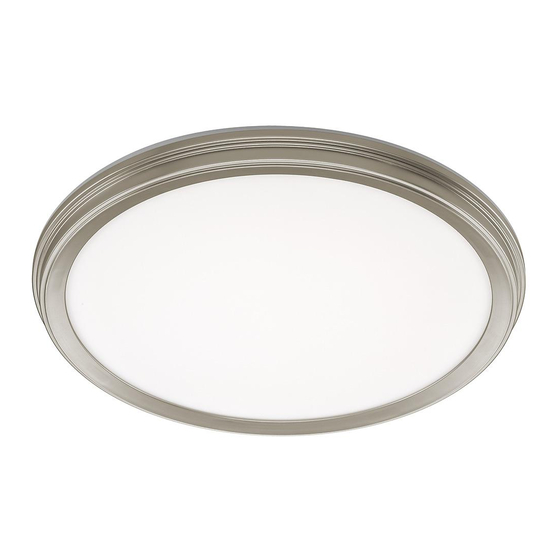

LEd COLOR ChANGING FLUshMOUNT WITh NIGhT LIGhT
1
1
harDware IncLuDeD
A
Part Description
AA Wire Connector
BB Mounting Screw
B
AA
steP 1.
Item # 1004416970, 1004416973
Model # 56546101, 56549101
Quantity
2
2
BB
steP 2.
BB
AA
A
A
B
steP 3.
A
3000K
4000K
5000K
A
B
