- Page 1 Quick Start Guide...
-
Page 2: Table Of Contents
..........................12 Remove Base Plate....................... 13 7.1.1.1 Reset Tray Position....................... 13 7.1.1.2 7.1.1.3 Calibrate cara Scan 4.0....................13 7.1.1.4 Basic Mode Acquisition....................15 Scanner Basics (Commonly Used Icons) Beginning a Scan Pala Tray Impression Scanning................... 19 Model & Bite Rim Scanning....................21 Duplicate Denture Scanning....................23... -
Page 3: Scope Of Applicability

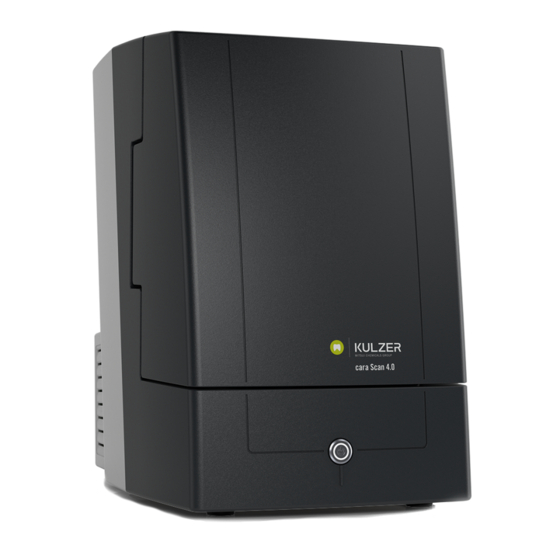

Scope of applicability General cara Scan 4.0 is a dental device (USA: medical device) built by Kulzer GmbH, Leipziger Straße 2, 63450 Hanau (Germany). This Quick Start Guide applies to: Order-No Type Features Date 66078597 cara Scan 4.0 2018-01 EU statement of conformity We, Kulzer GmbH, herewith declare that above mentioned device fulfills the basic safety requirements of mentioned standards, regulations and directives. -
Page 4: Instruction On Using The Unit Safely
CAUTION Prior to operation read the cara Scan 4.0 Operating Manual carefully, adhere to the information provided in order to avoid errors and damage, in particular damage to the health. -
Page 5: Use In Accordance With Specifications
American countries. Customer is obliged to ensure proper protective earth supply in electrical installation. Specification for cara Scan 4.0: 230 V mains socket (3 prong only; phase-neutral ground); separate fuse 16 A, slow blow. If not observed risk of electrical shock and serious harm of operator or third parties cannot be fully avoided. -
Page 6: Scope Of Delivery/Consumables Set
Check that all components are in perfect condition on delivery of the machine. If you wish to make a complaint, contact your supplier. Scope of delivery A) cara Scan 4.0 and cara CAD (1x) B) Accessory kit (1x) Accessory kit comprising of A) Blu Tack®... -
Page 7: Structure And Function
Control elements 1. Protection cover 2. On/Off switch button 3. Mains AC switch 4. Fuses 5. AC Socket 6. Antenna Port 7. USB 3.0 Ports 8. DVI-I Port 9. Base plate 10. Base plate retention screws © 201 9 Kulzer, LLC... -
Page 8: Location And Installation
Location and Installation Unpacking The cara Scan 4.0 is shipped inside a cardboard box. 1. Open the upper side of the cardboard box at the position where the clamps are present. 2. Remove first the Accessory kit and afterwards the inner protective parts both on the right as well as on the left side. -
Page 9: Hardware Setup
The scanner needs to be positioned with easy accessibility to access the main socket and disconnection from mains is possible, if needed. · Do not initialize the scanner prior to acclimatization. · Do not put the device in operation while the dust cover is in place. © 201 9 Kulzer, LLC... - Page 10 (The monitor mains connecting cable is not provided in the package). CAUTION · Do not use any type of extension cord. Do not use intermediate mobile multiple plugs. Do not connect the device to any type of emergency backup generator. © 201 9 Kulzer, LLC...
- Page 11 5. Connect the Wi-Fi Antenna. NOTE · If additional hardware is installed it could cause malfunctions to the system. Do not install additional hardware if not authorized by Kulzer service agents or by personnel adequately trained by Kulzer GmbH. © 201 9 Kulzer, LLC...
-
Page 12: Operations
Putting into operation CAUTION · Do not operate scanner with dust cover! 1. Turn on the rear mains AC switch. 2. Turn on the scanner using the front operating On/Off button. © 201 9 Kulzer, LLC... -
Page 13: Installation Testing
After a few seconds, the projector should light up the rotary table with a cara Scan 4.0 warm up sequence: When the warm up sequence is finished the scanner will be in idle mode ready for the operations. The PC monitor will show the standard Windows desktop page. -
Page 14: Remove Base Plate
To do so, click on the icon on the scanner toolbar 7.1.1.3 Calibrate cara Scan 4.0 a. Once your tray position is reset, calibrate your scanner. b. To calibrate, first insert your calibration plate into the scanner. Make sure there is a good magnetic connection and the calibration plate is secure. - Page 15 Once calibration is completed, you are ready to begin scanning *Important Note: Anytime you move your scanner from one location to the next, you should calibrate your scanner before you resume scanning © 201 9 Kulzer, LLC...
-
Page 16: 7.1.1.4 Basic Mode Acquisition
2. Insert the working plate in the scanner, align the flat side of the working plate with the base plate one. In this way the incisors are to the back of the scanner. 3. Close the front door. 4. Double click on the cara Scan icon in the desktop © 201 9 Kulzer, LLC... - Page 17 As soon as scanning cycle has been started, the front door needs to stay closed all the time. In case door needs to be opened scanning process will be stopped and all data will be lost. © 201 9 Kulzer, LLC...
-
Page 18: Scanner Basics (Commonly Used Icons)
Use the Edit Shape icon to open up the sculpt shape menu to manipulate/edit scanned files to add/remove distortions, unnecessary bumps or data, fill unnecessary indentations in the scanned object Sculpt Shape – Add: Lets you add data to a scan (i.e. fill unnecessary divots or indentations in your scan) © 201 9 Kulzer, LLC... - Page 19 Sculpt Shape – Smooth: Lets you smooth/repair surface areas of your scan that you don’t want present on your model Sculpt Shape – Free Form: Free form lets you manipulate existing data (does not add or remove) © 201 9 Kulzer, LLC...
-
Page 20: Beginning A Scan
9. Beginning a Scan – cara Scan 4.0 is intended to scan models and bite rims, impressions taken with the Pala Tray System, and existing dentures (for copy dentures). a. Place the model that you want to scan on the scanning plate using Blu Tack adhesive (included in accessory kit) or modeling clay b. - Page 21 7. Select “Export” in the upper left corner. -Save your lower impression in your desired location. Make sure you identify the file as “lower.” 8. Delete the current scan by right clicking on the scan => select all => Trash Can © 201 9 Kulzer, LLC...
-
Page 22: Model & Bite Rim Scanning
4. On the pop-up window select “Model”. a. Leave all settings (options) as default other mm height. b. Change to -35mm and press “Scan”. 5. After initial scan, press the white arrow with purple outline and scan will finalize. © 201 9 Kulzer, LLC... - Page 23 7. Select “Export” in the upper left corner. -Save your upper impression in your desired location. Make sure you identify the file as “Upper.” 8. Delete the current scan by right clicking on the scan => select all => Trash Can © 201 9 Kulzer, LLC...
-
Page 24: Duplicate Denture Scanning
7. Select “Export” in the upper left corner. -Save you upper impression in your desired location. Make sure you identify the file as “Upper.” 8. Delete the current scan by right clicking on the scan => select all => Trash Can © 201 9 Kulzer, LLC... - Page 25 7. Select “Export” in the upper left corner. -Save your lower impression in your desired location. Make sure you identify the file as “lower.” 8. Delete the current scan by right clicking on the scan => select all => Trash Can © 201 9 Kulzer, LLC...
-
Page 26: Putting Out Of Operation
Cover the scanner with the enclosed dust cover to prevent accumulation of dust inside. System configuration Every time cara Scan 4.0 application is started, a check is performed in order to verify the software and hardware settings. If an error is detected, the dialog box of the Configuration Control Panel will be shown. - Page 27 FACTORY DEFAULT button: reload the default cara Scan 4.0 calibration file. · REFRESH button: update the configuration status. · DISABLE SCANNER: the cara Scan 4.0 application is started but the acquisition commands are disabled. · EXIT: exit from cara Scan 4.0 application.
