Summary of Contents for Kulzer PALA Palamat elite

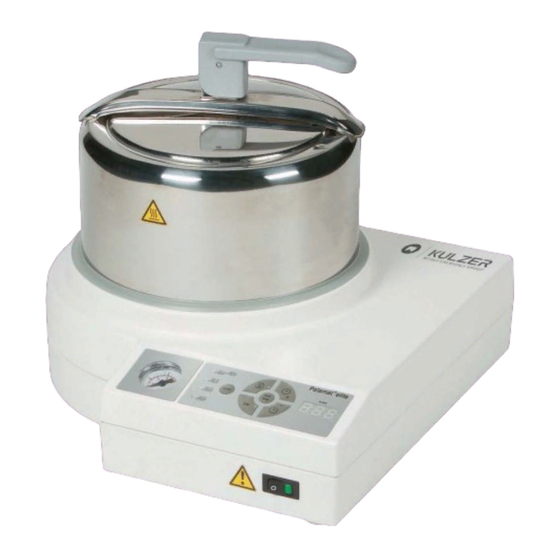

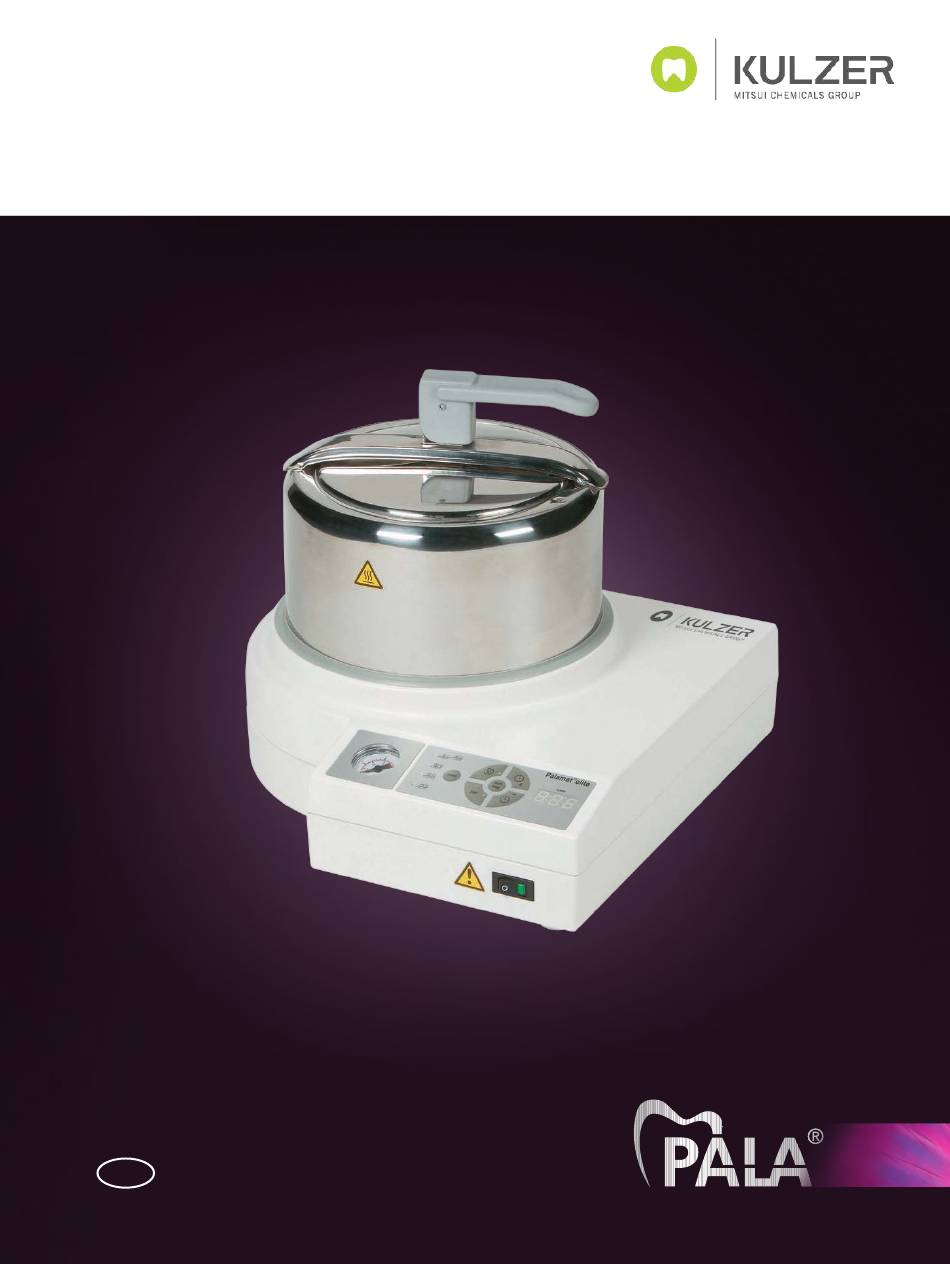

- Page 1 Palamat elite ® Operating Instruction...
-
Page 2: Table Of Contents
Operating Instructions Polymerization unit for hot- and cold-curing resins Table of contents Scope of validity ............................2 General ................................2 Designation and type of the unit ......................... 2 EC – Declaration of Conformity ..........................2 Information on safe operation ......................... 3 Explanation of symbols ............................ -
Page 3: Scope Of Validity
2012-04-ff EC – Declaration of Conformity We, Kulzer GmbH, hereby declare that the design, structure and version introduced to the market of the unit described below correspond to the relevant safety and health requirements of the EU Directive. This declaration shall become invalid in the event of an alteration made to the unit without our prior... -
Page 4: Information On Safe Operation
The unit is sensitive to shock, because it contains electrical components. Particular care must therefore be taken during transportation as well as storage. The equipment shipped by Kulzer was checked thoroughly prior to shipment. The unit is correctly protected and packed when delivered. -
Page 5: Unit Book
For possible damage coming from a fault / malfunction of the unit due to improper repair, which was not carried out by Kulzer service partners or by personnel trained by us or in cases where original spare / accessory parts were not used during a part replacement, Kulzer GmbH is not liable. -
Page 6: Scope Of Delivery
Operating Instructions Polymerization unit for hot- and cold-curing resins Scope of delivery 1 x unit, mains plug, operating instructions 1 x Compressed air hose, nozzle, hose clip 1 x Covering hood Available as special accessories: 64708308 Maintenance unit for compressed air 66009729 Silicone hose, red 64710526 Flask basket Description of the unit... -
Page 7: Setting Up, Installation And Putting Into Operation
Detailed view – operating panel - 6 - 14) Start / Stop key 11) Heat key 12) Selection key for temperature stage 15) Timer 13) Pressure key 16) Timer plus / minus key Setting up, installation and putting into operation The unit must be placed on a solid, fire-resistant surface (laboratory desk: 500 x 370 x 500 mm) in a way to ensure a safe horizontal position. -
Page 8: Working With The Palamat Elite
Operating Instructions Polymerization unit for hot- and cold-curing resins Working with the Palamat elite Attention! Check the content of the shipping carton and compare with the scope of delivery described in the operating instructions (see chapter 4 scope of delivery). Attention! Prior to operation it must be verified whether the information provided on the type plate correspond with the local power supply data. -
Page 9: Filling With Water
70°C – 100°C Hot polymerization 70°C (158°F) 70°C – 100°C manually automatic preset *) (158°F – 212°F) (Kulzer water bath) (158°F – 212°F) *) The Kulzer water bath features a fixed temperature ramp (see Kulzer materials): ➜ ➜ ➜ 70°C (158°F) residence time 90 min heating up to 100°C (212°F) within 30 min... -
Page 10: Timer Display
The maximum value of pressurization for the pot is 2 bars. The Pressure display (4) provides an additional control option. For hot polymerization processes 100°C (212°F) and Kulzer water bath the compressed air can be switched manually, if needed. -
Page 11: Disposal Of Old Equipment According To Weee
Do not use aggressive cleaning agents (scouring powder, solvents). The unit consists of Makrolon components which may only be cleaned with mild cleaning agents or ethanol (96%). Spare fuses can be purchased from Kulzer or specialized dealers and may be exchanged by the customer. Attention! -
Page 12: Technical Data
Operating Instructions Polymerization unit for hot- and cold-curing resins Technical data Power consumption 650 W Rated voltage / fuse type 100 V, 2 x T8A / 250 V 120 V, 2 x T6.3A / 250 V 230 / 240 V, 2 x T4A / 250 V Nominal frequency 50 / 60 Hz Protective class... - Page 13 Manufactured by: Distributed by: Kulzer Gmbh Kulzer, LLC Leipziger Straße 2 4315 S. Lafayette Blvd. 63450 Hanau, Germany South Bend, IN 46614 info.dent@kulzer-dental.com (800) 431-1785 kulzerUS.com...
Need help?
Do you have a question about the PALA Palamat elite and is the answer not in the manual?
Questions and answers
Air leak developed but not from air hose connection?
An air leak in the Kulzer Palamat Elite, if not from the air hose connection, could be caused by improper lid placement or closure. The lid must be inserted so that the supporting strut fits into the grooves on the pressure pot rim. If this is not done correctly, it may result in an air leak.
