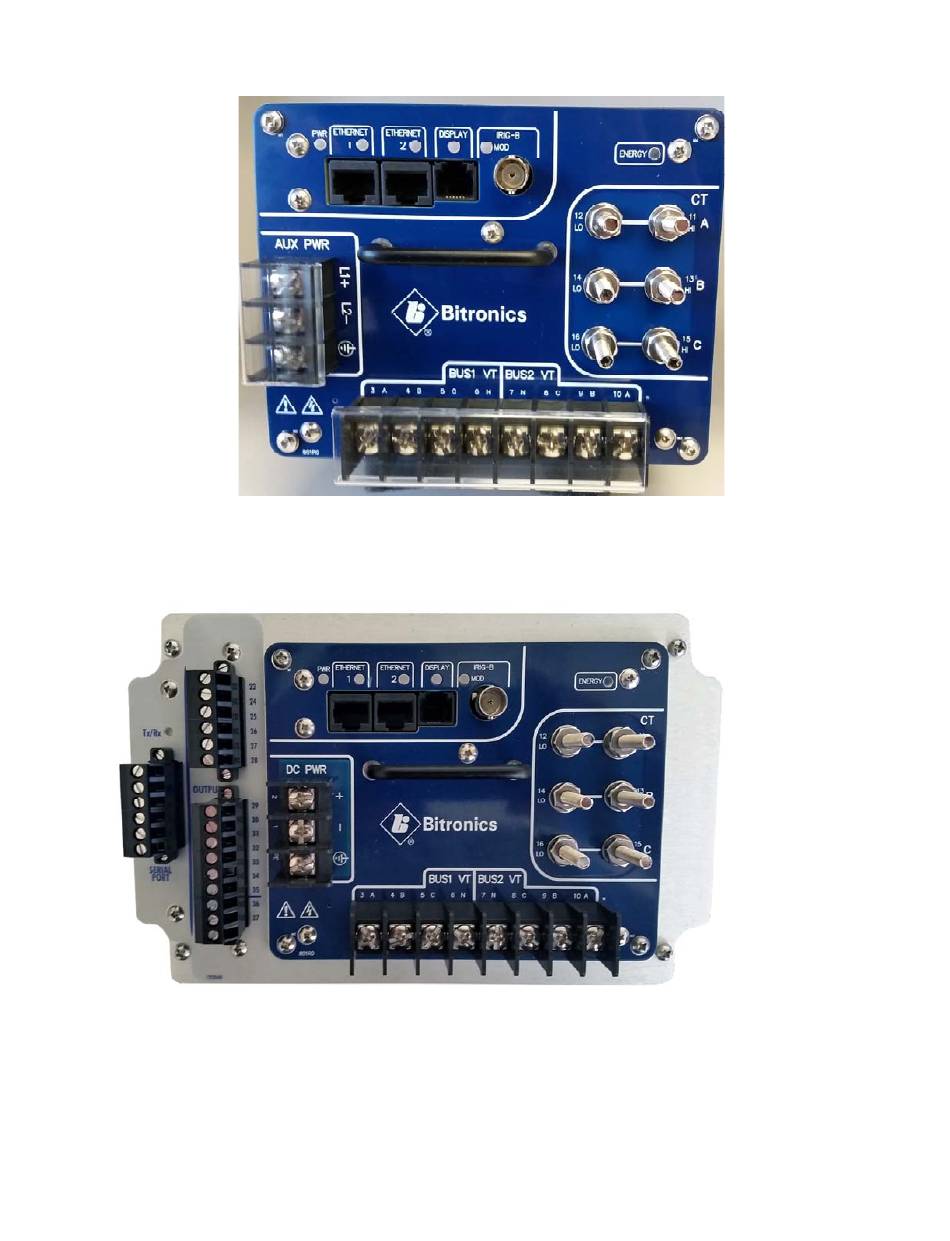

Figure 3B – PPX II Connection View with Options in Standard chassis for
Display port, IRIG-B port, Energy Pulse LED
Figure 3C – PPX II Connection View in extended chassis with Options for
Display port, IRIG-B port, Energy Pulse LED, serial port and digital I/O
28
ML0044B December 1, 2017
Copyright 2016 Bitronics, LLC
