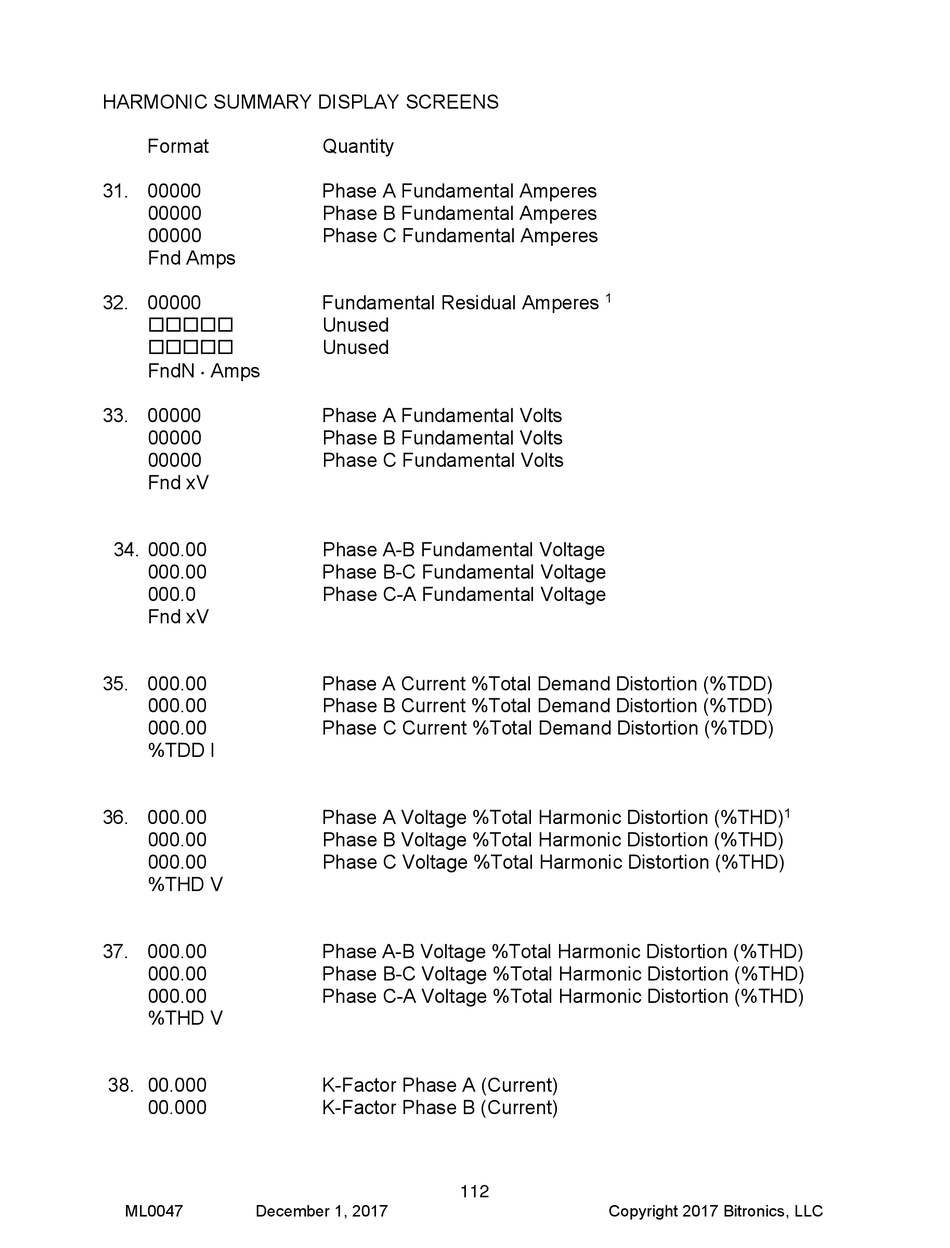

HARMONIC SUMMARY DISPLAY SCREENS
Format
31. 00000
00000
00000
Fnd Amps
32. 00000


FndN  Amps
33. 00000
00000
00000
Fnd xV
34. 000.00
000.00
000.0
Fnd xV
35. 000.00
000.00
000.00
%TDD I
36. 000.00
000.00
000.00
%THD V
37. 000.00
000.00
000.00
%THD V
38. 00.000
00.000
ML0047 December 1, 2017
Quantity
Phase A Fundamental Amperes
Phase B Fundamental Amperes
Phase C Fundamental Amperes
Fundamental Residual Amperes
Unused
Unused
Phase A Fundamental Volts
Phase B Fundamental Volts
Phase C Fundamental Volts
Phase A-B Fundamental Voltage
Phase B-C Fundamental Voltage
Phase C-A Fundamental Voltage
Phase A Current %Total Demand Distortion (%TDD)
Phase B Current %Total Demand Distortion (%TDD)
Phase C Current %Total Demand Distortion (%TDD)
Phase A Voltage %Total Harmonic Distortion (%THD)
Phase B Voltage %Total Harmonic Distortion (%THD)
Phase C Voltage %Total Harmonic Distortion (%THD)
Phase A-B Voltage %Total Harmonic Distortion (%THD)
Phase B-C Voltage %Total Harmonic Distortion (%THD)
Phase C-A Voltage %Total Harmonic Distortion (%THD)
K-Factor Phase A (Current)
K-Factor Phase B (Current)
