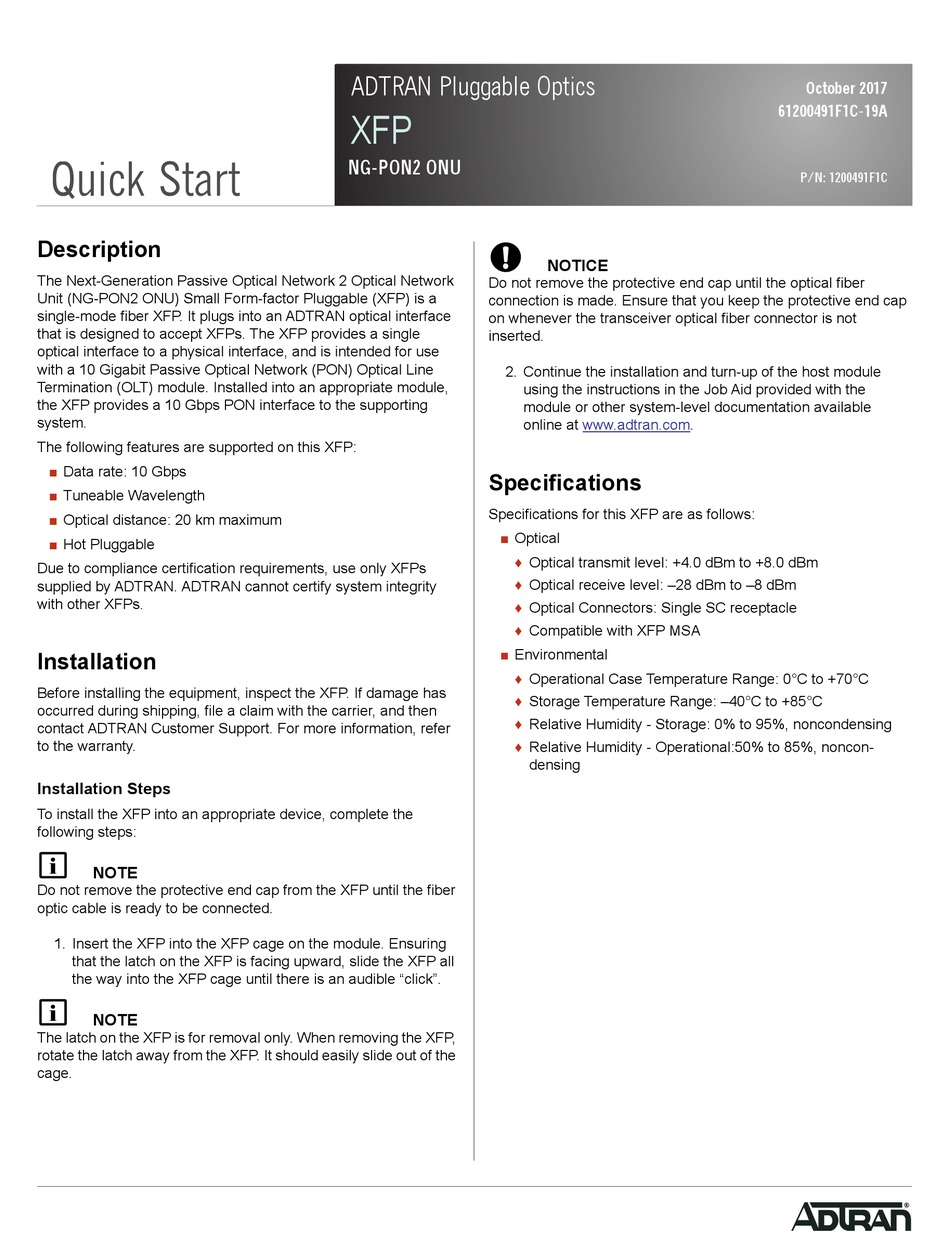

ADTRAN XFP NG-PON2 ONU Quick Start

Quick Start

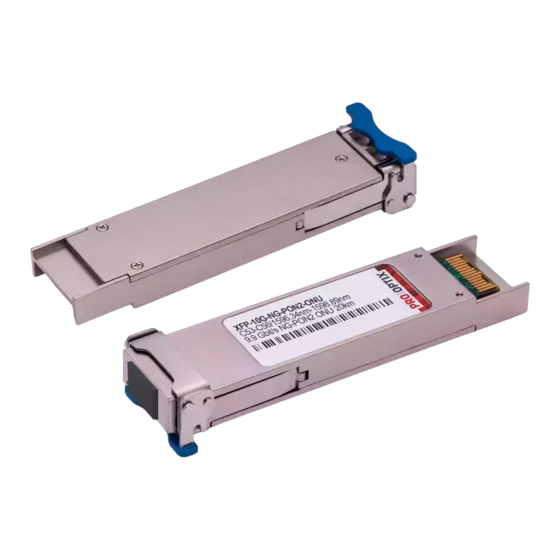

Description
The Next-Generation Passive Optical Network 2 Optical Network
Unit (NG-PON2 ONU) Small Form-factor Pluggable (XFP) is a
single-mode fiber XFP. It plugs into an ADTRAN optical interface
that is designed to accept XFPs. The XFP provides a single
optical interface to a physical interface, and is intended for use
with a 10 Gigabit Passive Optical Network (PON) Optical Line
Termination (OLT) module. Installed into an appropriate module,
the XFP provides a 10 Gbps PON interface to the supporting
system.
The following features are supported on this XFP:
■
Data rate: 10 Gbps
■ Tuneable Wavelength
■ Optical distance: 20 km maximum
■
Hot Pluggable
Due to compliance certification requirements, use only XFPs
supplied by ADTRAN. ADTRAN cannot certify system integrity
with other XFPs.
Installation
Before installing the equipment, inspect the XFP. If damage has
occurred during shipping, file a claim with the carrier, and then
contact ADTRAN Customer Support. For more information, refer
to the warranty.
Installation Steps
To install the XFP into an appropriate device, complete the
following steps:
g
NOTE
Do not remove the protective end cap from the XFP until the fiber
optic cable is ready to be connected.
1. Insert the XFP into the XFP cage on the module. Ensuring
that the latch on the XFP is facing upward, slide the XFP all
the way into the XFP cage until there is an audible "click".
g
NOTE
The latch on the XFP is for removal only. When removing the XFP,
rotate the latch away from the XFP. It should easily slide out of the
cage.
ADTRAN Pluggable Optics
XFP
NG-PON2 ONU
w
Do not remove the protective end cap until the optical fiber
connection is made. Ensure that you keep the protective end cap
on whenever the transceiver optical fiber connector is not
inserted.
2. Continue the installation and turn-up of the host module
using the instructions in the Job Aid provided with the
module or other system-level documentation available
online at www.adtran.com.
Specifications
Specifications for this XFP are as follows:
■
Optical
♦
♦
♦
♦
■ Environmental
♦
♦
♦
♦
NOTICE
Optical transmit level: +4.0 dBm to +8.0 dBm
Optical receive level: –28 dBm to –8 dBm
Optical Connectors: Single SC receptacle
Compatible with XFP MSA
Operational Case Temperature Range: 0°C to +70°C
Storage Temperature Range: –40°C to +85°C
Relative Humidity - Storage: 0% to 95%, noncondensing
Relative Humidity - Operational:50% to 85%, noncon-
densing
October 2017
61200491F1C-19A
P/N: 1200491F1C
