Aqua Medic Reactor 500 Instruction Leaflet

Replace co2 loss in freshwater or saltwater.
Hide thumbs Also See for Reactor 500:
1
2
3
4

Advertisement

Table of Contents

Use this reactor to replace CO
underwater operation only. Read and follow all instructions in this leaflet carefully for best results.

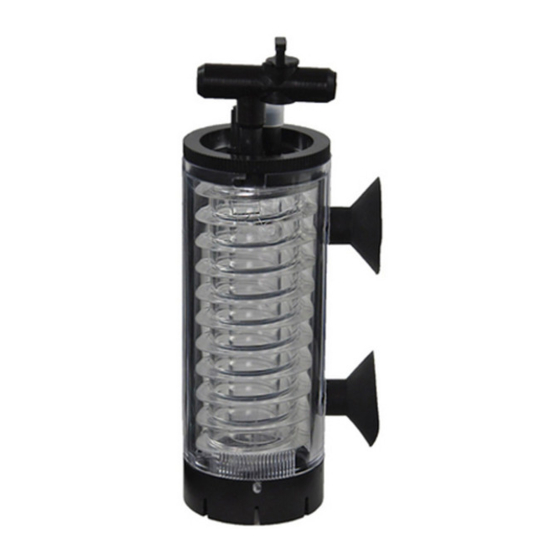

fig 2: reactor
1. CO
- reactor
2
2. flow adjustion valve
3. rubber sucker
4. lid with inner pipe
5. bottom lid
6. spiral tube
7. closing cap
8. water connection
9. CO
connection
2
10. spare port
11. adjudtion valve

technical characteristics

unit
art no:
CO
- connection port:
2
CO
input tube connection
2
water flow
holding system
The unit is designed for aquariums up to 500 l ( 120 gal) and 10°KH (4 mmol alcalinity). It can be
increased with up to 4 enlargements. Each enlagrement will increase the capacity for 300 l (80 gal).
loss in freshwater or saltwater. This reactor has been designed for
2
CO
2
71111
9 mm
6 /4 mm, (1/4")
min 500l/h ( 125 gph),
max 1000 l/h (250 gph)
rubber sucker
<< CO
reactor 500 <<
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reactor 500 and is the answer not in the manual?

Questions and answers

Related Manuals for Aqua Medic Reactor 500

Summary of Contents for Aqua Medic Reactor 500

  • Page 1 << CO reactor 500 << Use this reactor to replace CO loss in freshwater or saltwater. This reactor has been designed for underwater operation only. Read and follow all instructions in this leaflet carefully for best results. fig 2: reactor 1.
  • Page 2 Reactor tube assembly: 1. Attach both suction cups (3) 2. slide output adapter onto water output connection Hint: The adapter can also be attached to the water output connection with a piece of hose to lower the position of th unit in the aquarium. 3.
  • Page 3 reactor adjustment: 1. Turn on the circulation pump to start the water flow. 2. Open the valve of the CO pressure bottle 3. The working pressure gauge of the regular is set to 1.5 bar ( +/- .5 bar) 4. open slowly the needle valve of the regular. 5.
  • Page 4 Enhancing the performance The maximum capacity of the reactor is reached, when the inner tube is completely filled with CO gas and a pH of 7.0 – 7.4 cannot be reached. In this case, the capacity of the reactor can be increased using an additional extension set.
