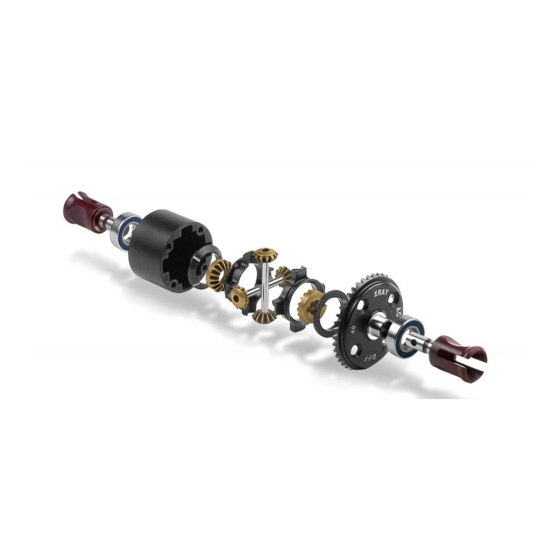

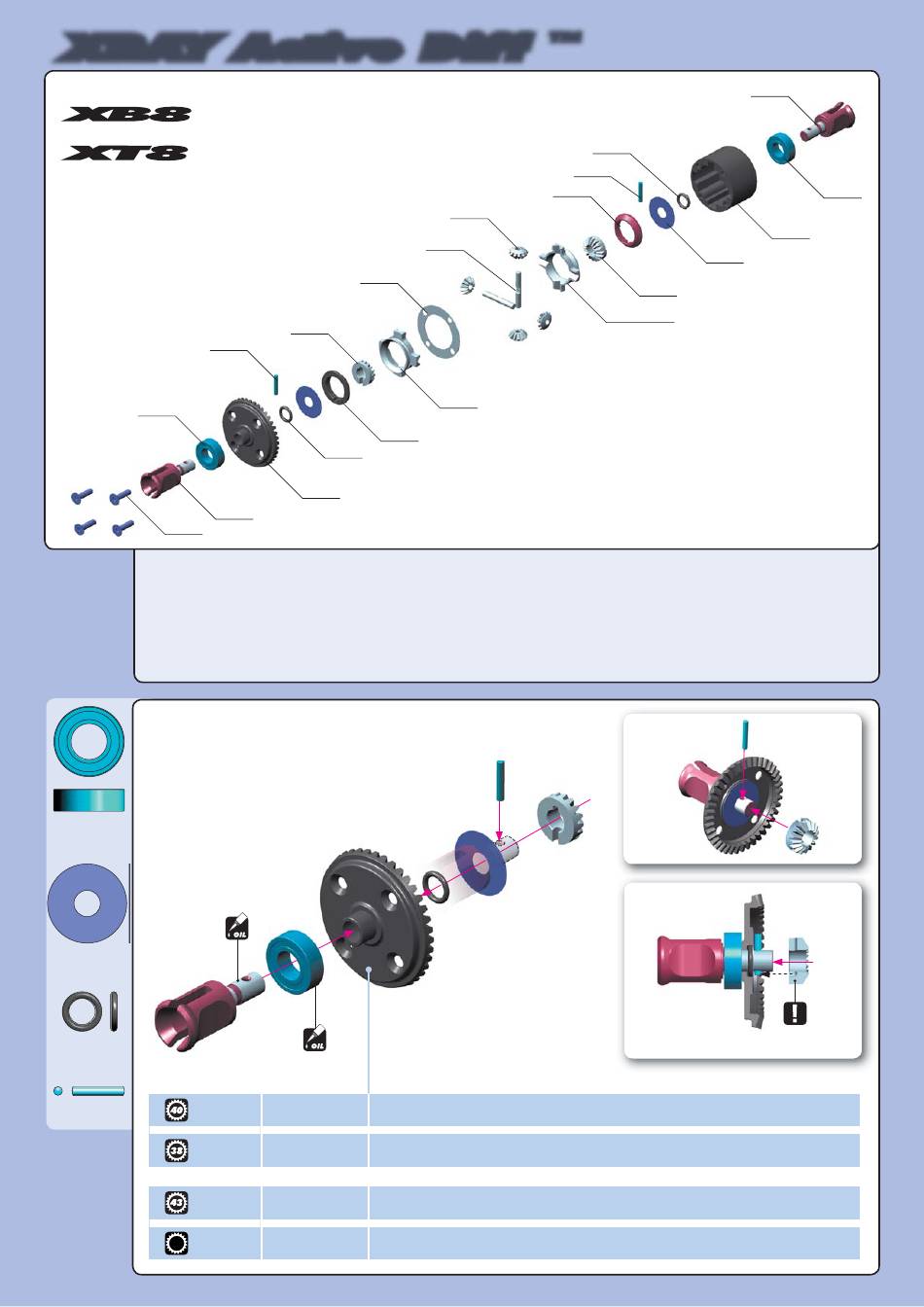

XRAY XB8 ACTIVE DIFF™
35 5101
XRAY XT8 ACTIVE DIFF™
35 5090
DIFF GASKET (4)
35 5120
ACTIVE DIFF CASE
35 5125
ACTIVE DIFF SEGMENT 90° (2)
35 5127
ACTIVE DIFF SEGMENT 120° (2) (OPTION)
35 5130
ACTIVE DIFF STEEL BEVEL & SATELLITE GEARS (2+4)
35 5138
ACTIVE DIFF LARGE BEVEL GEAR 38T (XB8 OPTION)
35 5140
ACTIVE DIFF DIFF LARGE BEVEL GEAR 40T (XB8 STANDARD)
35 5143
ACTIVE DIFF DIFF LARGE BEVEL GEAR 41T (XT8 OPTION)
940816
BB 8x16x5
964060
S 6x18x0.2
971060
O 6x1.5
980213
#355140
P 2x12
#355138
#355143
41
#355141
355180
355090
355130
355125 90°
355127 120°
355195
971060
355140
355138
355143
355141
BEARING OIL
XB8
Standard gear recommended for tracks with good grip.
STANDARD
Optional gear recommended for slippery tracks. Increases stability but introduces slight amount of
XB8
OPTION
on-power understeer.
XT8
Standard gear recommended for tracks with good grip.
STANDARD
Optional gear recommended for slippery tracks. Increases stability but introduces slight amount of
XT8
OPTION
on-power understeer.
TM
TM
971060
980213
355195
355130
355125 90°
355127 120°
35 5143
ACTIVE DIFF DIFF LARGE BEVEL GEAR 43T (XT8 STANDARD)
35 5160
ACTIVE DIFF OUTDRIVE ADAPTER (2) - HUDY SPRING STEEL
35 5180
DIFF PIN (2)
35 5195
ACTIVE DIFF SPUR GEAR COLLAR (2)
90 3310
HEX SCREW SFH M3x10 (10)
94 0816
HIGH-SPEED BALL-BEARING 8x16x5 RUBBER SEALED (2)
96 4060
WASHER S 6x18x0.2 (10)
97 1060
SILICONE O-RING 3x1.5 (10)
98 0213
PIN 2x12 (10)
355160
355120
964060
355130
STEP
DETAIL
STEP
DETAIL
NOTE
ORIENTATION
940816
