XR-3 Base Instrument Operation Manual

Connections

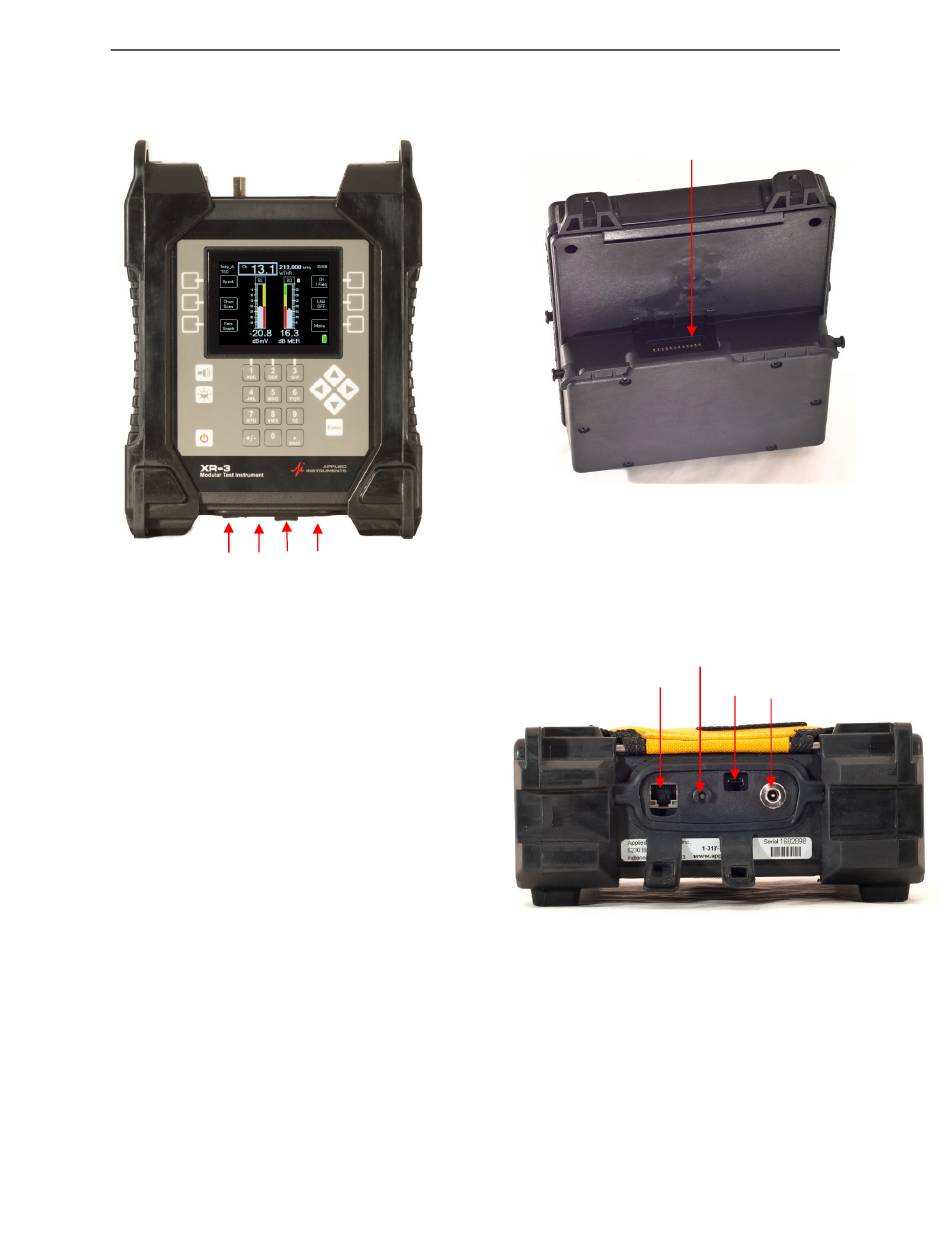

FRONT
1) Charge cord port for battery charger
AC charging via wall outlet (100-240VAC, 50-60 Hz Input and 15VDC output)
DC charging from 12VDC (at least 1 amp) vehicle outlet (cigarette adapter)
2) PC port - USB connection to PC for updating software and transferring files
3) Audible tone (speaker) port
4) Ethernet (option to be offered in future) port
5) Base-to-module connection port
