Stack-On SECURITY PLUS Installation Instructions Manual page 2

FOAM INSTALLATION

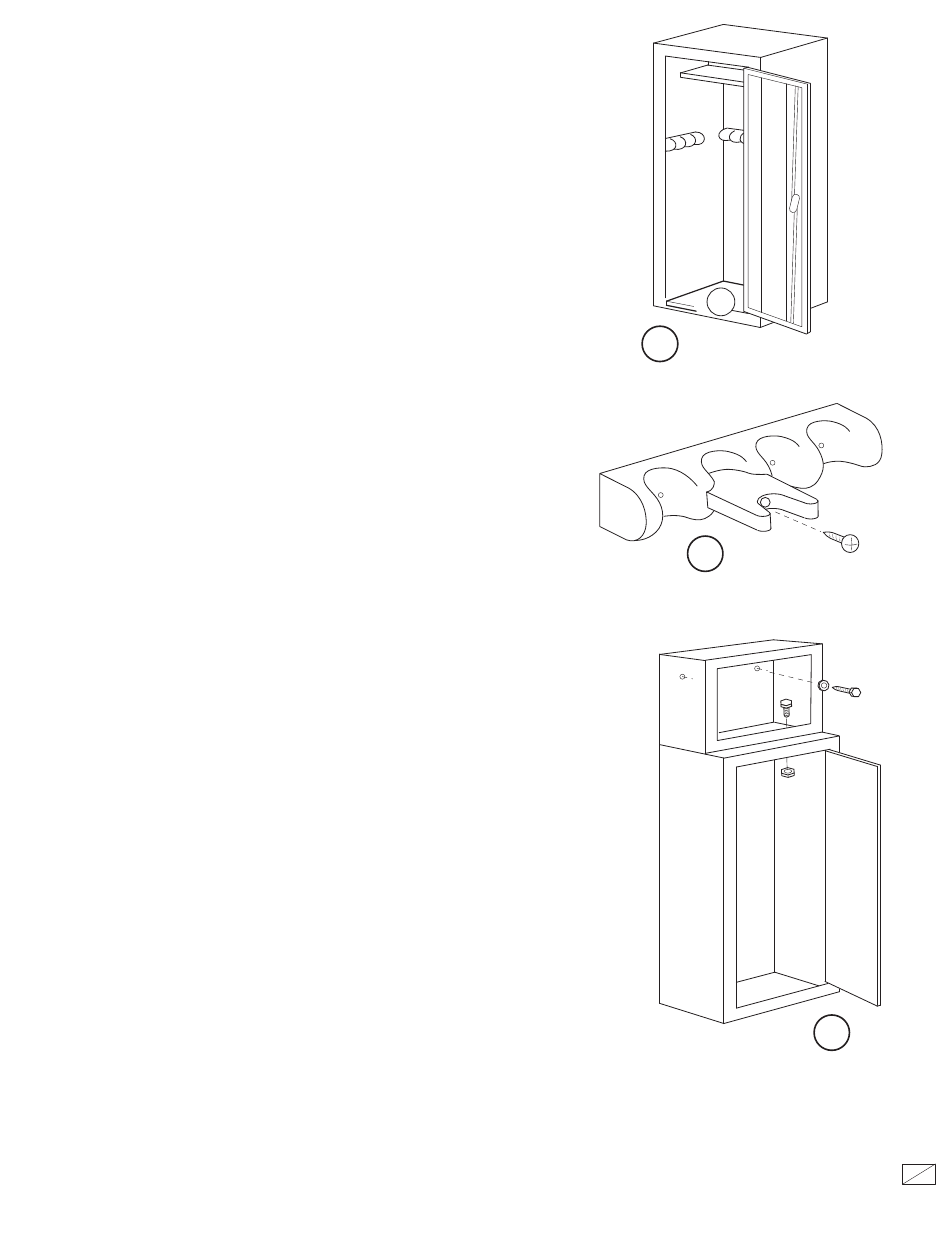

Place the bottom pad (C) in the bottom of the cabinet. (See figure 5)
C
5
INSTALLATION OF SCOPE STAND-OFF
NOTE: The scope stand-off will function properly for many combinations of guns with
scopes.
Screw the scope stand-off into the pilot hole of the barrel rest. (See figure 6)
6
INSTALLATION OF GC-900-5 PISTOL-AMMO CABINET ON TOP OF
SECURITY CABINET
NOTE: We recommend that security cabinet be installed as described above.
IMPORTANT: Install the shelf before mounting the cabinet to a wall.
Remove the top hole plugs from the cabinet by pushing out from the inside of the cabinet.
Place the GC-900-5 on top and assemble with (2) 1/4-20 nuts and bolts. Do not tighten
bolts. (See figure 7)
Drill (4) 3/16" pilot holes into the wall studs and secure the GC-500-5 cabinet to the wall
using (2) lag bolts and washers. (See figure 7)
Tighten the (2) bolts that connect the cabinets.
IMPORTANT
Keep keys away from children. Keep this record of your serial and key
numbers in a secure place separate from your security cabinet. If you
7
lose your keys you will need this information as a reference for obtaining
new keys. To order a replacement key set, follow the instructions on the
attached form.
STACK-ON PRODUCTS COMPANY
P. O. BOX 489
WAUCONDA, IL 60084
2
12
40024-0707
