Summary of Contents for Galanz P180M18ASL-A0

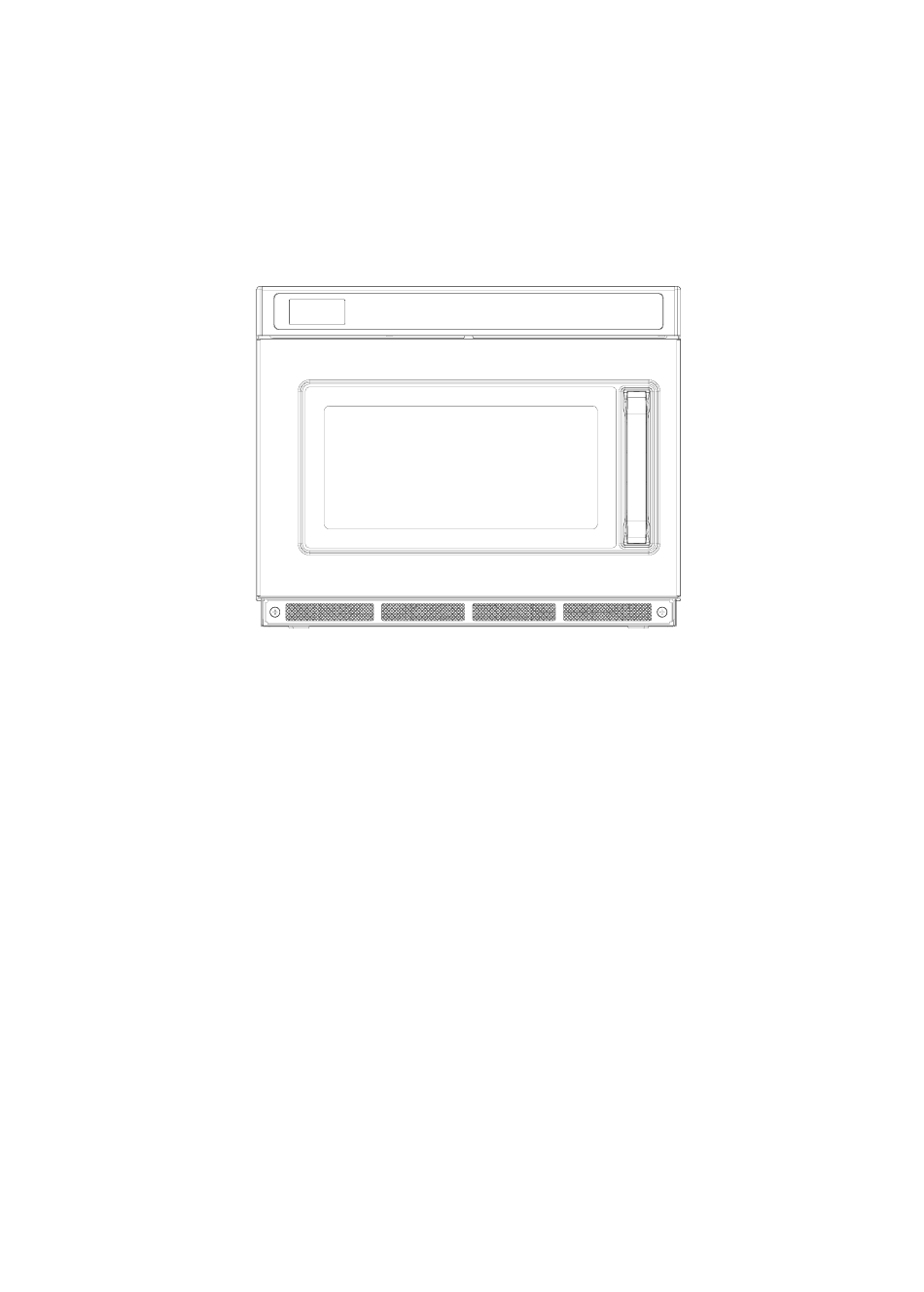

- Page 1 Microwave Oven Instructions Model: P180M18ASL-A0 Please read these instructions carefully before installing and operating the oven.
-
Page 2: Table Of Contents
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY 1. Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS WARNING!--To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy: 1. Read all instructions before using the appliance. 2. Read and follow the specific "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY"... - Page 4 11. Do not heat oil or fat for deep-frying. It is difficult to control the temperature of oil in microwave oven. 12. Do not cover or block any openings on the appliance. 13. Do not store or use this appliance outdoors. Do not use this product near water, for example, near a kitchen sink, in a wet basement, near a swimming pool, or similar locations.
-
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. - Page 6 Specific stacking installation is as follows: a) Remove the 6 screws indicated in the figure below. b) Attach the mounting plate between the two machines and align the corresponding screw holes. c) Install the 6 screws back to their original positions and tighten the screws...
-
Page 7: Cooking Utensils Guide
Cooking Utensils Guide This section lists which utensils can be used in this microwave, which have limited use for short periods, and which should not be used in this microwave. RECOMMENDED Microwave browning dish — Use to brown the exterior of small items such as steaks, chops, or pancakes. -
Page 8: Specifications
Specifications Power Consumption 208-240V/60Hz, 2800W(microwave) Output 1800W Operation Frequency 2450MHz ×16 × 20 Outside Dimensions(H x W x D) Oven Capacity 0.6cu.ft. Net Weight Approx.40.1lbs Product Diagram 1. Door Safety Lock System 2. Oven Window 3. Cavity Floor 4. Control Panel... -
Page 9: Control Panel
Control Panel DISPLAY Press to set power level. Cooking time, power and indicators are displayed. NUMBER PADS (0-9) PROG Use to set time or select menu. , etc. Use to store program, memory lock, lamp STOP ... -
Page 10: Operation Instructions
Operation Instructions When the oven first plugged in, the display shows all for 2 seconds and "DE" beep will sound, then returns to standby mode and display "0". In the process of setting, the system will return to standby mode if there is not any operation within 20 seconds. -
Page 11: Weight Unit Setting
EIGHT UNIT SETTING There are three kind of unit to be selected ("LB", "Kg" and "OZ"). In standby mode, press ABC button repeatedly to select weight unit. Use number buttons to set menu code. Press ENTER button to confirm. Press START button to start. NOTE: Each weight unit corresponds to 300 menus of the total menu, LB (001 to 300), Kg (301 to 600), OZ (601 to 900). - Page 12 Set lamp: In standby mode, press and hold PROG button until the the display shows "PROG", " ", " " and " ". Press and hold number button 2 more than 3 seconds, and repeatedly the operation to cycle select "LA1"and "LA2".
-
Page 13: Auto Cook
standby mode and the display will show "0". Restoring factory settings includes clearing the USB module menu data and restoring the memory settings to the factory settings. UTO COOK The system has 900 auto cook menus to be selected. The default cooking power and time is "P10" and 15 minutes. -
Page 14: Filter Cleaning
cooking time minutes - cooking time seconds. First First First Second Second Second Third Third Third number Section Section Section Section Section Section Section Section Section (0-1000) power power power (0-10) (0-99) (0-99) (0-10) (0-99) (0-99) (0-10) (0-99) (0-99) #0001 #0002 #0003 #0004... -
Page 15: Splatter Shield Exhaust Window Frame Cleaning
PLATTER SHIELD EXHAUST WINDOW FRAME CLEANING Detaching: Hold the two tabs in front of the splatter shield with your hands (as shown by the arrows).Push the tabs following the direction of the arrows and pull downwards after you have pulled in the tabs. -
Page 16: Cleaning And Care
Cleaning and Care 1. Turn off the oven and unplug the power cord from the wall when cleaning. 2. Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. Mild detergents may be used if the oven gets very dirty. Avoid using spray or other harsh cleaners.
