MODEL: P90W23YSL-V9
Microwave Oven
Owner's Manual
Please read these instructions carefully before installing and operating the oven. Keep
them for further reference.
Record in the space below the SERIAL NO. found on the nameplate on your oven and
retain this information for future reference.
SERIAL NO.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P90W23YSL-V9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Galanz P90W23YSL-V9

Summary of Contents for Galanz P90W23YSL-V9

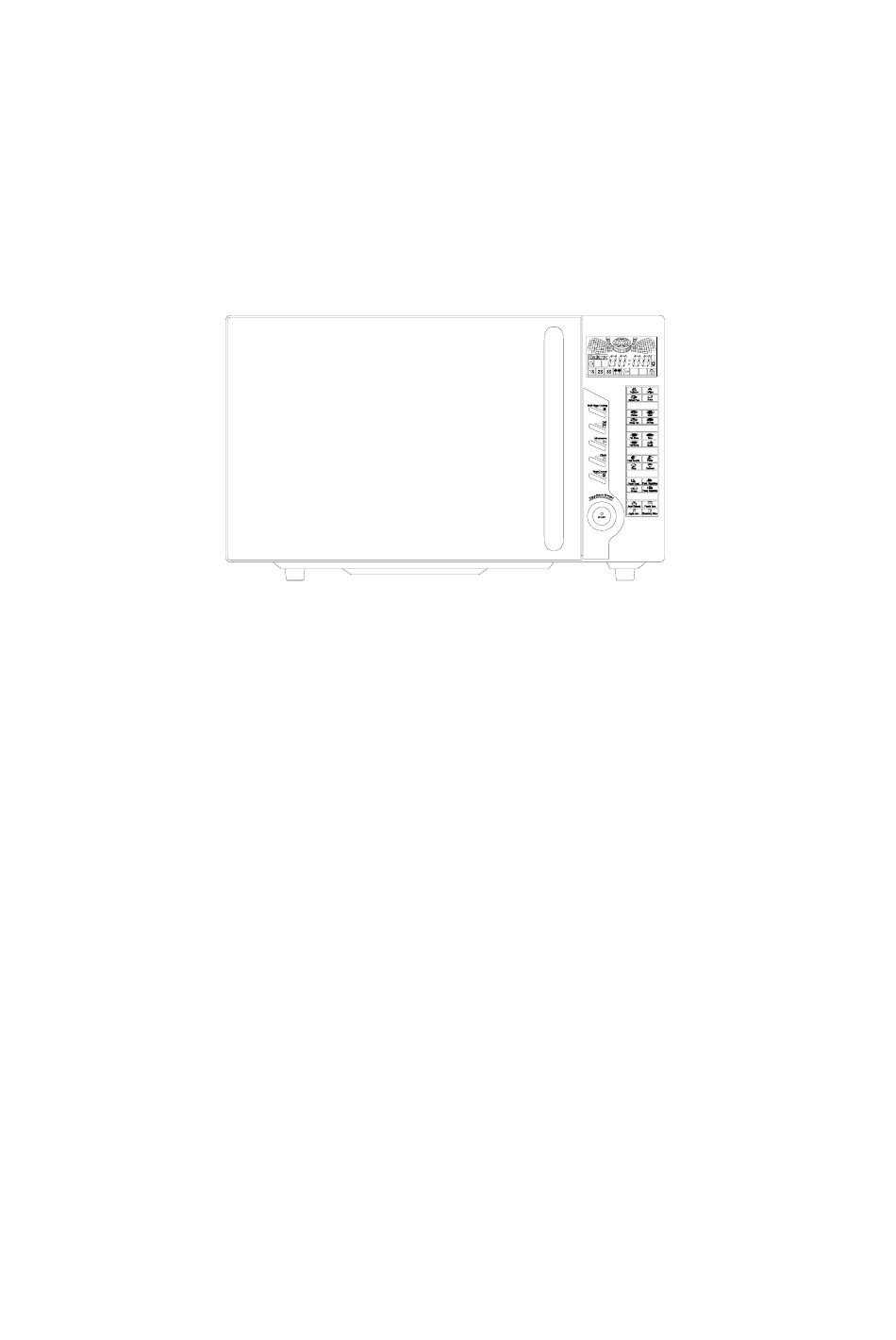

  • Page 1 MODEL: P90W23YSL-V9 Microwave Oven Owner's Manual Please read these instructions carefully before installing and operating the oven. Keep them for further reference. Record in the space below the SERIAL NO. found on the nameplate on your oven and retain this information for future reference.

  • Page 2: Table Of Contents

    PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY Do not attempt to operate this oven with the door open since open-door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS delayed eruptive boiling, therefore care has to be When using electrical appliance basic safety taken when handle the container. precautions should followed, including following: Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin WARNING: To reduce the risk of burns, electric shock, burns.

  • Page 4: Specifications

    SPECIFICATIONS* Power Consumption: 230V, 50Hz, 1400W(Microwave) Rated Microwave Power Output: 900W Operation Frequency: 2450MHz Outside Dimensions: 291mm(H)×506mm(W)×405mm(D) Oven Cavity Dimensions: 219mm(H)×351mm(W)×347mm(D) Oven Capacity: 23Litres Net Weight: Approx.16.5 kg *The above quoted violently subject to change, and verification by the user with data available on the nameplate of the oven.

  • Page 5: Microwave Cooking Principles

    with a grounding plug. It must be plugged into a grounding or electrical instructions, consult wall receptacle that is properly installed and a qualified electrician or service person. grounded. In the event of an electrical short Neither the manufacturer nor the dealer can circuit, grounding reduces risk of electric shock accept any liability for damage to the oven by providing an escape wire for the electric...

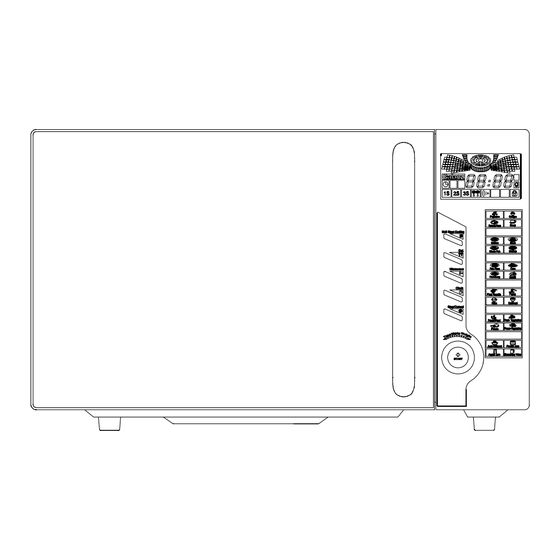

  • Page 6: Part Names

    to pass through the container and heat the Round /oval dishes rather than food. square/oblong ones are recommend, as food in corners tends to overcook. Microwave can not penetrate metal, so metal utensils or dishes with metallic trim Narrow strips of aluminum foil may be used should not be used.

  • Page 7: How To Set The Oven Controls

    MENU ACTION SCREEN Clock, cooking time, and action symbols are displayed. MICROWAVE Used to set a cooking program with microwave power. MULTI STAGE COOKING Used to set a multi-stage cooking program. DEF. Used to set a defrost program. CLOCK Touch to set the oven clock. START Touch to start a program or set quick cook function.

  • Page 8: Setting The Clock

    After plugged on, beep will sound and dynamic display will put on show, under this condition, press any key or turning knob the system will come to waiting mode with digital tube display time digits to be set and so on, if, by any chance, there is no any operation whatsoever, ten minutes later the show of dynamic display will come to a halt and turn to waiting mode.
  • Page 9 and finally press START to begin cooking. Turn Time/Menu/Weight anti-clockwise and then to select menu fish. Press START Turn Time/Menu/Weight to set weight of food. Press START. Auto Cook Code/Menu (more information can be found under the table) Code Food/cooking Notes mode Popcorn...

  • Page 10: Child Lock

    Code Food/cooking Notes mode Peach jam Material: peach: 4 pieces, sugar: 1/2 cup, water: 2 cups. Step 1: wash the peach clean, get off the skin, and cut to appropriate pieces; Step 2: peach, water, sugar put in a heat resistant container and placed in a oven before starting this program.
  • Page 11 Wipe the door and window on both sides, skin of one lemon in a deep microwaveable the door seals and adjacent parts frequently bowl, microwave for 5 minutes. Wipe with a damp cloth to remove any spills or thoroughly and dry with a soft cloth. spatters.
