- Page 1 ICON 35 light & compact Transport Wheelchair User’s manual (EN) ICON 35Bx AP ICON 35Lx AP ICON 35Bx SP ICON 35Lx SP more than mobility Version 06/21 Page 1 of 23 ICON 35 UM EN...
- Page 2 14.1 Ultimate comfort seat & back 14.1.1 Tension adjustment seat straps 14.1.2 Tension adjustment back straps 14.1.3 Overlay seat and back cushion 14.2 Anti-tippers 14.2.1 Anti-tipping device (swing away) 14.2.2 Anti-tipping device (slide up) Version 06/21 Page 2 of 23 ICON 35 UM EN...
-
Page 3: General Information
REHASENSE® continuously develops its products and reserves the right to change specifications and functions of products without notice. The ICON 35 wheelchair is not allowed to be used as a vehicle seating option in moving vehicles (like private cars, buses, trains, metro etc.). For detailed information please refer to the chapter “Transport recommendations”. - Page 4 4. Product’s General Description The ICON 35 wheelchair comes with a variety of features: parking brakes, detachable & height adjustable legrests, detachable & height adjustable armrests (LX version only) and it is equipped with rear main wheels, front turning casters, single cross brace frame.
- Page 5 To unfold: Place both hands on the seat upholstery tubes and press them down (right picture). You should be careful and not put your hand between the tubes and the wheelchair frame when unfolding. Version 06/21 Page 5 of 23 ICON 35 UM EN...
- Page 6 The larger the weight proportion of the User resting on the rear wheels the easier it is to propel. The larger the weight proportion of the User resting on the front wheels the harder it is to propel the wheelchair. Version 06/21 Page 6 of 23 ICON 35 UM EN...
- Page 7 Balance the wheelchair on the rear wheels allowing the front turning wheels to come off the base as much as it is necessary. Drive from of the edge very slowly and carefully lowering the front turning wheels on the base. Version 06/21 Page 7 of 23 ICON 35 UM EN...
- Page 8 Down the stairs: Carrying the wheelchair down the stairs should be done in the same way as carrying it up as described above. Version 06/21 Page 8 of 23 ICON 35 UM EN...
-
Page 9: Cleaning And Disinfection
& metal elements of the wheel (i.e. to apply technical grease). conditions Version 06/21 Page 9 of 23 ICON 35 UM EN... - Page 10 The device must be disposed of in accordance with applicable local and national statutory regulations. Contact your local waste disposal agency or authorized reseller for proper disposal of packaging, metal frame components, plastic and material components. Version 06/21 Page 10 of 23 ICON 35 UM EN...
-
Page 11: Transport And Storage
9. Transport & Storage Transport recommendations The ICON 35 wheelchair is easy to transport. It can be folded and disassembled to reduce size and weight. It is possible to detach the rear wheels and the legrests and to fold the chair's cross frame very easily as was described previously. -
Page 12: Technical Data
Legrest length range 32-45 Legrest angle (° ) 73° Armrest height range 18-25 18-25 Rear wheel " 14" 24" (20", 22") Front wheel " 7" * Standard size = 40cm seat width Version 06/21 Page 12 of 23 ICON 35 UM EN... - Page 13 ICON 35Bx The ICON 35Bx is the basic model of the ICON 35 family. The arm rest height is fixed. It has fixed position for the Attendant Care smaller rear wheels i.e. 14” and many positions for the rear wheel axle large wheels i.e. 20”/22”/24”.
- Page 14 WARNING! All above adjustments can only be done by qualified service or advised by a physical therapist qualified in wheelchair fitting. For detailed instructions contact Rehasense or the Dealer for service questions. Version 06/21 Page 14 of 23 ICON 35 UM EN...
- Page 15 13.1.2. ICON 35Lx The ICON 35Lx is the luxury model of the ICON 35 family. The arm rest height is adjustable and extra long, for better reach when sitting down. It also has a fixed position for the Attendant Care smaller rear wheels i.e. 14” and many positions for the rear wheel axle large wheels i.e.
- Page 16 WARNING! All above adjustments can only be done by qualified service or advised by a physical therapist. For detailed instructions contact Rehasense or the Dealer for service questions. Upholstery Seat & Back settings – ICON 35Lx The Lx is fitted with ergonomic seat &...
- Page 17 Push the bolt axle (1) all the way into the bushing, retighten the bolt (1) and nut (2). • Check that the hub of the wheel is tightened properly without play. Version 06/21 Page 17 of 23 ICON 35 UM EN...
- Page 18 After activating the brakes with brake levers (1) press up the 2 small locking levers (2) located under the brake levers. • To unlock the locked brakes simply pull up both brake levers towards the push handles and then release them. The brakes will unlock themselves. Version 06/21 Page 18 of 23 ICON 35 UM EN...
- Page 19 Set the legrest length by moving the footplate (5) up or down to the desired height (6 positions). • Put the bolt in the corresponding hole and tighten with the nut Version 06/21 Page 19 of 23 ICON 35 UM EN...
- Page 20 • Fold the handle tubes backward. To unfold the push handle tubes: • Pull the handle tubes back then they will lock itself automatically in the original position. Version 06/21 Page 20 of 23 ICON 35 UM EN...
- Page 21 Velcro belts (2) can be moved upward to be fixed on a new hole (3) on the back cane by loosening and retightening the fasteners (4) to get a higher position so that your back can be supported better. Version 06/21 Page 21 of 23 ICON 35 UM EN...
- Page 22 If rotated down. under the wheelchair’s frame, it is inactive. Version 06/21 Page 22 of 23 ICON 35 UM EN...
- Page 23 Then release the locking pin to lock the anti- above the ground. If tip in the selected position. elevated high above the floor, it is inactive. In case of any technical questions contact your local distributor or directly with Rehasense. Distributor: Manufacturer Rehasense® Sp. z o.o. Sulejowska 45G 97-300 Piotrków Trybunalski...
Need help?
Do you have a question about the ICON 35 and is the answer not in the manual?
Questions and answers

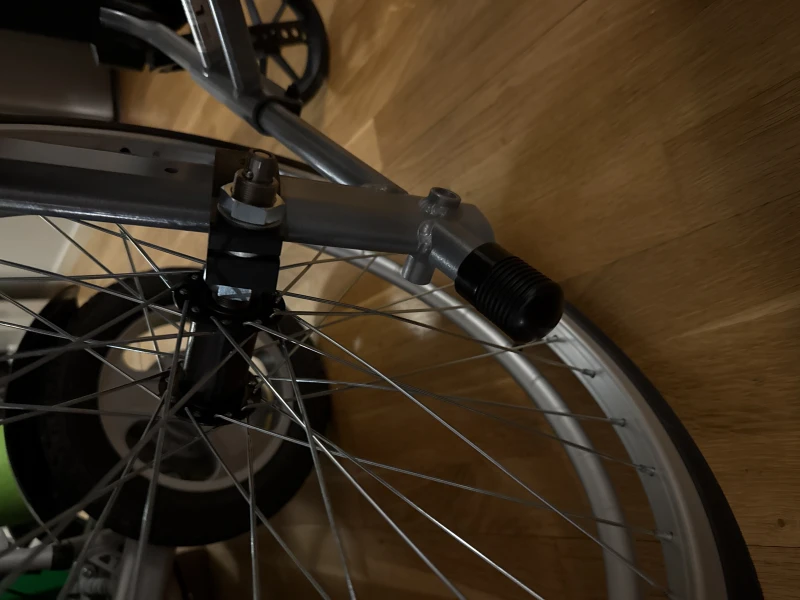

How do you attach the anti tipping wheels on the wheelchair as received directly from delivery?
The anti-tipping wheels on the Rehasense ICON 35 wheelchair should be attached by a specialized service or an experienced therapist. To activate or deactivate the anti-tipping device, pull out the locking pin, slide the anti-tip in the required direction (up or down), and then release the locking pin to lock it in place. The device is active when the small wheels are low, close to the ground, and inactive when elevated high above the floor.
